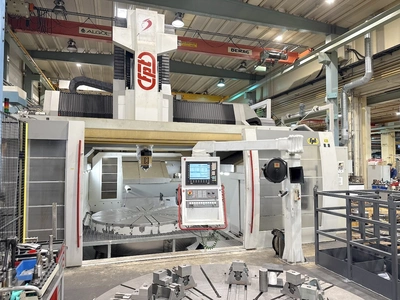

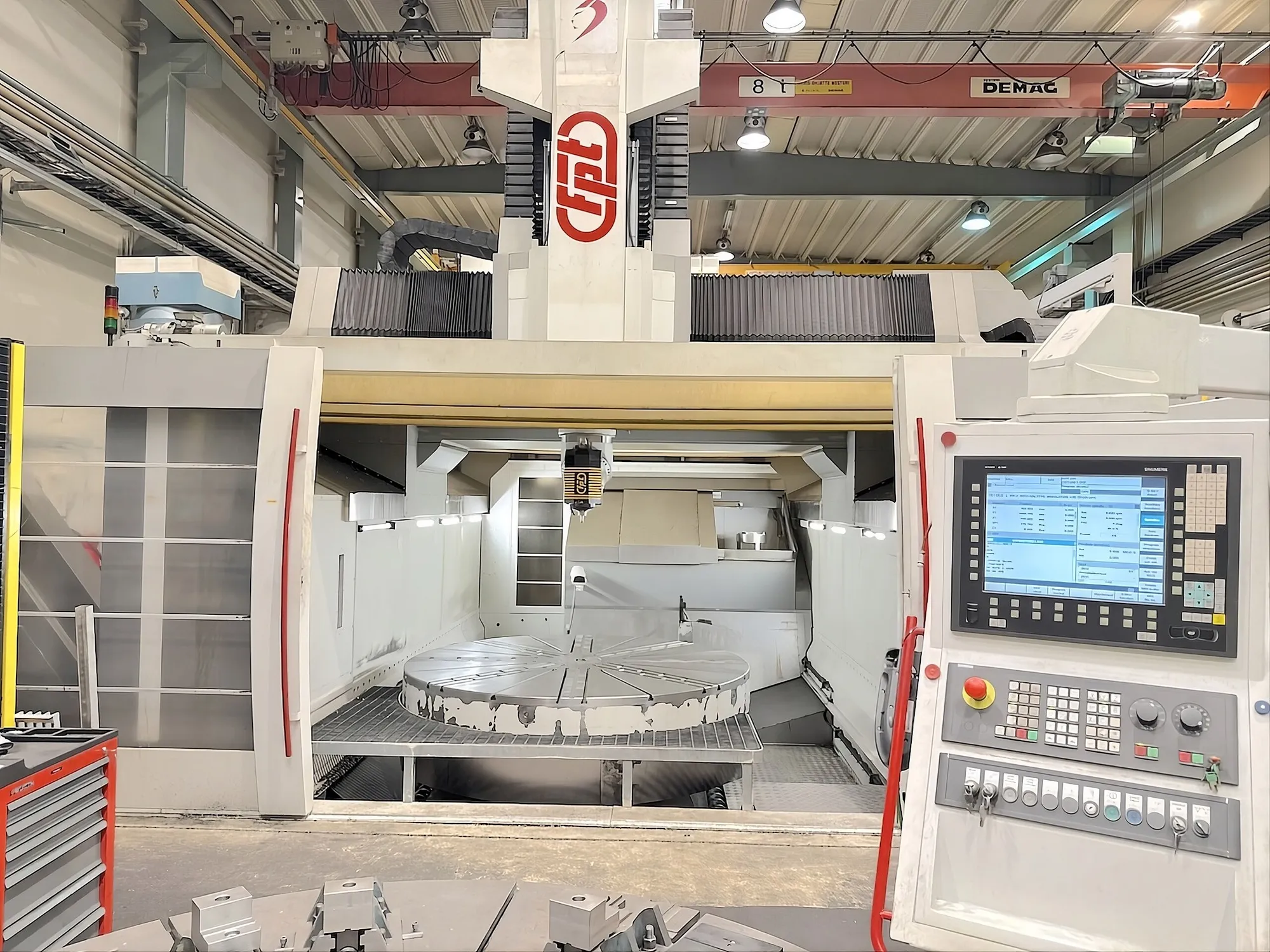

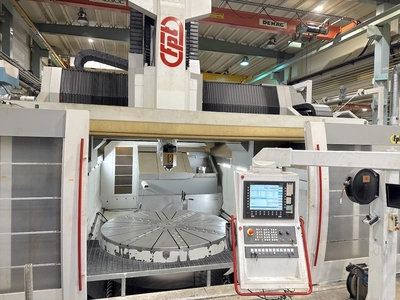

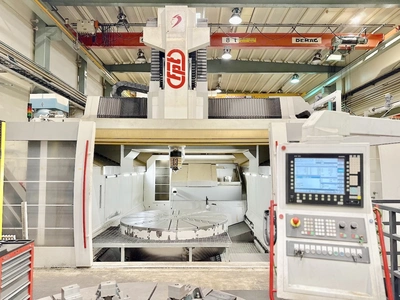

USED FPT DINOMAX2

Longitudinal (X): 4000 mm157,48 in
Vertical RAM (Y): 1300 mm51,18 in
Cross Crossrail (Z): 2700 mm106,30 in

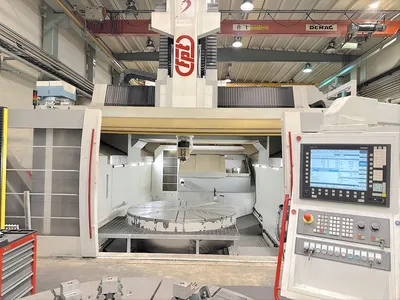

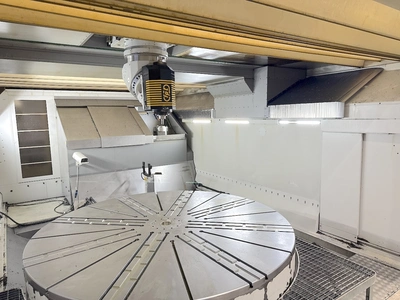

Rotray table (B): turning ø2500 mmturning ø98,43 in
Column distance: 3700 mm145,67 in
Spindle nose - table distance: TULCE (V/H) 1620/1859mm - TVS 1749mm - Turning Head 1979 mmTULCE (V/H) 63,78/73,19mm - TVS 68,86mm - Turning Head 77,91 in
Axes support: Linear Motors

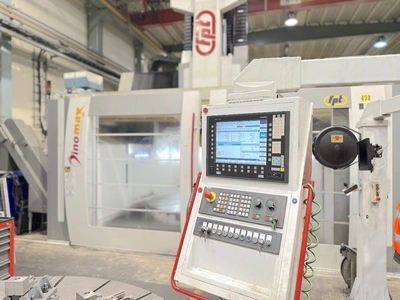

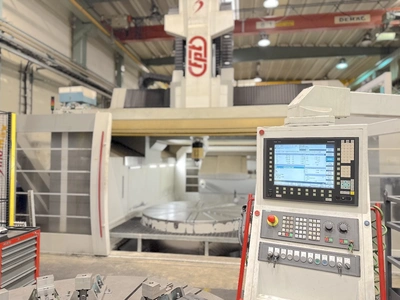

CNC: Siemens 840DHS (DSL)
Notes: AUTOCAL software for automatic calibration / Dynamic RTCP softwar / Tool life management software / Rigid Tapping for each head
Rapid X: 50 m/min1.968,50 ipm
Rapid Y: 50 m/min1.968,50 ipm
Rapid Z: 50 m/min1.968,50 ipm
Rapid B: 80 Rpm
Notes: Accelerazione assi 4 m/sec2

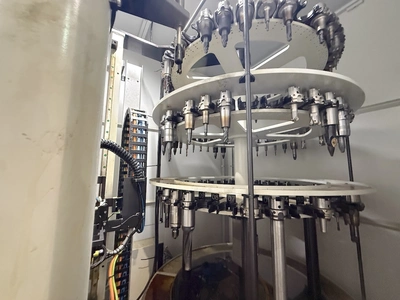

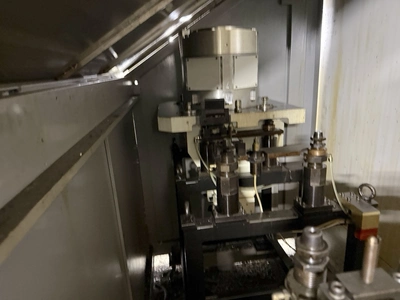

Positions: 120
Max tool diameter: 75 mm2,95 in
Max diam with free adiacent space: 125 mm4,92 in
Max tool lenght: 80x300mm / 40x500 mm3,15x11,81mm / 1,57x19,69 in
Max tool weight: 10 Kg
Tool taper: Milling HSK63 / Turning Capto C6

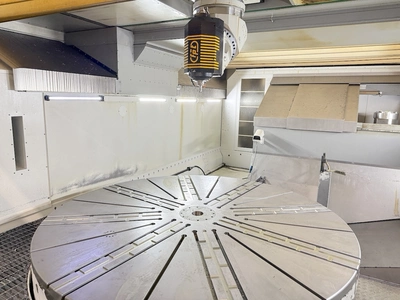

Floorspace (LxWxH): ø2500 mmø98,43 in
Capacity: 8000 Kg

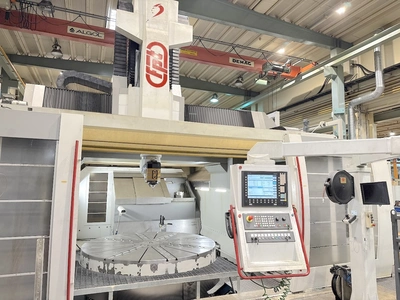

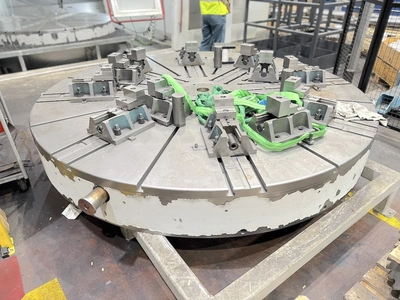

T slots number: Piattaforma 6 griffe ø2500mm
Surface: ø2500xh790mm mmø98,43xh31,10mm in
Accuracy (B axis): 0,0001 °
Capacity: 8000 Kg
Rotating speed: 80 Rpm
Notes: 70Kw

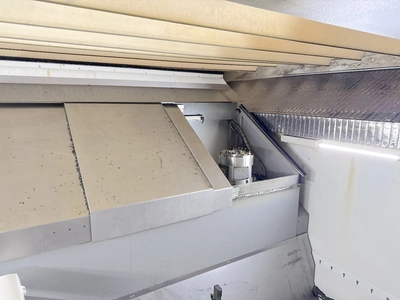

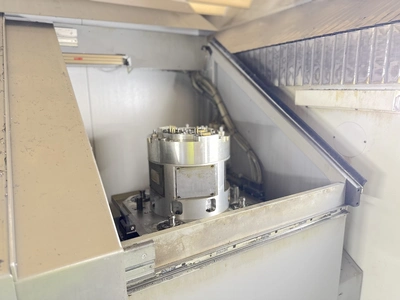

Positions: 3

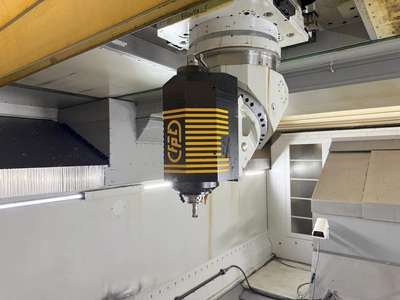

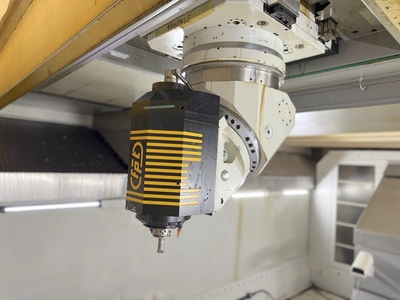

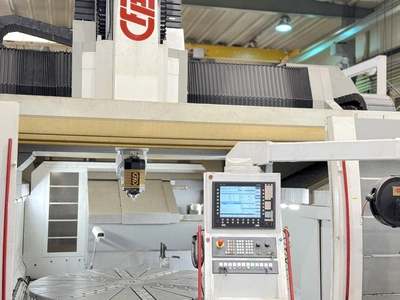

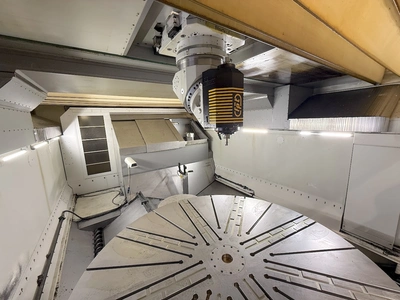

Type: TULCE22
Spindle taper: HSK63
A axis: +/-185 °
C axis: +/-185 °
Max torque: 128 Nm
Max speed: 22000 Rpm
Max power: 33 Kw
Coolant: CTS40 Bar
Notes: undercutting 10° angle - Direct drive indexing full 5 axes

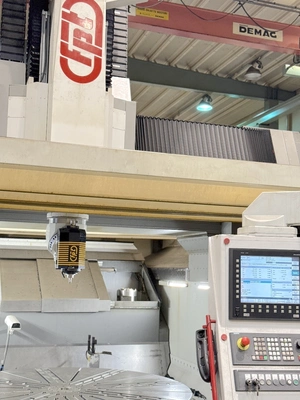

Type: TVS10
Spindle taper: HSK63
Max torque: 210 Nm
Max speed: 10000 Rpm
Max power: 44 Kw
Coolant: CTS40 Bar

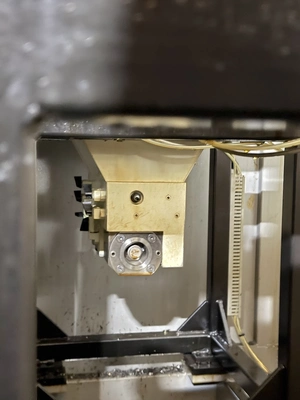

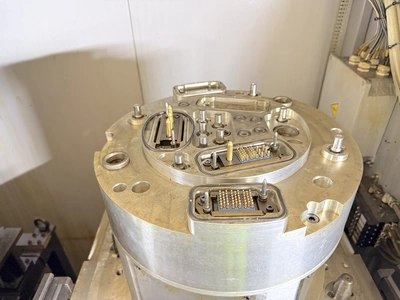

Type: T2C6 - portautensili tornitura
Spindle taper: 2x Capto C6 (horizontal) 1x Capto C8 (Vertical)
Coolant: CTS40 Bar
Total power supply: 150 Kw
Machine total weight: ≈70.000 Kg
Floor space: 7500x6975x5180 (net) mm295,28x274,61x203,94 (net) in

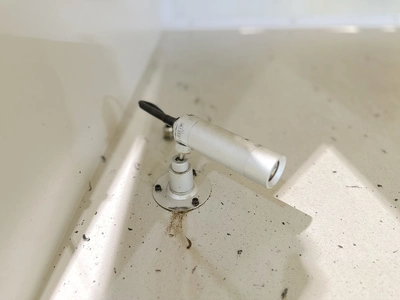

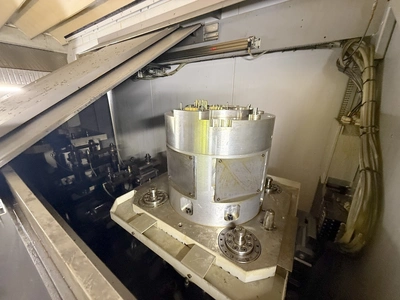

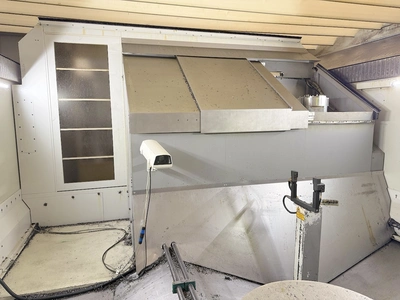

Tooling included: fast clamping system for manual pallet change with second ø2500mm 6 jaws Chuck, 3x internal live cameras
High Pressure: 40Bar CTS / 4Bar external - 28l/min - 1200lt
Workpiece touch probe: M&H touch probe

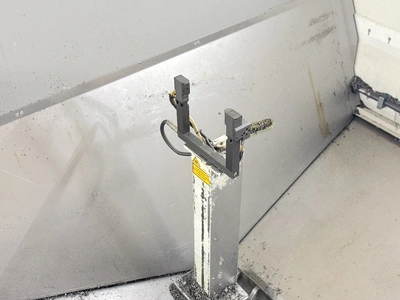

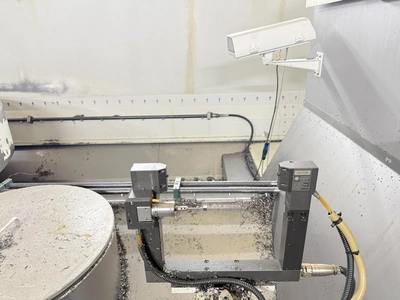

Tool presetter: Laser Probe complete with software for tool brakage and lool lenght/radius measuring

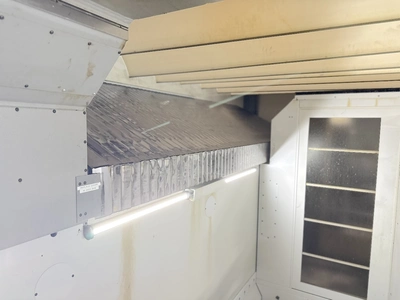

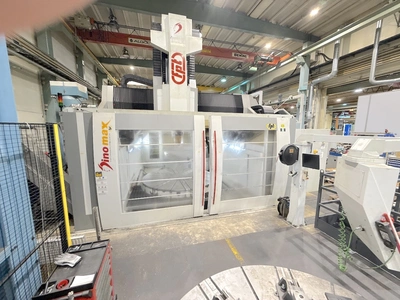

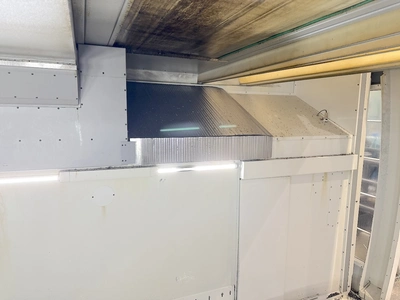

Housing: full cover with folding-type roof cover
Chip conveyor: 1 chip conveyor parallel to Y axis
Mist extractor: Pre-arrangement for fumes extraction
