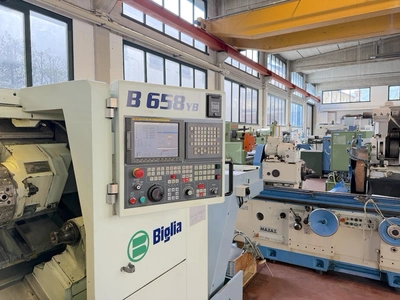

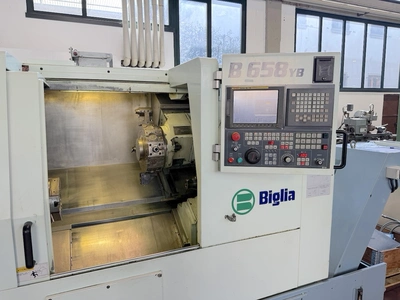

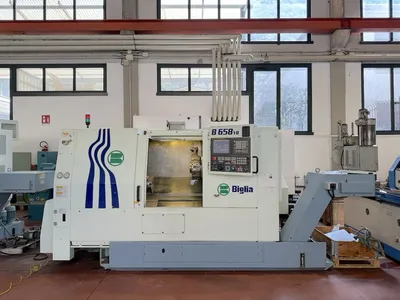

Used BIGLIA B658YB CNC Lathes IT | Gamba Macchine Srl #1282043
Used

USED BIGLIA B658YB

Italy

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Gamba Macchine Srl
202Listings|7Followers
View seller profile
Overview
CNC Lathes
BIGLIAB658YB
Specs

Capacity: ø82/490x670 mm [WORKING CAPACITY]
Max bar working diameter: 82 mm
Max turning diameter: 490 mm
Max working lenght: 670 mm
[CNC]
Notes: Manual Guide, SBS Sforzo utensile

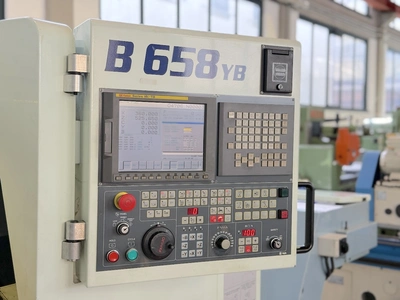

CNC: Fanuc 18i-TB
[MAIN SPINDLE]
Max rotation speed: 3500 rpm
Spindle nose: ASA8"
Spindle hole: 91 mm
Internal bearing diameter: 140 mm
Max power: 22 Kw
Max torque: 539 Nm
Accuracy (C axis): 0,001 °
C axis speed: 100 Rpm
[TAILSTOCK]
Taper: CM5
Axis stroke B: 665 mm
Rapid feed B: 15 m/min

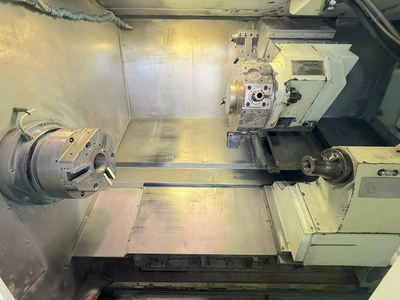

[TURRET 2]
Positions number: 12
Rotation time (1 pos): 0,15 sec.
Number of driven stations: 12
Driven tools speed: 4000 rpm
Driven tools power: 5,5 Kw
Driven tools torque: 70 Nm
Axis stroke X2: 255 mm
Rapid feed X2: 20 m/min
Axis stroke Z2: 670 mm
Rapid feed Z2: 24 m/min
Axis stroke Y2: 110 (+60/-50) mm
Rapid feed Y2: 7,5 m/min
[EXTRA]
Machine total weight: 6300 Kg
Floor space: 4450x1900x2100 mm
Autocentering chuck: SMW Autoblok HFKS-2G-255-72-3
Chip conveyor: Si
Coolant pump: CTS 10Bar
Bar feeder: interfaccia
Mist extractor: interfaccia
