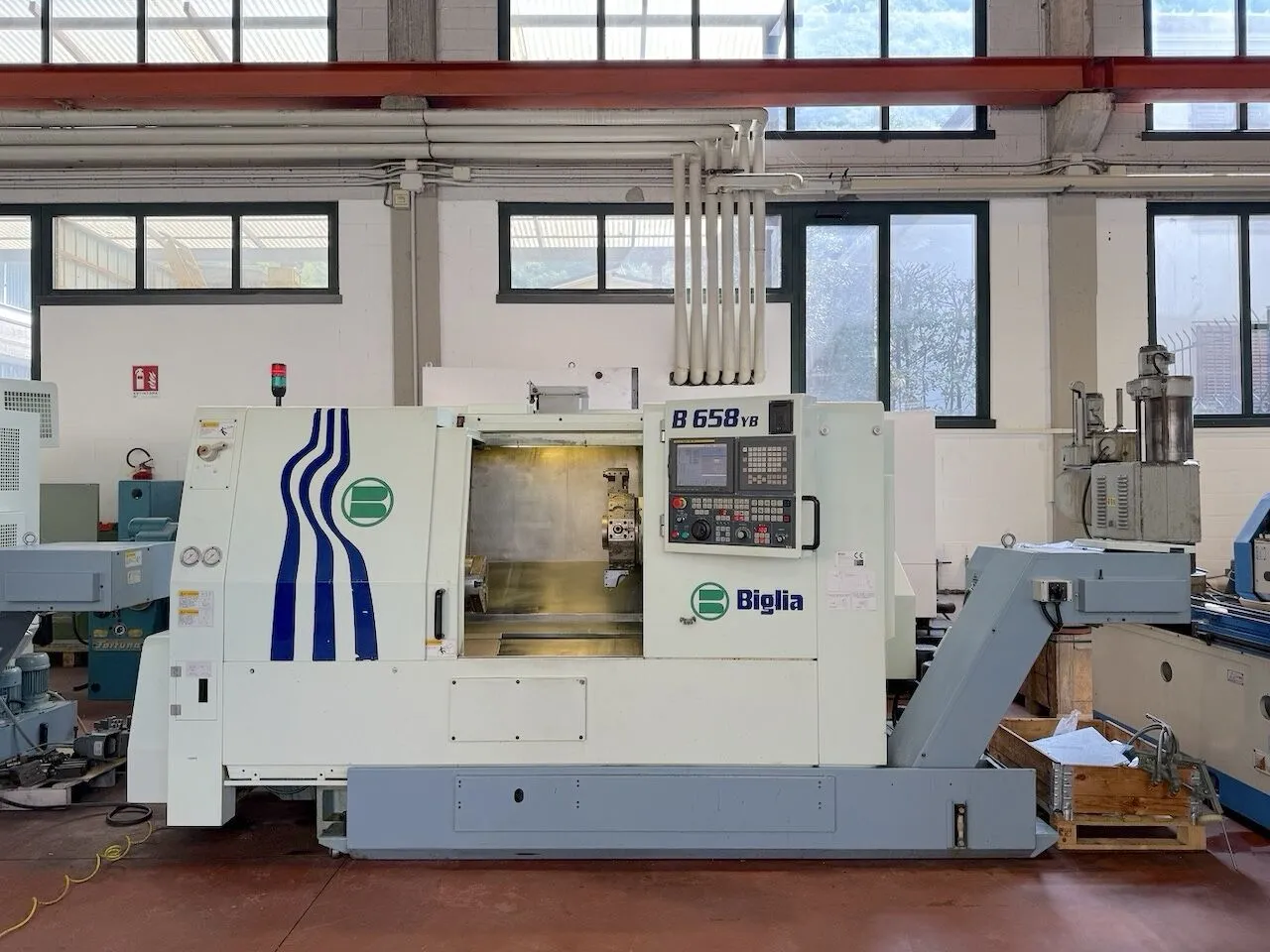

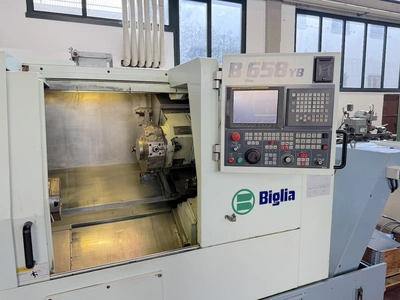

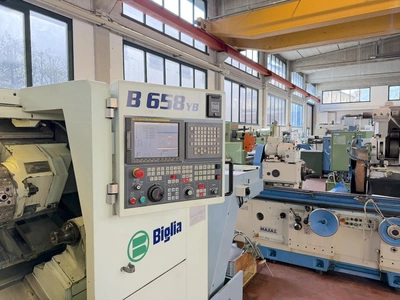

USED BIGLIA B658YB

Capacity: ø82/490x670 mm
[WORKING CAPACITY]
Max bar working diameter: 82 mm
Max turning diameter: 490 mm
Max working lenght: 670 mm
[CNC]
Notes: Manual Guide, SBS Sforzo utensile

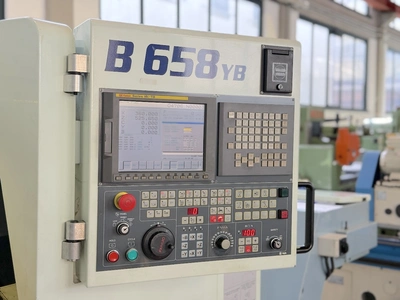

CNC: Fanuc 18i-TB

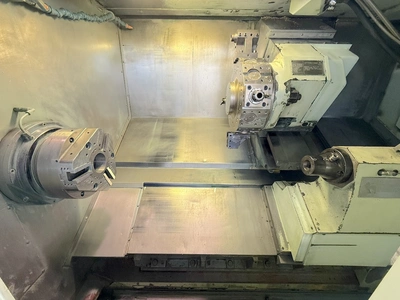

[MAIN SPINDLE]
Max rotation speed: 3500 rpm
Spindle nose: ASA8"
Spindle hole: 91 mm
Internal bearing diameter: 140 mm
Max power: 22 Kw
Max torque: 539 Nm
Accuracy (C axis): 0,001 °
C axis speed: 100 Rpm
[TAILSTOCK]
Taper: CM5
Axis stroke B: 665 mm
Rapid feed B: 15 m/min
[TURRET 2]
Positions number: 12
Rotation time (1 pos): 0,15 sec.
Number of driven stations: 12
Driven tools speed: 4000 rpm
Driven tools power: 5,5 Kw
Driven tools torque: 70 Nm
Axis stroke X2: 255 mm
Rapid feed X2: 20 m/min
Axis stroke Z2: 670 mm
Rapid feed Z2: 24 m/min
Axis stroke Y2: 110 (+60/-50) mm
Rapid feed Y2: 7,5 m/min
[EXTRA]
Machine total weight: 6300 Kg
Floor space: 4450x1900x2100 mm
Autocentering chuck: SMW Autoblok HFKS-2G-255-72-3
Chip conveyor: Si
Coolant pump: CTS 10Bar
Bar feeder: interfaccia
Mist extractor: interfaccia
