GlobePharma’s New SIMPLEBLEND™ - 3 Lab-Scale Blender

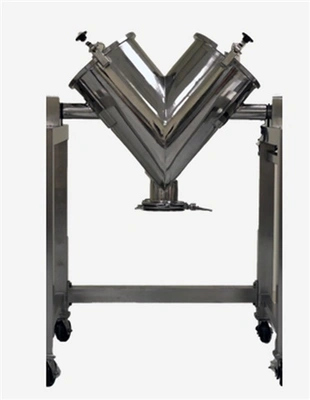

GlobePharma’s New SIMPLEBLEND™ - 3 Lab-Scale Blender is an all stainless steel tumble V-Blender for use with powders.

FEATURES:

All stainless steel construction and on casters

Control box with Touch Screen HMI to set times and start-stop the system.

Direct Drive

Optional intensifier bar drive

Optional high-speed solids intensifier bar

Optional integrated SIFT-N-BLEND™ attachment for eliminating the pre-screening step before blending.

Optional Safety-interlocked guard

Sanitary butterfly valve

Controls:

The advanced controls will display and control:

Vessel Speed (if variable shell speed option is selected)

Vessel run time

Intensifier bar speed (If variable Intensifier bar option is selected)

When the Intensifier bar drive is selected, the operator can pre-set 3 sequential blend segments and the blender can be programmed to stop between segments.

Upon an E-stop interruption or a power failure the system memory will retain the elapsed times of the batch and the operator can decide to complete the run or to start over.

The screen will also indicate:

Any alerts including interruptions, completions, and resets

Specifications

Vessel Working Capacity

3 cu.ft. (86.4 L), Total Volume: 5.31 cu. ft.

Standard Vessel Fixed Speed

20 rpm, 1 hp

Optional Vessel Variable Speed

3-20 RPM

Electical

208 V, 3 phase, 60 Hz, 25 Amps

Vessel Material

316 stainless steel

Vessel Finish

Ra #4 finish outside, Ra #4 - #7 finish inside

cGMP valve material

316L stainless steel (#4 finish on valve body and #7 finish on vane, valve lining is made with FDA-approved platinum-cured silicone rubber)

Vessel Gasket Material

FDA-approved white nitrile rubber

Safety guard material

Aluminum frame, 1/2" acrylic panels

Intensifier Bar Speed

300-1500 RPM

Intensifier bar blade diameter

9.25 inches

Stand drive shaft and caster material

304 stainless steel

Pricing

GlobePharma’s New SIMPLEBLEND™ - 3 Lab-Scale Blender Base Price

CALL  or  Email

Required Safety-interlocked guard, hinged acrylic guard mounted on to the machine frame
(Caution: If the safety guard is not purchased along with the blender, accepting this PO is considered acceptance of the purchaser's responsibility to provide a safety guard or other means of safety for operation of the equipment and GlobePharma is indemnified of any safety related issues)

$4,045

Optional Variable Speed Vessel Drive. (3-20RPM)

$3,450

Optional intensifier Bar Drive, Fixed Speed of 1500 RPM

$9,375

Optional High-Speed Intensifier Bar

$3,395

Optional Variable Speed Intensifier Bar Drive (300-1500 RPM)

$3,450

Optional SIFT-N-BLEND™ (Patent Pending) attachment, made of 316 SS, which includes one perforated screen (Customer to specify 20, 30, 40 or 60 mesh), paddle, screen mounting rods, and plate.

$6,875

Spare screen mounting plate (316 SS)

$1,050

Spare pair of screen mounting rods (316 SS)

$795

Spare paddle (316 SS)

$3,345

Wire mesh screen Only (316 SS, #20, #30, #40, #60 mesh)

$1,625
