Pack Leader Model SL-77 Shrink Sleeve Bander with PDC Heat Tunnel

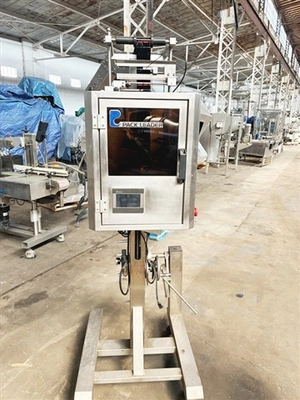

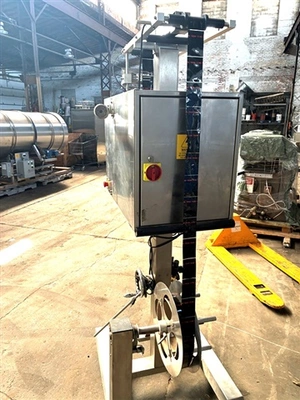

One (1) used Pack Leader Model SL-77 Shrink Sleever/Labeling Machine. This sleever is designed for full body sleeve labeling applications, as well as neck and cap banding, tamper-evident applications.

Pack Leader SL-77 Specifications

Label Type

Full Body Sleeve

Tamper Evident

Speed

Maximum Sleeve Speed: This machine applies shrink sleeve labels at speeds of 40bpm up to 80bpm depending on label size, product spacing, product shape, and line conditions.

Dimensions & Film Dimensions

Machine Dimensions L-W-H:40.6” x 26.6” x 78” (1030mm x 675mm x 1980mm)

Sleeve Length: .87”-5.9” (22mm-150mm)

Range of Container Diameter: 1.18”-3.54” (30mm-90mm)

Range of Container Height: 1.38”-13.78” (35mm-350mm)

Spool Diameter: 15.7” (400mm)

Spool Inner Core: 5”-10” (127mm-254mm)

Film Unwind Plate Diameter: 15.7” (400mm)

Film Thickness: .001”-.003” (.045mm-.08mm)

Power

Voltage: 110/220VAC 50/60HZ 1 Phase 20AMP Dedicated

Power in KW: 1

Cutter Drive:

Pneumatically Driven

Film Dispenser:

Pneumatically Driven

Drive:

Stepper Motor

Bander Complete With

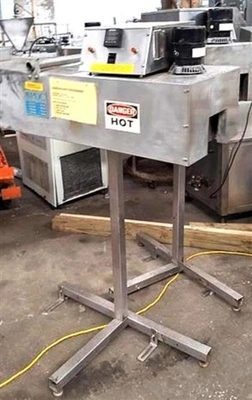

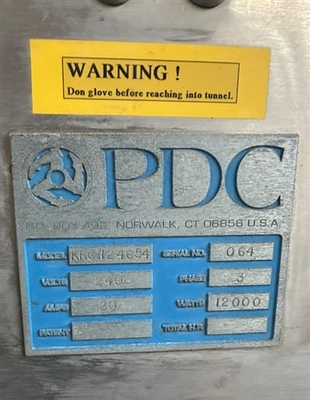

One (1) used PDC Model KRC124654 stainless-steel heat  tunnel mount on adjustable "T" stand.
This unit features hot air convection or radiant infrared heating, designed for optimal energy efficiency through recirculated airflow. Power requirement operates on 240V, 3-phase power, drawing 12,000 watts (12kW).
