Automatic Inline Bottle Capping Machine Model TruCap-X-Cent - New

New

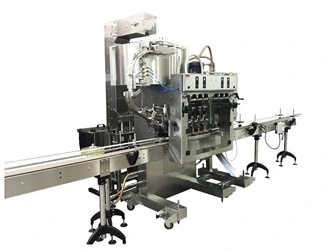

ACASI Model TruCap-X-Cent Inline Bottle Capper with Centrifugal cap feeder

Tightener Features
:
Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
Heavy duty linear carriage system for height adjustability
All shafts and threaded rods manufactured in 304 stainless steel
Heavy duty casters standard
No change of parts needed for a wide range of containers
Front covers with safety interlock switches standard
Top driven to insure no product spillage into drive assembly
Adjustable height to accommodate containers from 1 inch to 14 inches tall (Optional power height adjustment)

Capping discs features
:
4, 6, or 8 spindle machine configurations available, single gear box driven
Independent spring loaded capping discs for better torque and misalignment forgiveness.
Torque is able to be adjusted while the machine is running (When pneumatic clutch option is purchased)
Clutches located away from capping discs to avoid corrosion
Heavy duty gear driven mechanism, no belts used for power transmission
Adjustable speed 1/2 Hp drive motor for bottle capping discs
Optional second drive motor to rotate the first set of capping discs on the opposite direction
Bottle capping head assembly manufactured in 316L stainless steel 95% of manufactured parts are in stainless steel, or FDA approved polymer materials
Independent adjustment for front or back capping discs
Bottle capping disc position is adjustable while the machine is running, without opening the safety covers.
Fully adjustable for caps sizes ranging from 8 mm to 130 mm in diameter

Bottle belts features:
Bottle belt width adjusted via front knobs
Bottle belt height adjusted via front knobs
Heavy duty gear drive mechanism, no belts used for power transmission.
Adjustable speed heavy duty 1/2 Hp, motor gearbox
Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers.
Optional double belt assembly with independent height and angle adjustment

Centrifugal type cap feeder features:

Construction in stainless steel.
32 inch diameter feeding disc ‐ ramp assembly.
Cap rejecting by photoelectric sensor.
Cap by demand controlled by photoelectric sensor.
Standard 4 pieces slotted cross for easy tooling adjustment.
Easy changeover for caps from 10mm to 90mm in diameter.
Easy changeover for caps from 0.125 to 2.5 inches in height.
Sorter mounted on machine, no need for independent height adjustment.
Includes filter pressure regulator.
Flow controls on all air hoses.
Adjustable vibration system on cap hopper.
Force provided by 1/3 Hp DC gear motor.
Speed control by potentiometer.

Cap hopper features:

3 Cubic feet stainless steel deposit.
Vibrator with independent control mounted on cap hopper.
Low friction limit switch for cap level sensing on centrifugal cap feeder.

Electric and pneumatic requirements:
110 Volts, Single phase, 50/60Hz, 15 Amps.
10 CFM @ 80 p.s.i.

Does Not Include Conveyor or Clutch System

4 spindle in line capper with centrifugal cap sorter

6 spindle in line capper with centrifugal cap sorter

8 spindle in line capper with centrifugal cap sorter

Mechanical clutches, set for (4) spindle

Mechanical clutches, set for (6) spindle

Mechanical clutches, set for (8) spindle

Pneumatic clutches with Regulators (4) spindle

Pneumatic clutches with Regulators (6) spindle

Pneumatic clutches with Regulators (8) spindle

$795.00

$1,575.00

$2,375.00

$1,690.00

$3,375.00

$5,055.00

10 Ft. Conveyor, 4.5 in. wide acetyl chain, with speed controller installed on conveyor

$4,045.00

Crating

At Cost
