New Acasi Inline T Cork Push Capper with Pocket Sorter & Cap feeder

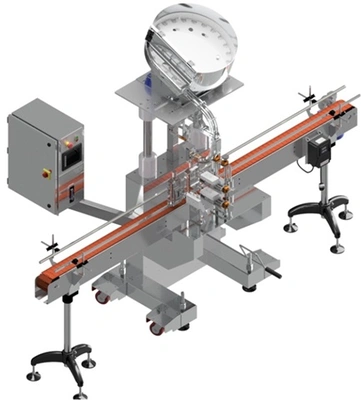

ACASI Inline T Cork Push Capper with pocket sorter cap feeder



Capper features:

Machine designed to place T cork caps on a wide range of containers – enclosures.

Price includes one set of change parts (outer guide, cap delivery).

Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request).

Cap delivery to bottle only when bottles are present.

Price includes one set of chance parts.

2 Hp AC motor with frequency drive speed control.

Stainless steel electric enclosure.

Heavy duty 304 Stainless steel welded frame.

Stainless steel enclosure with polycarbonate windows and interlock safety switches.

All shafts from 1/4 to 2-1/2 inches manufactured in 304 stainless steel.

Gear driven transmission machine to avoid timing loss.

Complete height adjustment with bottle setting guide for quick changeovers.

Easy changeovers for most change parts.

All electric, pneumatic and mechanical components are off the shelf and commercially available.

2 stage cap placement – first stage places and starts cap in position – second step does final placement with heavy duty cam driven chuck

Cap chute features:


All contact parts in stainless steel or corrosion resistant materials

Designed and tested for each cap to avoid jamming.

Includes cap demand sensor to start and stop the cap feeder.

Quick change over, since parts are pin guided so no tweaking is required.

ACASI Pocket Cap Sorter Model PS-2400:


Mechanical cap sorting requires no fine tuning.

Once setup, caps will only be dispensed in the correct orientation.

24 inch diameter feeding disc.

Interchangeable pocket disks depending on cap sizes.

Sorter mounted on machine, no need for independent height adjustment.

Driven by 1/3 Hp AC gear motor.

Speed controlled via driver.

Electric and pneumatic requirements:

220 Volts, 60Hz, 10 Amps.

5 CFM @ 80psi

Inline TCork Push Capper with pocket sorter cork feeder without conveyor and cap elevator feeder

Class 1 Division 1 Explosion Proof Construction (If Needed)

$19,560

Change parts for additional TCork size (includes additional cap chute and pocket sorter change part for the cap feeder)

$2,965

10 Ft. Conveyor, acetyl chain, 4.5 in. wide, speed control installed in conveyor.

$4,250

Each additional foot up to a maximum conveyor length of 20 feet

$180

Each additional foot of guide rail

$40

Floor level Feeder (Optional, Recommended)

$9,640
