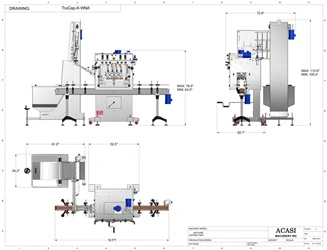

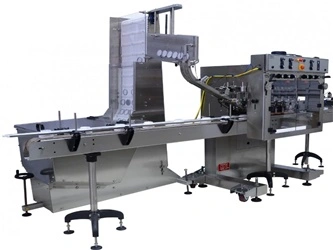

Acasi Model TruCap-X-WFall Inline Bottle Capper with Waterfall Cap Feeder

Acasi Model TruCap-X-WFall Inline Bottle Capper with Waterfall Cap Feeder

Tightener Features:

Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.

Heavy duty linear carriage system for height adjustability

All shafts and threaded rods manufactured in 304 stainless steel

Heavy duty casters standard

No change of parts needed for a wide range of containers

Front covers with safety interlock switches standard

Top driven to insure no product spillage into drive assembly

Adjustable height to accommodate containers from 1 inch to14 inches tall (Optional power height adjustment).

Capping discs features:

4, 6, or 8 spindle machine configurations available, single gear box driven

Independent spring loaded bottle capping discs for better torque and misalignment forgiveness.

Torque can be adjusted while the machine is running (When pneumatic clutch option is purchased)

Clutches located away from capping discs to avoid corrosion

Heavy duty gear driven mechanism, no belts used for power transmission

Adjustable speed 1/2 Hp drive motor for bottle capping discs

Optional second drive motor to rotate the first set of capping discs on the opposite direction

Capping head assembly manufactured in 316L stainless steel 95% of manufactured parts are in stainless steel, or FDA approved polymer materials

Independent adjustment for front or back capping discs

Capping disc position is adjustable while the machine is running, without opening the safety covers.

Fully adjustable for bottle cap sizes ranging from 8 mm to 130 mm in diameter.

Bottle belts features:

Bottle belt width adjusted via front knobs

Bottle belt height adjusted via front knobs

Heavy duty gear drive mechanism, no belts used for power transmission.

Adjustable speed heavy duty 1/2 Hp, motor gearbox

Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers.

Optional double belt assembly with independent height and angle adjustment

Waterfall feeder features:

Construction in stainless steel

18 inch wide belt

Cap feeder is adjustable for bottle caps from 8mm to 110mm in diameter, via quick adjust knobs

Caps feed on demand, controlled by photoelectric sensor

Air shutoff valve controlled by photoelectric sensor

Includes air regulator and filter

Feeder inclination adjustable from 0 to 5 degrees

Complete height adjustment by structure 1 inch bolts and/or cap delivery system.

10 cubic foot cap hopper

Drive provided by DC gear motor.

Independent Speed Control (potentiometer)

Electric and pneumatic requirements:

220 Volts, Single phase, 50/60Hz, 15 Amps.

10 CFM @ 80 p.s.i.

4 spindle in line capper with Waterfall cap sorter

6 spindle in line capper with Waterfall cap sorter

8 spindle in line capper with Waterfall cap sorter

Mechanical clutches (4) spindle machines

Mechanical clutches (6) spindle machines

Mechanical clutches (8) spindle machines

Pneumatic clutches with Regulators (4) spindle

Pneumatic clutches with Regulators (6) spindle

Pneumatic clutches with Regulators (8) spindle

$795

$1,575

$2,375

$1,690

$3,375

$5,055

10 Ft. Conveyor, 4.5 in. wide acetyl chain, with speed controller installed on conveyor

$4,045

Crating

At Cost
