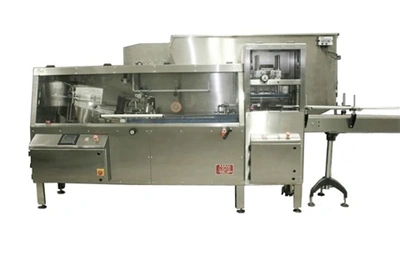

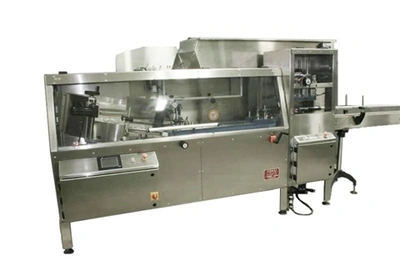

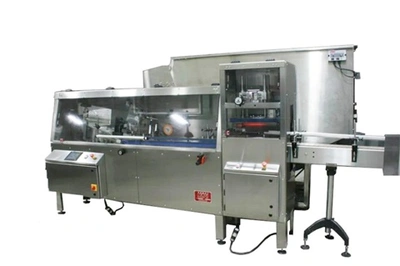

New Acasi Model TruSort-SO Bottle Unscrambler

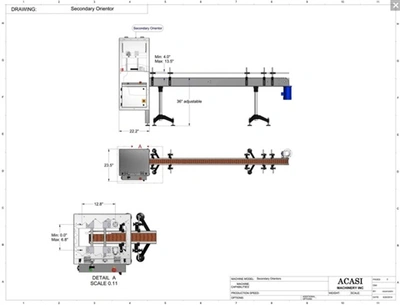

One (1)  New Acasi Model TruSort-SO Bottle Unscrambler. Model TruSort-SO is capable of feeding and orienting plastic and metal containers. The TruSort-SO (
S
econdary
O
rientation): To automatically feed containers into a production line, some containers require secondary orienting so the containers are in the right position before going into the liquid filling machines or packaging equipment. Additional orienting is necessary when the bottle coming out of the bottle unscrambler gets delivered into the conveyor in many positions; an example of this would be a motor oil quart with the off-center neck. On a typical bottle unscrambler, the containers will feed these non symmetrical containers either neck leading or neck trailing, so to automate the packaging line, you need to add secondary orientation.

Construction Features:

Heavy duty frame built with 2 x 2 x 0.187 square tubes.

Adjustable positioning on most systems to minimize change parts requirements.

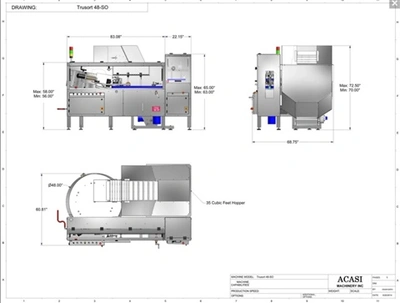

48-inch diameter pre-feeder will accommodate a wide range of containers, one inner disc is included.

Capable of handling a wide range of containers, from ounces to gallons. • Rotating bottle reject with speed control included.

Calibration markings, labels and indicators to help document changeovers.

Bottle turning by pneumatic actuator to guarantee production speeds.

Pre-feeder built at an angle to minimize bottle damage.

Single hand wheel adjustment for intake and delivery carrier belts, additional tweaking is also possible.

Spacing belt for bottle feeding and spacing, gear motor driven.

Delivery carrier belts have additional adjustments to guarantee container placement on conveyor.

Single gearbox for main belt system eliminates all the belts and springs of the transmission system, powered by ¾ Hp motor.

Bottle handling from left to right.

Cad designed, CNC manufactured, thoroughly tested before leaving our facility.

Low electric and pneumatic consumption.

Various hopper sizes available depending on specific application.

Can work on existing or new conveyors.

Leveling by mounting screws.

Guarantee: 18 months on all parts under normal use, except belts.


Electric and pneumatic requirements:

220 Volts, 60Hz, 10 Amps

5 CFM @ 80 p.s.i
.

Video New Acasi TruSort SO (Secondary Orientation) Bottle Unscrambler

TruSort 48" Automatic Bottle Unscrambler Base

TruSort 60" Automatic Bottle Unscrambler Base

Trusort 48" & 60" Additional Prefeeder Disc

$820

Incorporated 25 cubic foot hopper

$5,000

Independent 35 cubic foot hopper

$9,030

Independent 100 cubic foot hopper

$13,670

Low level hopper sensor and 3 color status light (Opt)

$1,950

Automatic inverting, ionizing and suction unit (Opt)

$8,060

Complete hopper and feeder bowl frame enclosure with safety interlock doors (with 20 cubic foot hopper only) (Opt)

$7,930

Custom hook assembly modification for handling containers with diameter larger than height

$2,320

Spring loaded system on carry and delivery belts through whole travel (Opt)

$3,140

Photoelectric conveyor backup eye (Recommended)

$450

Polycarbonate feed bowl cover (Opt)

$700

10 Ft. Conveyor, 4.5 in. wide acetyl chain, with speed control installed on conveyor (Opt)

$4,250
