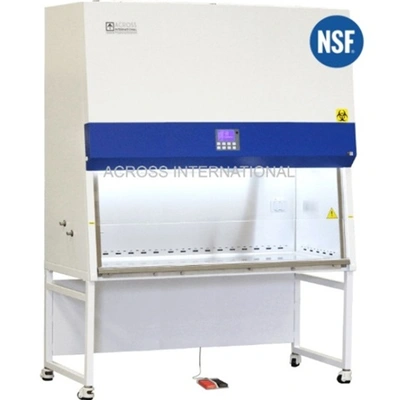

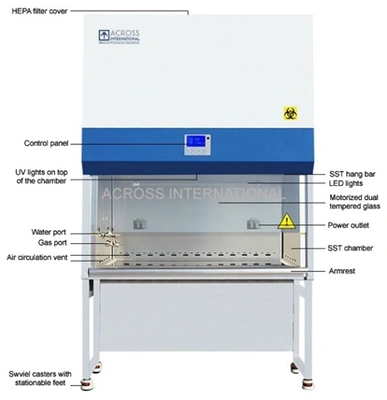

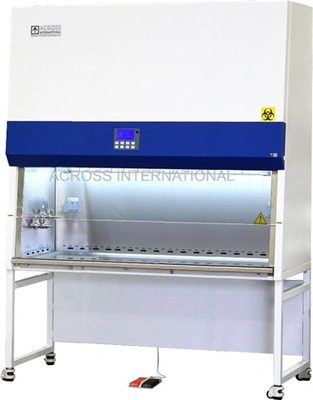

New Across International Model BC-6F NSF Certified 6 Ft Class II Type A2 Biosafety Cabinet.

One (1) New Across International Model BC-6F NSF Certified 6 Ft Class II Type A2 Biosafety Cabinet.

Specifications

Electrical requirements 110V 60Hz 1-Phase 500 watts

Chamber Dimensions: 67 x 23.5 x 26" (WxDxH)

Material: 304 stainless steel

Power outlet with cover: four, < 500 watts

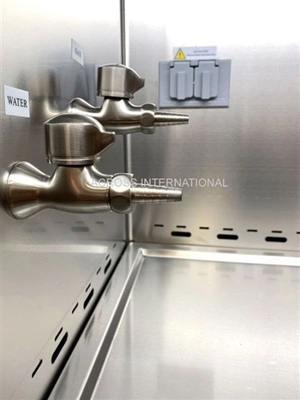

Water port x 1, stainless steel

Gas port x 1, stainless steel

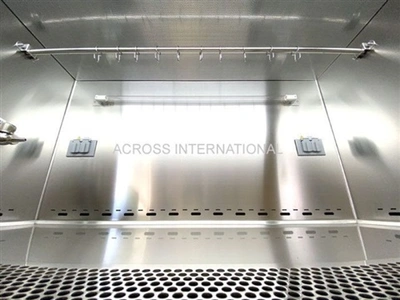

Hanging bar: stainless steel, with 10 hooks

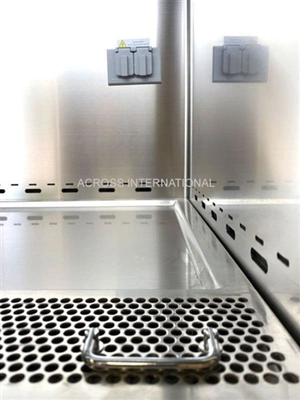

 Work surface:

Made from stainless steel

5" ground clearance

Comes with handles. Entire surface can be easily removed for cleaning

Lights

LED lights: 22W x 2, > 1000 Lux

UV lights: 30W (Germicidal UV lamp, emission 253.7 nanometers)

UV lights available only when front glass panel is fully closed.

Recommended replacement interval: 600 hours

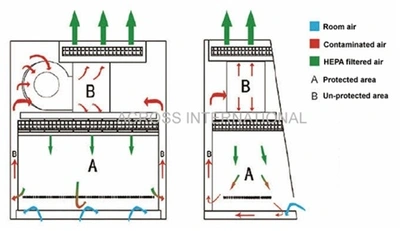

Air Flow

Volume Inflow: 825 CFM (Cubic Feet per Minute) Downflow: 710 CFM Exhaust: 485 CFM


Speed

Inflow: 100-110 FPM (Feet per Minute) Downflow: 60-70 FPM

70 % recirculated internally, 30% discharged from top vent

Air circulation available only when front glass panel is open

Hepa Filters

Two, with 99.999% efficiency at 0.3 μm diameter

Filter hour indicator and life bar on controller

Recommended replacement interval: 4,000 hours

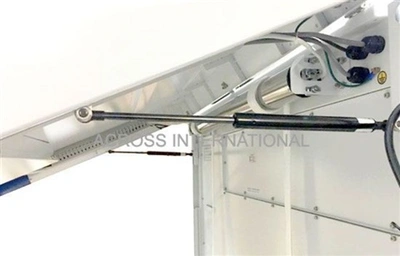

Front Panel Safety

Material: tempered safety glass (thickness > 5mm), dual-layer, laminated, UV blocking

Recommended opening height: 10"

Maximum opening height: 20.5"

Controller

LCD screen with soft touch buttons and remote control

Safety

Abnormal airflow alarm

Filter replacement alarm

Front glass panel unsafe height

Compliance

NSF/ANSI 49 (C0559576)

http://info.nsf.org/Certified/Biosafety/Listings.asp?Company=C0559576&Standard=049



Weight & Dimensions

820 Lbs (unit), 952 Lbs (shipping)

Fully assembled: 73.5 x 30.5 x 90.5" (WxDxH)

Without stand: 73.5 x 30.5 x 63.5” (WxDxH)

Shipping: 79.5 x 42.5 x 75" (WxDxH)

Warranty

One Year
