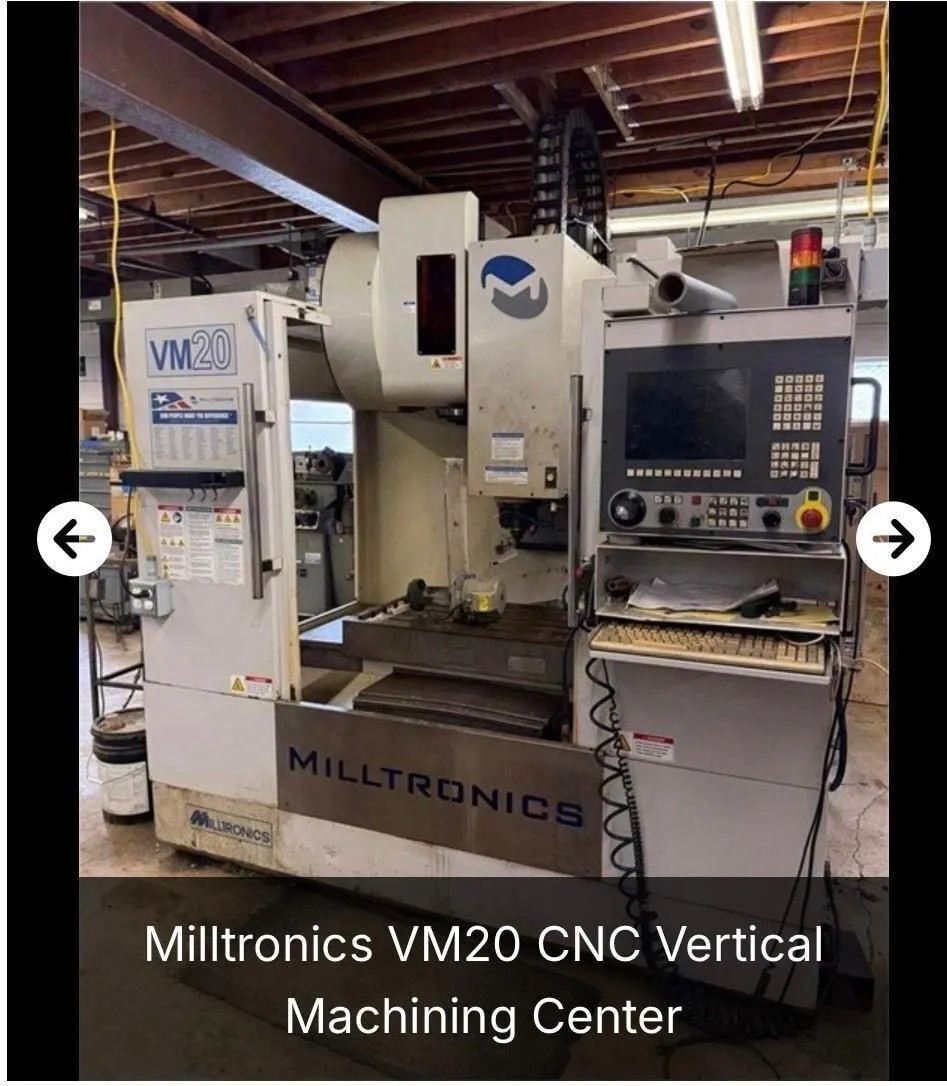

USED 2006 MILLTRONICS VM20

Side Mount Toolchanger
• Swivel Operator's Station
• Massive Heavily Ribbed Machine Tool Grade Cast Iron Construction
• Precision Ground Table, Rail and Rail Block Mounting Surfaces
• Chip Removal System with Optional Auger and Conveyor
• Inverted Rail Table Designs Keeps Bearing Blocks Centered Under Spindle
• Soft Start High Speed Way Covers Allows for up to 1600 ipm Rapid Traverse Rates
• Heavy Duty Enclosure with Work Light and Overhead Loading Capability
• Wide Side Doors for Cleaning or Large Parts That Can Extend Through
• Precision Ground Double Anchored Ball Screws With Dampening Couplings
• Five Bearing Air Purged 8,000 RPM Spindle Cartridge Assembly, Optional 15,000 RPM
• Spindle Taper Blow-out and Tool Release Push Button
• Electronic Spindle Orient and Rigid Tap
• PC-based CNC includes 2 MB Parts Storage Memory
• 12" LCD Active Matrix Color Display
• Conversational plus G & M Code Programming
• 3-D Part and Wire Frame Tool Path Graphics on Series 7000 Plus
Solid Modeling Graphics on Series 8000 when released
• 6 MB Virtual Disk / RS-232 with DNC Buffer
• High Speed Processor (7000 Series 1200 block/sec, 8000 Series 2000 blocks/sec)
• Optional Four & Five Axis Simultaneous Interpolation Software & Interface
• High Torque AC Digital Servo Drives
• High Torque Closed Loop Vector Spindle Drive System
• All Axes Laser Calibrated and Ballbar Inspected
• Spindle Load Meter
