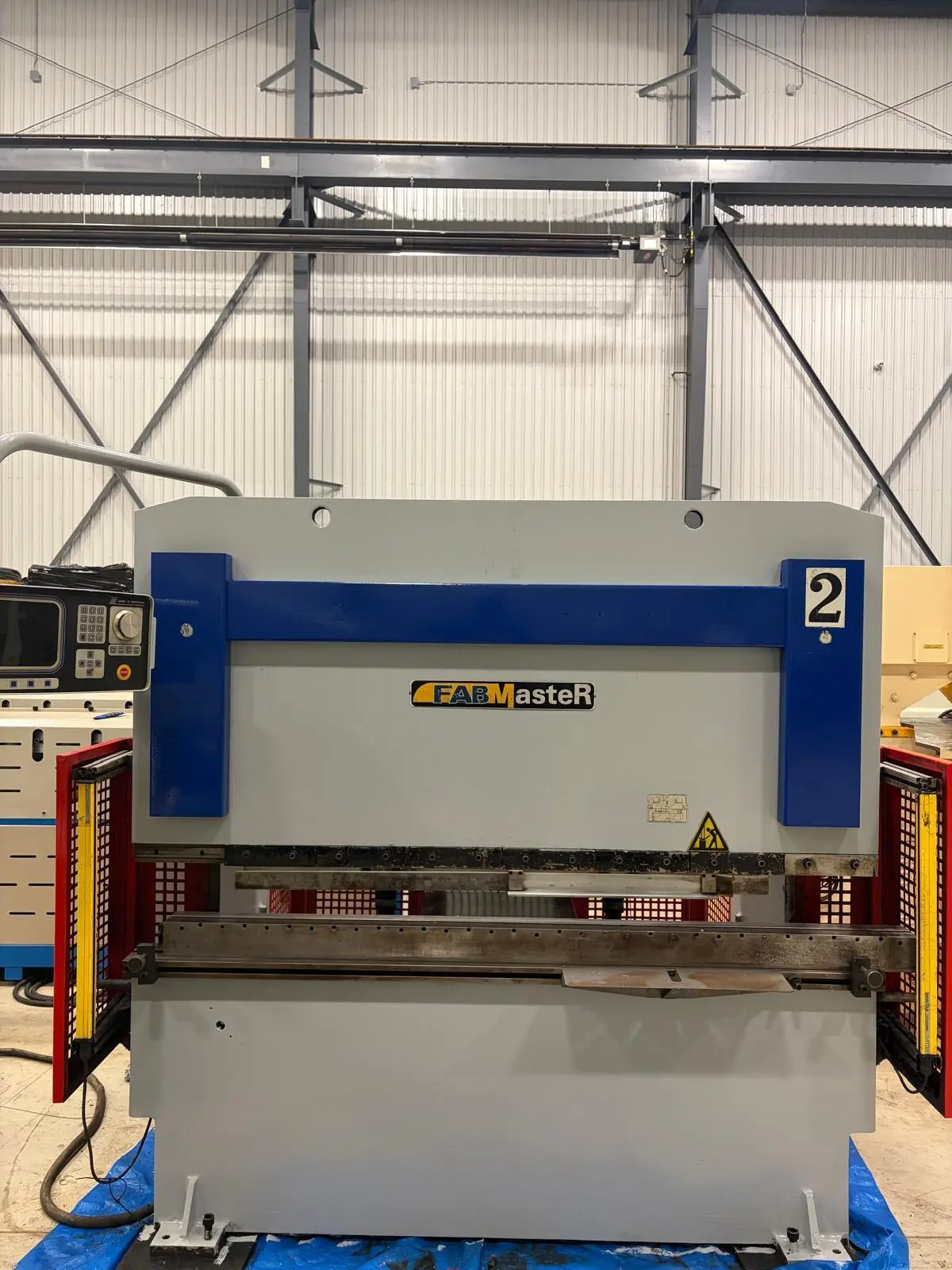

USED 2004 FABMASTER PPT 44-6

Ontario, Canada
104Listings|23Followers
Overview
Press Brakes

Year: 2004
Condition: good - repainted

44 TON PPT44-6 FAB MASTER PRESS BRAKE
Model: PPT 44-6
Serial no. 4341
Mfg Date: 10/2004
Power: 575V 60Hz 3PH
Full load current: 7A
Circuit protector: 10A
Max Cap: 44 ton
Max Gw: 2500 kg
PSI: 60,000psi
Bed Length: 79'' inches
Back Gauge Control: COMP-U-BEND 61000
MACHINE DIMENSIONS: 70'' x 95'' x 80''

Specs
Bending Length
79"
Type
HYD
Max Tonnage
44
# of Axis
2 (Y - X)
Free Down Speed
TBA
Bending Speed
10mm/sec
Return Speed
TBA
Stroke
5"
Backguage Stroke (X)
20"
Backguage Stroke (R)
N/A
Distance Between Housings
64"
Crowning
N/A
Throat Depth
8"
Daylight
TBA
Voltage
575V/3ph/60hz
Dimensions
70'' x 95'' x 80''
Weight
Approx 5,500lbs

Specifications are subject to change and should be verified before purchase.
