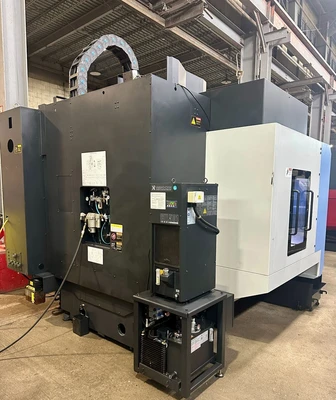

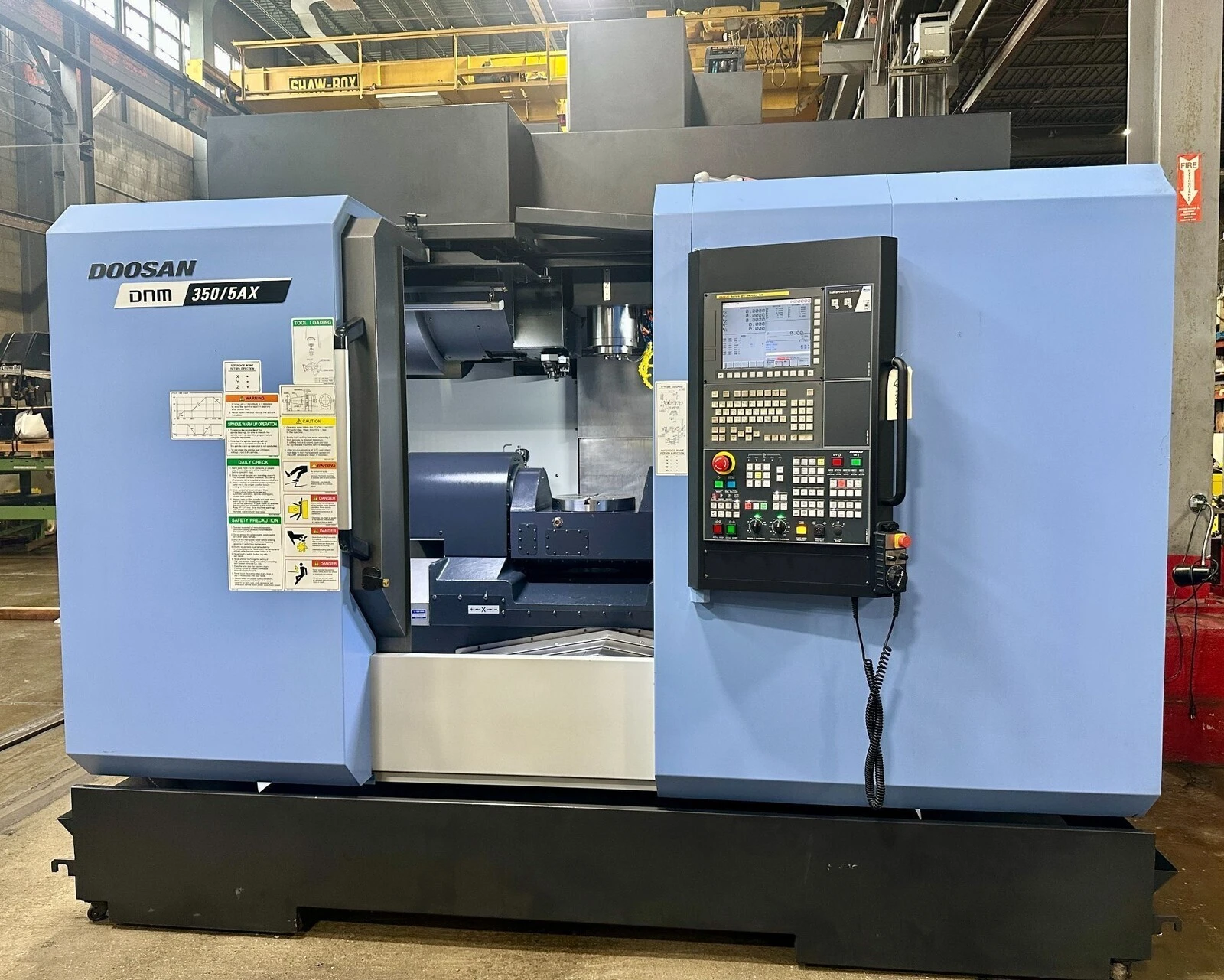

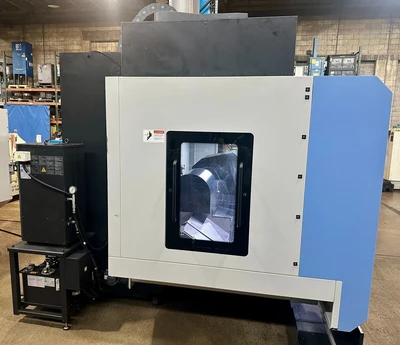

USED 2016 DOOSAN DNM 350/5AX
Overview

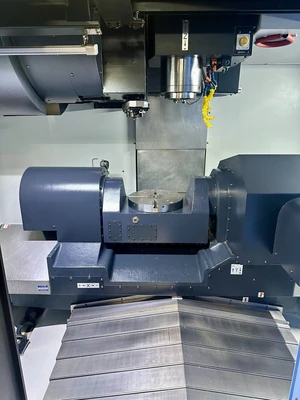

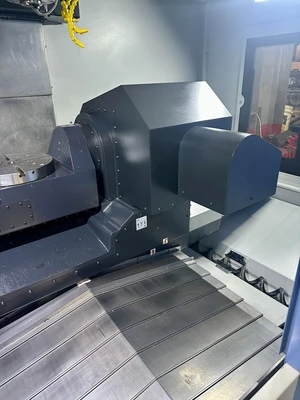

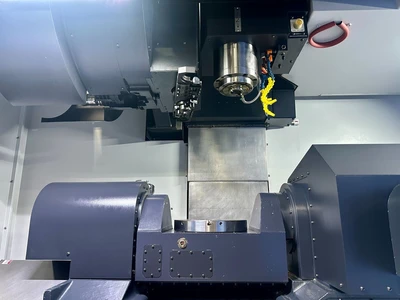

Used 5-axis vertical machining center. Features 13.8" trunnion table, 25 hp spindle, max speed 12,000 RPM, 30 ATC, Renishaw probe, and more. Compact design: 118" x 117" x 124".
Specs
# Axis 5
Table Diameter 13.8"
Table Load Capacity 551.1 lb
Workpiece Diameter 15.7"
Workpiece Height 13.2"
X-Axis (Longitudinal Travel) 23.622"
Y-Axis (Cross Travel) 25.787"
Z-Axis (Vertical Travel) 19.685"
A-Axis (Trunnion Tilt Range) (±25°) +30° -120°
C-Axis Table Rotation Positioning 360°
Max Clearance Tabletop to Spindle Nose 21.7"
Min Clearance Tabletop to Spindle Nose 2"
Spindle Power 25 hp
Max Spindle Speed 12,000 RPM
Rapid Traverse Rate (X-Axis) 1,417 in/min.
Rapid Traverse Rate (Y-Axis) 1,417 in/min.
Rapid Traverse Rate (Z-Axis) 1,181 in/min.

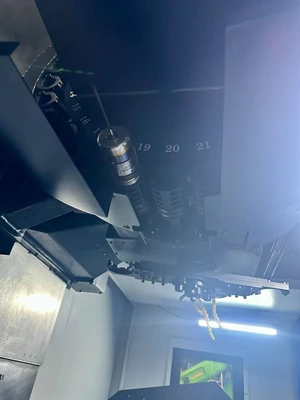

Automatic Tool Changer Capacity (ATC) 30
Spindle Taper BIG PLUS CAT 40
Electrics 220/3/60
Dimensions 118" x 117" x 124"
Weight 18,739 lbs
Equipped With

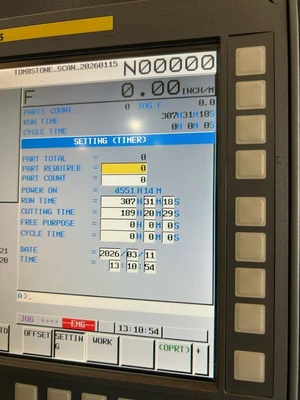

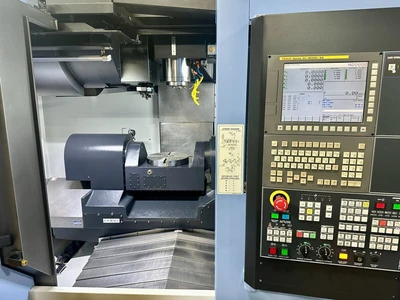

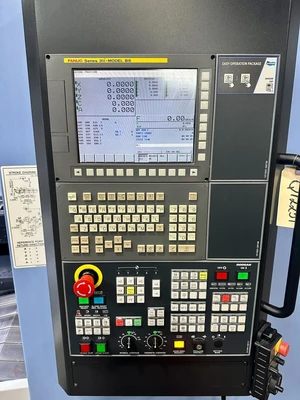

Fanuc i-Series CNC Control, 13.8″ Diameter Trunnion Table, Coolant through Spindle, 30 ATC, Tool Presetter, Renishaw Probe, Spindle Chiller Unit, PCMCIA Card Slot, Thermal Compensation, Spindle Orientation, Helical Interpolation, Rigid Tapping, Coolant System. Machine was being used in R&D Facility only 137 Cut Time.
