USED 2004 LIFT SYSTEMS INC 34PT5400WT

Manufacturer:
Lift Systems, Inc. (USA)
Model:
34PT5400WT
Year of manufacture:
2004
System type:

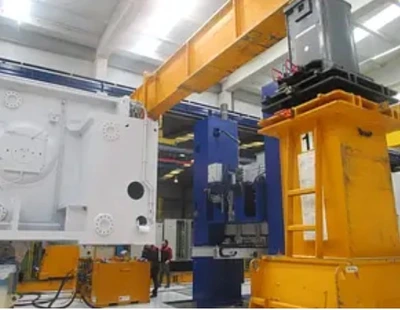

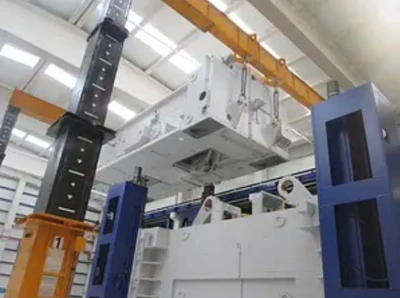

Hydraulic Gantry Lifting System
—
Configurations and Lifting Capacity
The system can be assembled in different configurations, providing various lifting capacities depending on the setup.
4-point configuration:
* up to 500 tons with lifting height up to 8.38 m
* up to 400 tons with lifting height up to 10.67 m
2-point configuration:
* up to 250 tons with lifting height up to 8.38 m
* up to 200 tons with lifting height up to 10.67 m
Capacity varies depending on the number of lifting points and the position of the hydraulic columns.
—

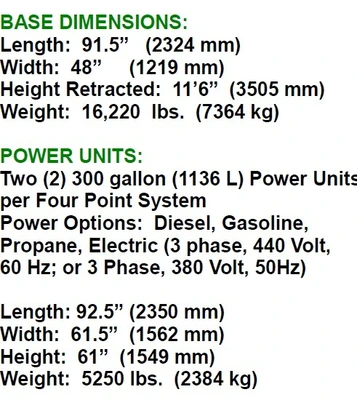

Dimensions and Modularity
The system consists of the following main components:
Columns:
* Weight per column: approx. 7.3 tons
* Maximum working height: up to approx. 10 m
* Transport height: approx. 3.5 m
* Each column is equipped with guides for hydraulic jack movement
Beams and frames:
Includes beams of various lengths (e.g. 12 m, 9 m, 6 m, 4 m), allowing flexible gantry assembly for different spans and lifting heights.
Hydraulic jacks:
Hydraulic cylinders transmitting lifting force to the load.
—
Hydraulic System

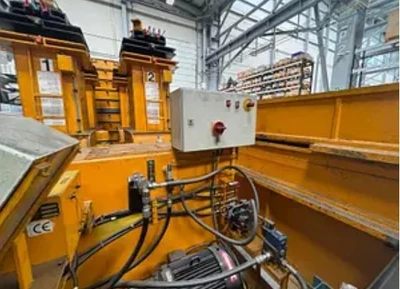

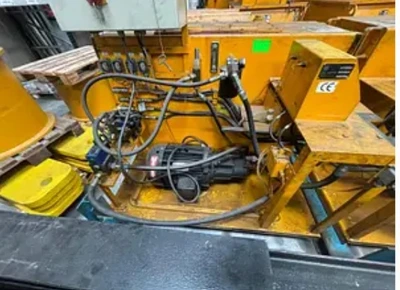

Power units:
* Set of 2 hydraulic power units (typically approx. 1,136 liters each)
* Dual-circuit system for synchronized multi-point lifting
Maximum working pressure:
Approx. 2,750 PSI (≈ 190 bar)
Power supply:
* Electric drive: 380 V / 50 Hz
* Possible adaptation to diesel or gasoline drive
