USED 1986 DOALL G-612M

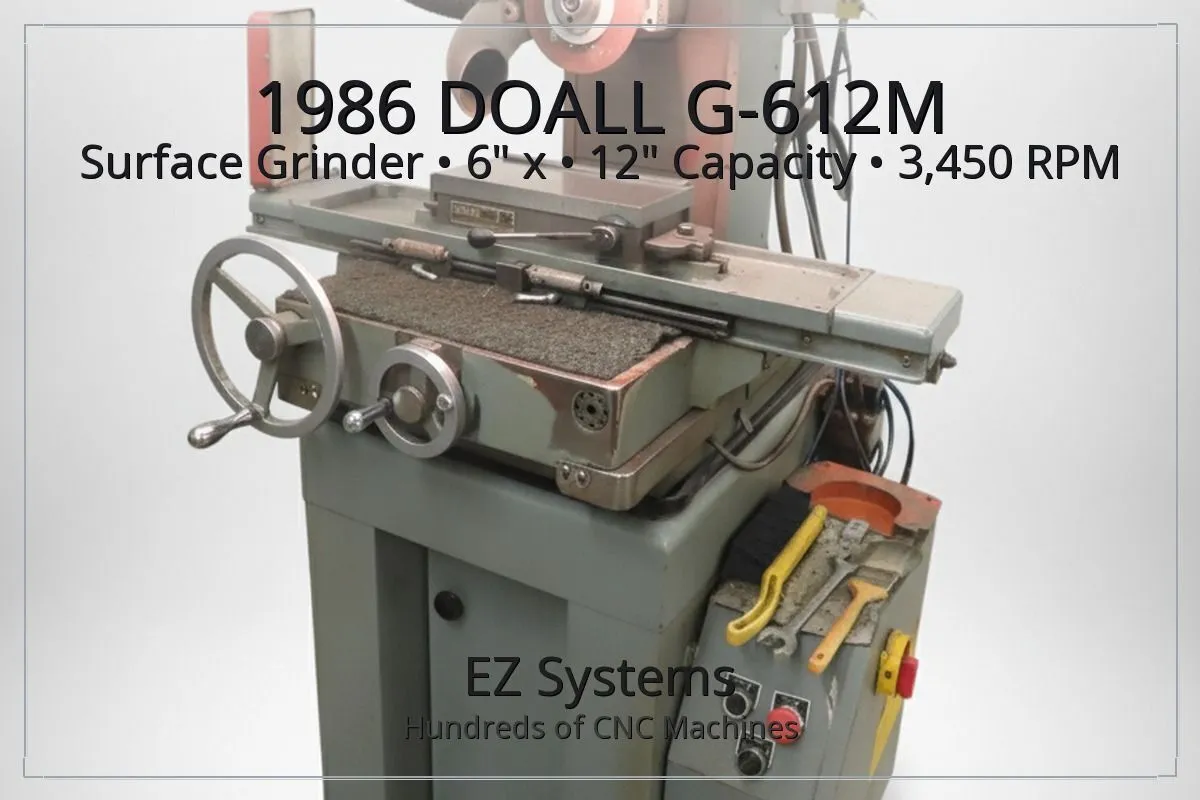

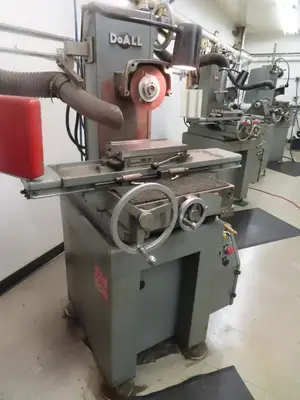

1986 DOALL G-612M Surface Grinder, 6" x 12" Capacity, 3,450 RPM Spindle

1986 DOALL G-612M Surface Grinder with 6" x 12" Capacity, 3,450 RPM Spindle, Manual Feed, and Walker Ceramax Magnetic Chuck. Price [MISSING] FOB Eugene, OR.
+
Specifications
- Electrics: 230 Volt, 3 Phase, 60 Cycle, 2.6 Amps
- Main Motor: 1 HP
- Capacity: 6" x 12"
- Manual Feed
- Spindle Specs: Model: MD-5
- Spindle Specs: Serial No.: 298
- Spindle Specs: Max. Speed: 3,450 RPM
- Feed Graduation Values: Vertical Feed: 0.0001"
- Feed Graduation Values: Cross-Feed: 0.0005"
- Wheel Size: 7” x ½” x 1-1/4”
- Travels: Longitudinal: 13"
- Travels: Cross-Travel: 7”
- Travels: Under Wheel: 12-3/4"
- Way Lube
- Walker Ceramax Magnetic Chuck
- Customized Spray Mist System
- Dust/Fine Collection
- Work Lamp

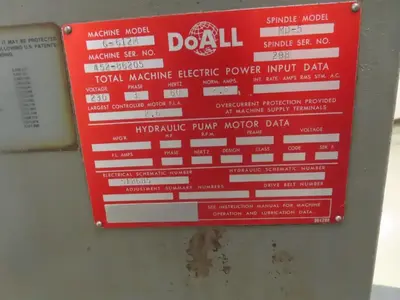

- Serial #: 452-86205
- Country: United States
+
Description
This 1986 DOALL G-612M Surface Grinder is a reliable, first-owner machine ready for its next operation.
This manual surface grinder, manufactured by DoAll, model G-612M, was built in 1986 and is currently in good working order. The current owner is selling due to reduced production requirements in their grind room, making it an excellent opportunity for a new owner. It features a 1 HP main motor and operates on 230 Volt, 3 Phase power.
+
Key Features & Benefits
+
Key features include a 6" x 12" capacity, manual feed, and a spindle with a maximum speed of 3,450 RPM. Precision is ensured with vertical feed graduations of 0.0001" and cross-feed graduations of 0.0005". It comes equipped with a Walker Ceramax Magnetic Chuck, Way Lube, a Customized Spray Mist System, Dust/Fine Collection, and a Work Lamp for enhanced functionality and operator convenience.
+
Dimensions & Weight
- Physical Footprint: 48” x 40” x 58”
- Weight: Approximately 1,700 lbs
+
Shipping & Location Details
Location: Eugene, OR
FOB
This machine is offered FOB Eugene, OR. Buyer is responsible for all applicable freight and rigging expenses.
+
