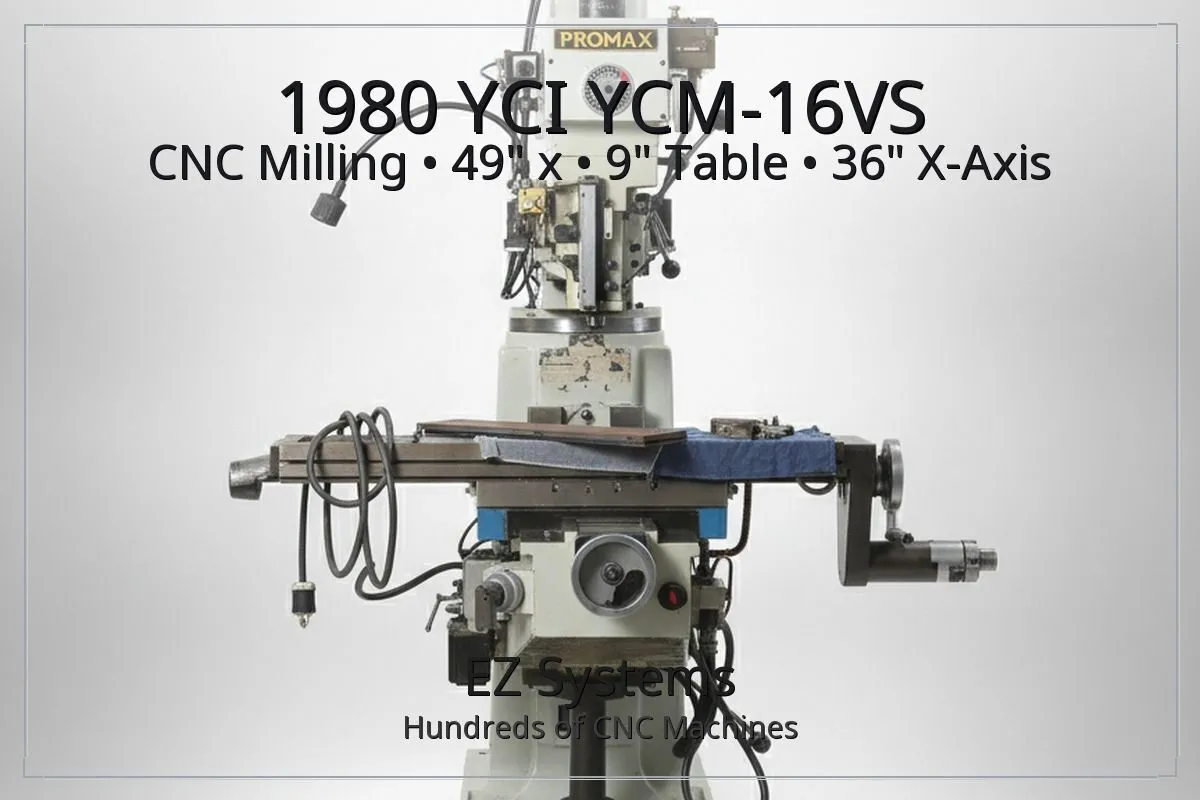

USED 1980 YCI YCM-16VS

1980 YCI YCM-16VS CNC Milling 49" x 9" Table, 36" X-Axis, 4200 RPM

1980 YCI YCM-16VS CNC Milling with 49" x 9" Table, 36" X-Axis Travel, 4200 RPM Spindle Speed [PRICE MISSING] FOB Eugene, OR
+
Specifications
- CNC Controller: Anilam 3200 MK
- Controller is NON-FUNCTIONAL
- Table Size: 49″ x 9″
- X-Axis Travel (approx.): 36”
- Y-Axis Travel (approx.): 16”
- Knee Travel (approx.): 16”
- Quill Travel (approx.): 5”
- Ram Travel (approx.): 18”
- Variable-Speed Drive: 60-4200 RPM
- Speed Range: Low / High
- Quill Feeds (IPR): .0017, .0032, .0053
- Workpiece Load: 750 lbs
- Spindle Direction Switch
- Spindle Taper: R8
- Knuckle Joint for Head Tilt F-B & L-R
- 1-Shot Lube
- Pneumatic Draw Bar
- Customized Spray Mist System
- Sump in Base
- Electrics: 220-440 Volt, 3 Phase, 60 Cycle, 8.5-4.2 Amps
- Main Spindle: 3 HP, 1720
+
Description

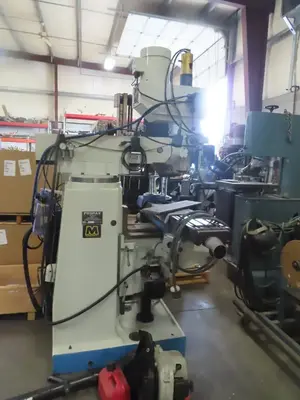

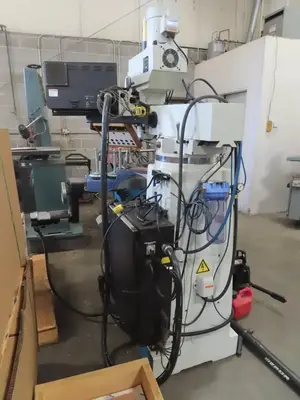

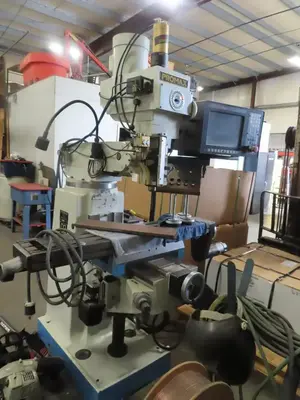

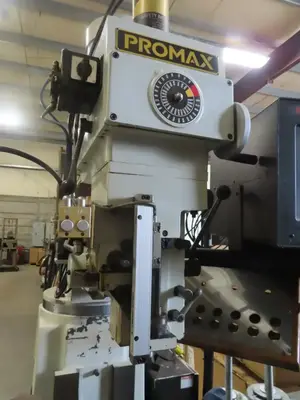

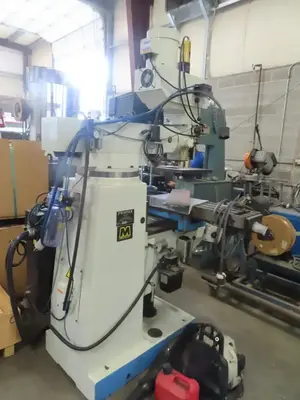

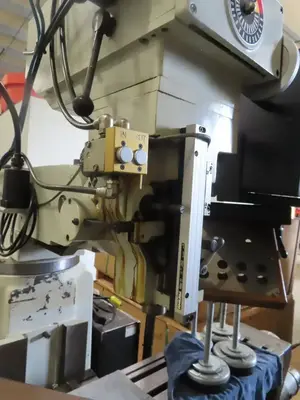

Discover a robust 1980 YCI YCM-16VS CNC Knee Mill, a reliable workhorse ready for its next chapter.

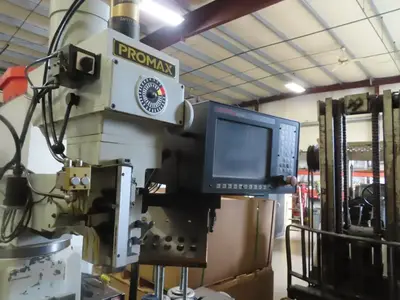

This YCI Promax CNC Knee Mill, Model YCM-16VS, was manufactured in 1980 and has been a steadfast presence in its second owner's shop for 30 years. While the Anilam 3200 MK CNC Controller is currently non-functional and requires replacement, the machine was a good runner when the control was operational. The seller is moving away from these types of machines, having acquired CNC bed mills for a new product mix, making this an excellent opportunity for a buyer willing to integrate a new control system.
+
Key Features & Benefits
Equipped with a substantial 49" x 9" table, this mill offers generous travels including 36" on the X-axis, 16" on the Y-axis, and a variable-speed drive ranging from 60-4200 RPM. It features a 3 HP main spindle with an R8 taper, a pneumatic draw bar, and a customized spray mist system. The machine's robust design supports a workpiece load of up to 750 lbs, making it suitable for a variety of milling applications once a new controller is installed.
+
Dimensions & Weight
- Physical Footprint: 72” x 68” x 90”
- Weight: Approximately 3,000 lbs
+
Shipping & Location Details
Location: Eugene, OR
FOB
This machine is offered FOB Eugene, OR. Buyer is responsible for all applicable freight and rigging expenses.
+
