USED 1980 YCI YCM-16VS

1980 YCI YCM-16VS CNC Milling 49" x 9" Table 60-4200 RPM Spindle

1980 YCI YCM-16VS CNC Milling Machine with Anilam 3200 MK Control, 49" x 9" Table, 60-4200 RPM Spindle, 3 HP Motor. FOB Eugene, OR.
+
Specifications
- Type: CNC Milling
- Manufacturer: YCI
- Model: YCM-16VS
- Year: 1980
- Status: For Sale
- Serial #: 0045884
- Country: United States
- Electrics: 220-440 Volt, 3 Phase, 60 Cycle, 8.5-4.2 Amps
- Main Spindle: 3 HP, 1720

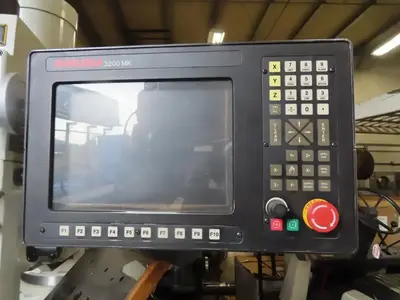

- CNC Controller: Anilam 3200 MK
- Table Size: 49″ x 9″
- X-Axis Travel: 36”
- Y-Axis Travel: 16”
- Knee Travel: 16”
- Quill Travel: 5”
- Ram Travel: 18”
- Variable-Speed Drive: 60-4200 RPM
- Speed Range: Low / High
- Quill Feeds (IPR): .0017, .0032, .0053
- Workpiece Load: 750 lbs.
- Spindle Direction Switch
- Spindle Taper: R8
- Knuckle Joint for Head Tilt F-B & L-R

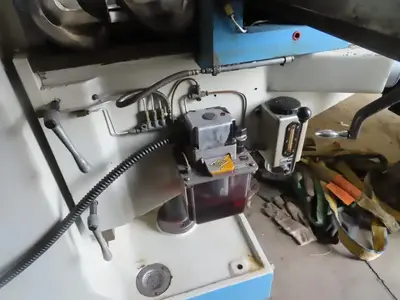

- 1-Shot Lube
- Pneumatic Draw Bar
- Customized Spray Mist System
- Sump in Base
- OEM: YCI, Inc. Promax (Taiwan)
- Condition: Used
- Quantity: 1 available
+
Description
This 1980 YCI YCM-16VS CNC Knee Mill offers reliable performance with a recently refurbished Anilam 3200 MK control.
This used YCI Promax CNC Knee Mill, Model YCM-16VS, has been a dependable workhorse for 30 years with its second owner. Featuring a 3 HP main spindle and a 49" x 9" table, it's equipped for precision milling tasks. The Anilam control system was refurbished 2-5 years ago, ensuring continued operational efficiency. The machine is currently under power and available for inspection in Eugene, OR.
+
Key Features & Benefits
+
Key features include a robust 3 HP main spindle, a versatile variable-speed drive ranging from 60-4200 RPM, and a substantial 750 lbs. workpiece load capacity. It boasts generous travels of 36” (X-Axis), 16” (Y-Axis), 16” (Knee), 5” (Quill), and 18” (Ram). Additional functionalities like a pneumatic draw bar, 1-shot lube system, and a customized spray mist system enhance its operational convenience and efficiency.
+
Dimensions & Weight
- Physical Footprint: 72” x 68” x 90”
- Weight: Approximately 3,000 lbs
+
Shipping & Location Details
Location: Eugene, OR
FOB
This machine is offered FOB Eugene, OR. Buyer is responsible for all applicable freight and rigging expenses.
+
