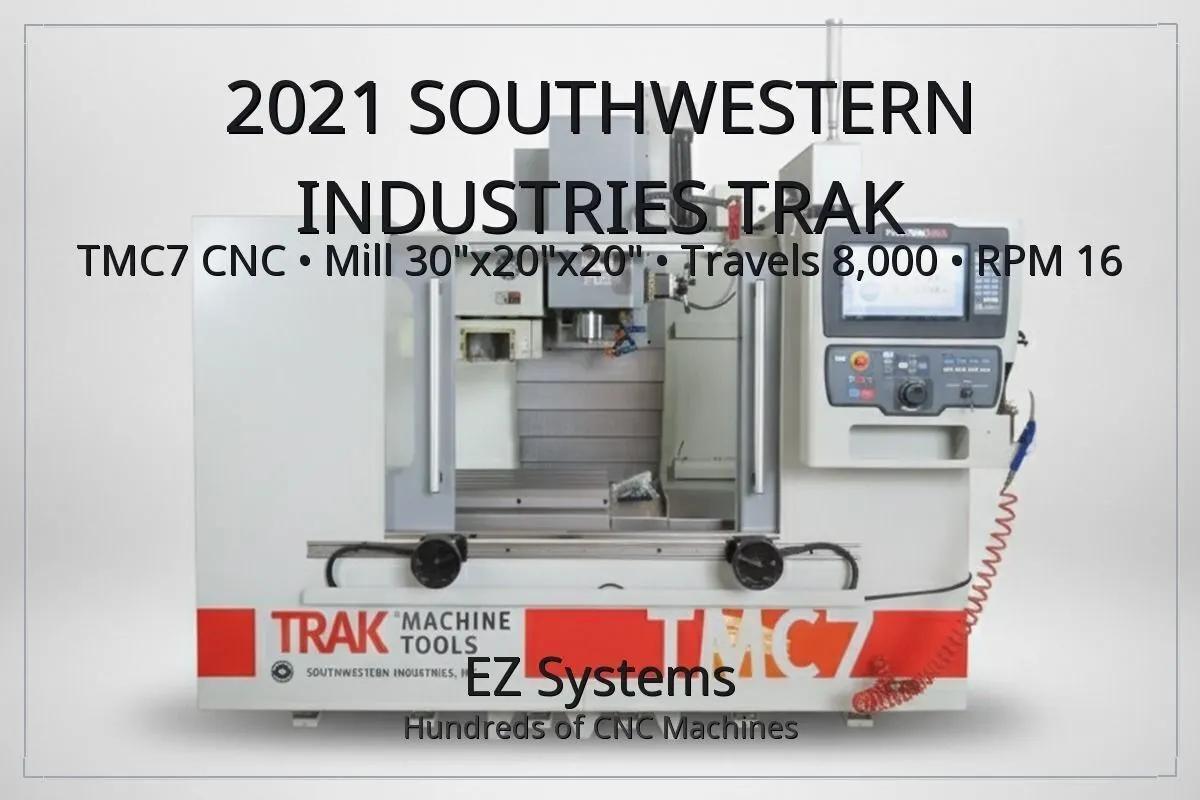

USED 2021 SOUTHWESTERN INDUSTRIES TRAK TMC7

2021 SOUTHWESTERN INDUSTRIES TRAK TMC7 CNC Mill 30"x20"x20" Travels 8,000 RPM 16 ATC

2021 SOUTHWESTERN INDUSTRIES TRAK TMC7 CNC Milling Machine with 30"x20"x20" Travels, 8,000 RPM Spindle, 16 ATC, [MISSING] FOB Central Willamette Valley, OR
+
Specifications
- Type: CNC Milling
- Manufacturer: SOUTHWESTERN INDUSTRIES
- Model: TRAK TMC7
- Year: 2021
- Status: For Sale
- Country: United States
- Electrics: 208 Volt, 3 Phase, 60 Hz, 67.3 Amps
- Main Motor: 10/15 HP
- Control: ProtoTRAK/RMX CNC Control
- Table Size: 35.43" x 19.69"
- Max. WP Weight: 1,000 lbs.
- X-Axis Travel: 30″
- Y-Axis Travel: 20″
- Z-Axis Travel: 20″
- Spindle Speed (max.): 8,000 RPM
- Spindle Taper: CAT 40
- ATC: 16 Slots
- Rapid Traverse (X,Y,Z) Tool Room Mode: 400 IPM
- Rapid Traverse (X,Y,Z) Production Mode: 1000 IPM
- Coolant System: 56 Gallons
- Electronic Handwheels
- Cabinet Cooler: Kaukan Model C&H-3AF
- 4th-Axis Capable (requires card)
- Rigid Tapping
- Air & Coolant Blast
- Double Auger
+
Description
This 2021 SOUTHWESTERN INDUSTRIES TRAK TMC7 Vertical Machining Center offers excellent performance for precision milling tasks.
Acquired new in 2021, this well-maintained CNC Vertical Machining Center is now available due to the owner's need for a larger capacity machine. It features a ProtoTRAK/RMX CNC Control, generous 35.43" x 19.69" table, and substantial 30" x 20" x 20" travels, making it ideal for a variety of machining applications. With estimated hours between 5,000 and 6,000, it remains in excellent condition and is currently under power for inspection and testing.
+
Key Features & Benefits
Equipped with a powerful 10/15 HP main motor and an 8,000 RPM CAT 40 spindle, this TRAK TMC7 ensures efficient material removal. Its 16-slot automatic tool changer boosts productivity, while rapid traverse rates up to 1000 IPM in production mode minimize cycle times. Additional features like electronic handwheels, a Kaukan cabinet cooler, rigid tapping, and 4th-axis capability (with card) enhance its versatility and operational ease.
+
Dimensions & Weight
- Physical Footprint: 97" x 108" x 97" Tall
- Weight: Approximately 8,400 lbs
+
Shipping & Location Details
Location: Central Willamette Valley, OR
FOB
This machine is offered FOB Central Willamette Valley, OR. Buyer is responsible for all applicable freight and rigging expenses.
+
