Haas VF-5/50XT – 2022
Overview

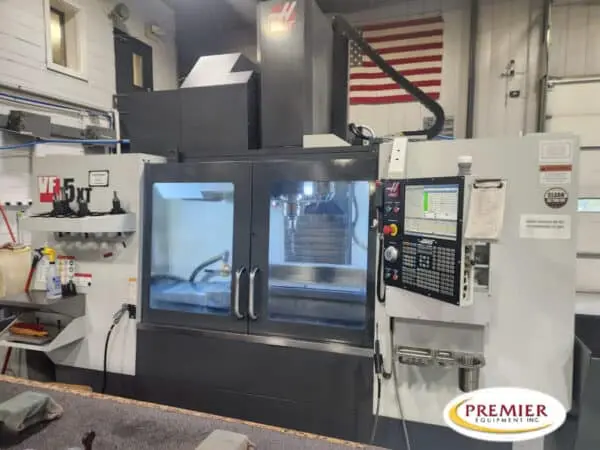

Haas VF5/50XT CNC Mill
Travels
X Axis: 60.00″
Y Axis: 26.00″
Z Axis: 25.00″
Spindle Nose to Table (~ max): 32.9″
Spindle Nose to Table (~ min): 7.9″
Spindle
Max Rating: 30.0 hp
Max Speed: 7500 rpm
Max Torque: 340.0 ft-lbf @ 700 rpm
Drive System: 2-Speed Gearbox
Taper: 50
Table
Length: 62.0″
Width: 23.0″
T-Slot Width: 0.626″ to 0.630″
T-Slot Center Distance: 3.15″
Number of Std T-Slots: 7
Max Weight on Table (evenly distributed): 4000 lb
Capacity: 30+1
Haas Next Gen Control
Thru Spindle Coolant
Renishaw Part Probe
Side Mount 30 ATC
