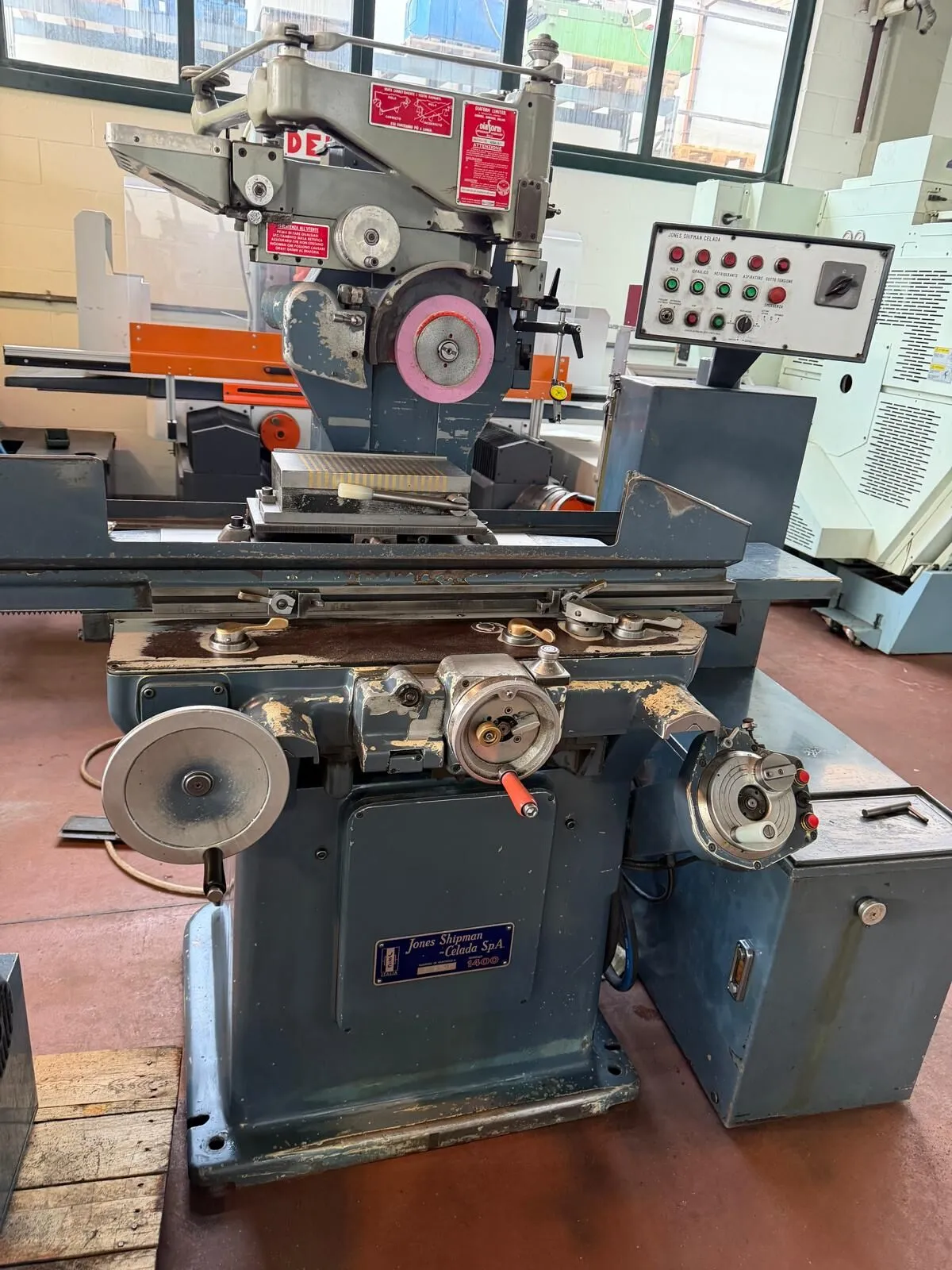

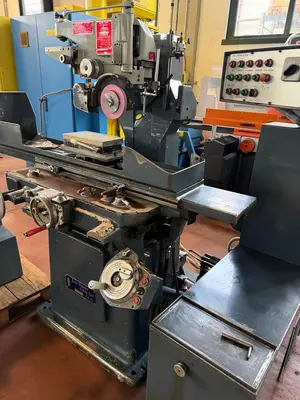

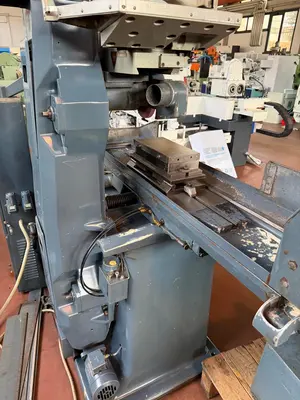

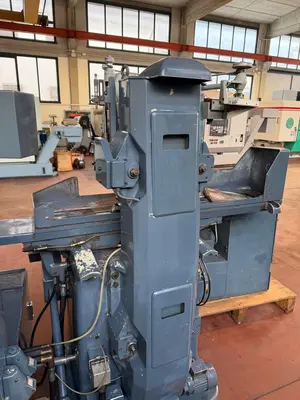

USED JONES & SHIPMAN 1400

Capacity: 635x203x408 mm [WORKING CAPACITY]
Longitudinal (X): 635 mm
Vertical (Z): 279 mm
Cross Table (Y): 203 mm
Spindle nose axis - table distance: 83-360 mm

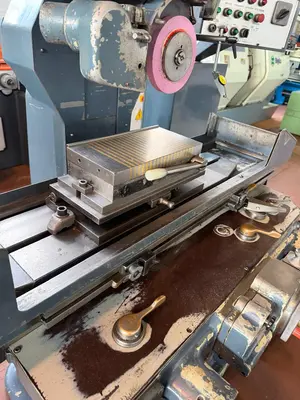

[TABLE]
Surface: 610x178 mm
Cross speed: 3-21
[FEEDS]
Automatic Vertical: 0,001-0,006 mm/min
Cross: 0,178-1,78 mm/min
[WHEEL SPINDLE]
Spindle power: 1,5 Kw
Rotating speed: 2570 Rpm
Support: cuscinetti
[WHEEL]
Wheel band thickness: 20 mm
Max wheel diameter: 200 mm
Hole diameter: 31,75 mm
[EXTRA]
Total power supply: 3 HP
Machine total weight: 1633 Kg
Digital read out (DRO): si

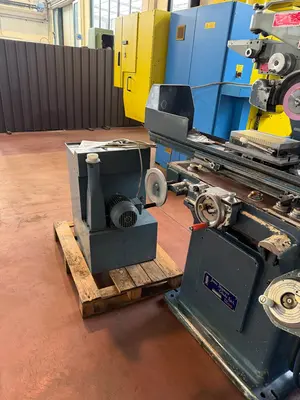

Filtration unit: SI
Floor space: 2350X1050X1650 mm

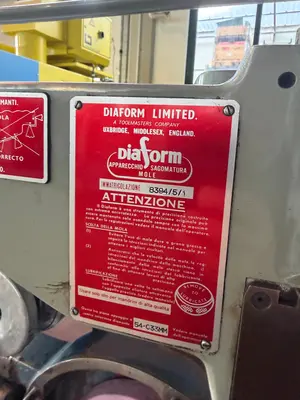

Diaform: SI
