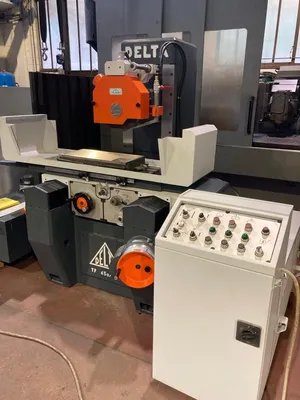

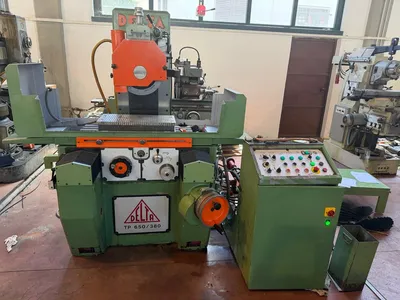

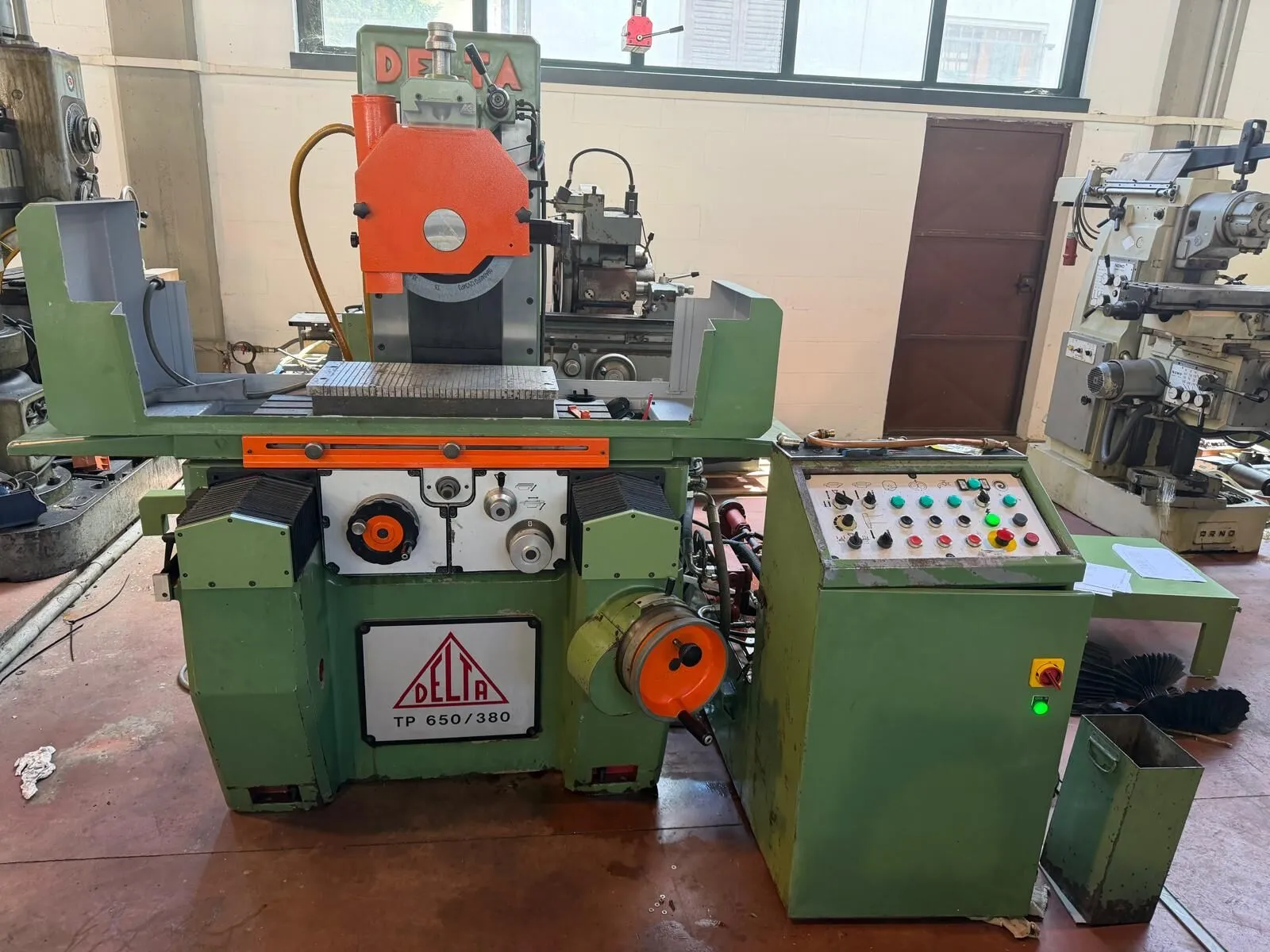

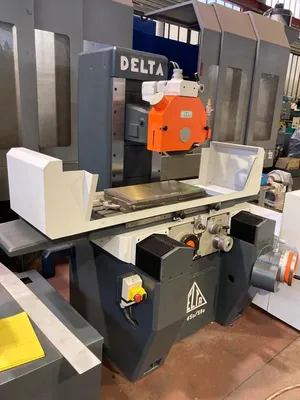

USED DELTA TP 650/380

Capacity: 650x380x375 mm [WORKING CAPACITY]
Longitudinal (X): 700 mm
Vertical (Z): 375 mm
Cross Table (Y): 380 mm
Max grinding lenght: 700 mm
Max grinding width: 380 mm
Max grinding thickness: 375 mm
Spindle nose axis - table distance: 550 mm
[TABLE]
Surface: 600x300 mm
Stroke: 700 mm
Cross speed: 0-30
[MAGNETIC TABLE]
Surface: 600x300 mm
Notes: manuale
[FEEDS]
Automatic Vertical: 0,005 - 0,03 mm/min
[WHEEL SPINDLE]
Spindle power: 5,5 mm
Rotating speed: 1400 Rpm
[WHEEL]
Wheel band thickness: 40 mm
Max wheel diameter: 350 mm
Hole diameter: 127 mm
[EXTRA]
Machine total weight: 2500 Kg
Tooling included: piano magnetico, vasca refrigerante
Availability: pront
Available in stock: si
Available under power: si
Manual dresser: Yes
Maintenance & Use books: Yes
Electrical drawings: Yes
Floor space: 2500x1800x1950 mm
