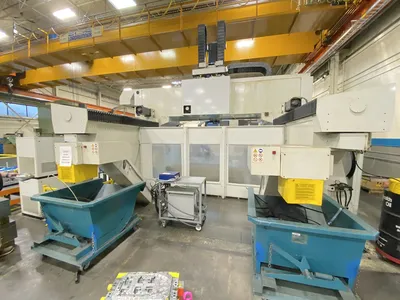

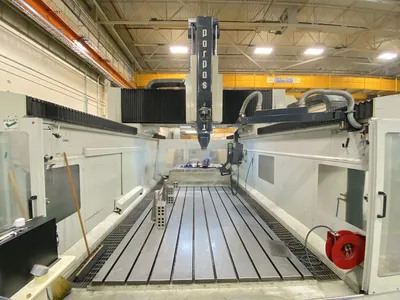

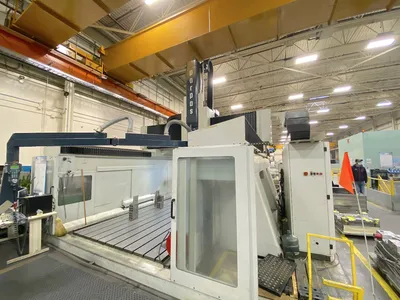

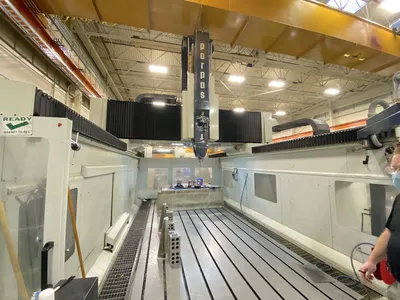

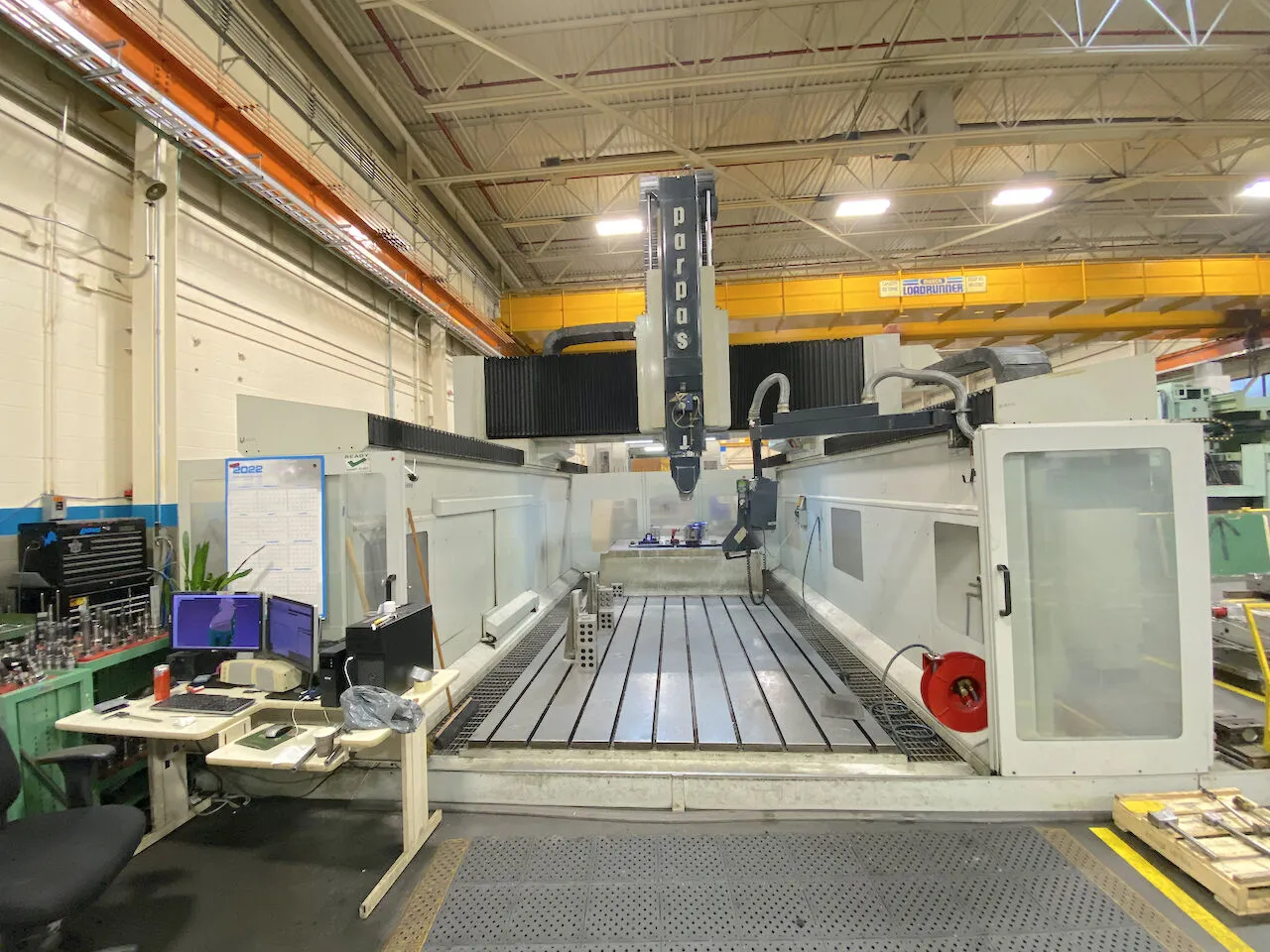

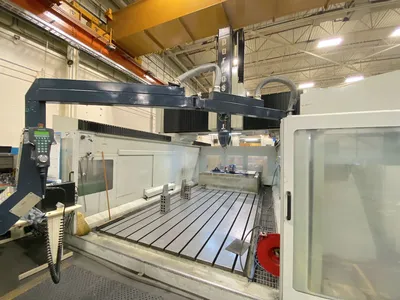

USED PARPAS OMNIA 53

Longitudinal (X): 5000 mm196,85 in
Vertical RAM (Y): 1500 mm59,06 in
Cross Crossrail (Z): 3000 mm118,11 in
Column distance: 3700 mm145,67 in
Spindle nose - table distance: 1650 mm64,96 in

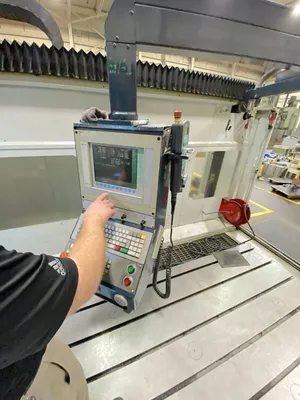

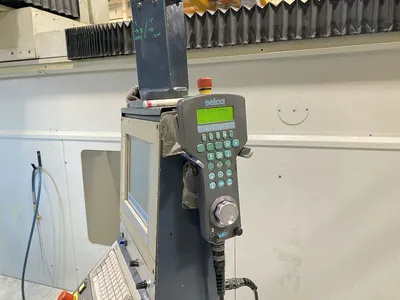

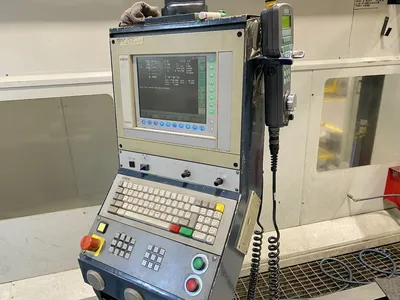

CNC: SELCA 3045PD
Rotating speed: 6000 Rpm
Spindle power: 22 Kw
Notes: Asse C per movimento in continuo delle teste 10rpm continui
X: 20 m/min787,40 ipm
Y: 20 m/min787,40 ipm
Z: 20 m/min787,40 ipm
Floorspace (LxWxH): 6000x2500 mm236,22x98,43 in
T slots number: 8 22x250

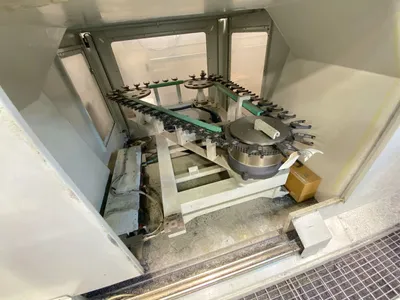

Positions: 40
Max tool diameter: 125 mm4,92 in
Max tool lenght: 250 mm9,84 in
Max tool weight: 12 Kg

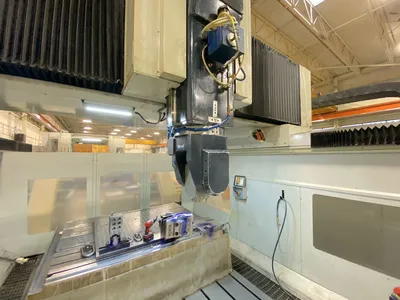

Type: Prolunga 400mm
Spindle taper: HSK63A
Max speed: 1500-6000 Rpm
Max power: 22 Kw
A axis: +/-105 °
C axis: continuo °
Max speed: 6000-16000 Rpm
Max power: 16 Kw
A axis: 144x2,5 °
C axis: continuo °
Max speed: 24000 Rpm
Max power: 22 Kw
Floor space: 6200x6000x5100 mm244,09x236,22x200,79 in
Tool presetter: SI
Workpiece touch probe: si
