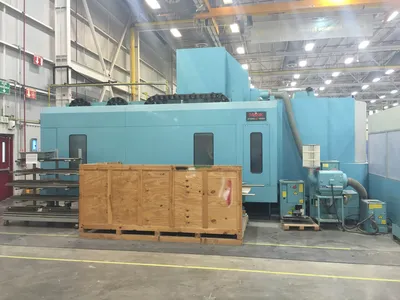

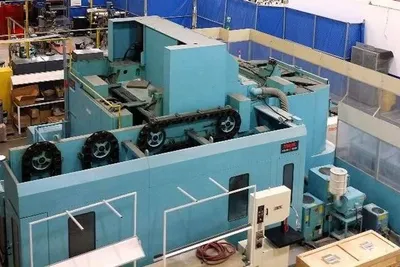

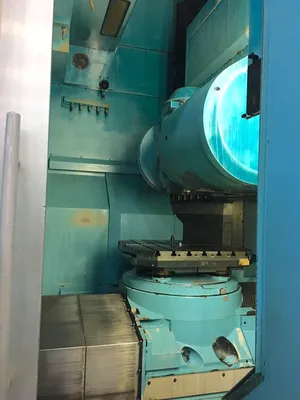

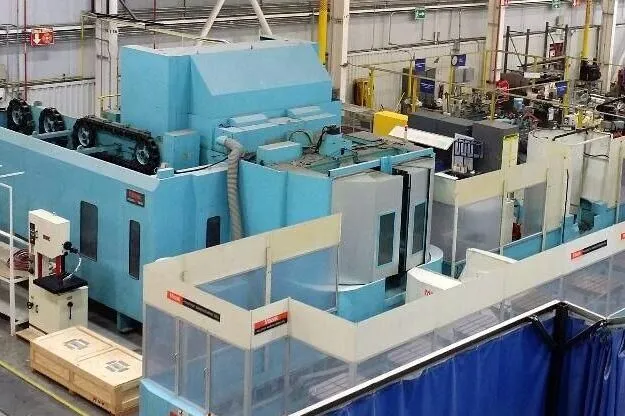

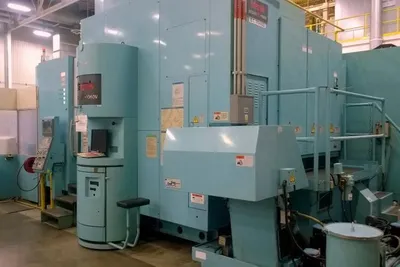

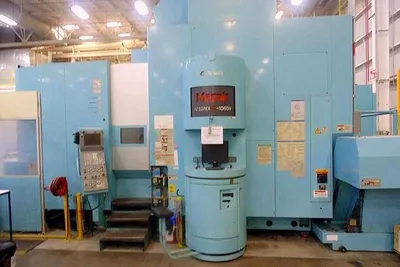

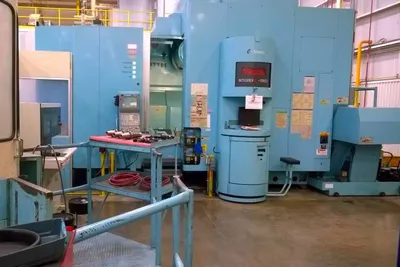

USED MAZAK INTEGREX E-1060V/8

Longitudinal (X): 1875 mm73,82 in
Vertical (Z): 1345 mm52,95 in
Cross (Y): 1060 mm41,73 in

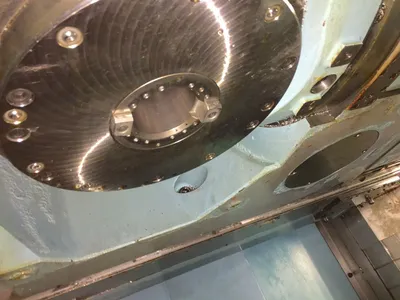

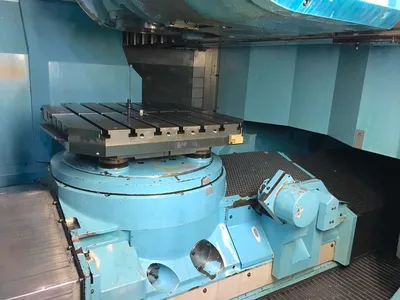

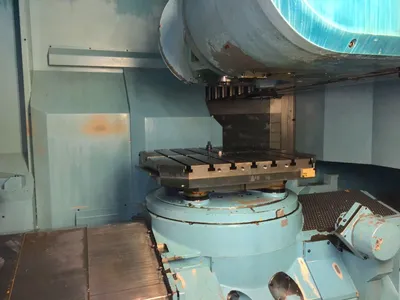

Table rotation (B): continuos positioning with resolution 0,001 °

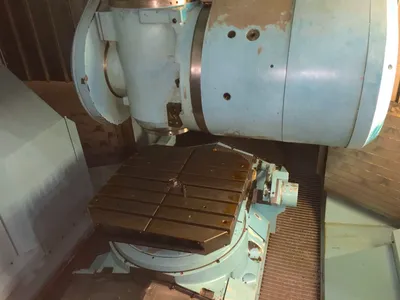

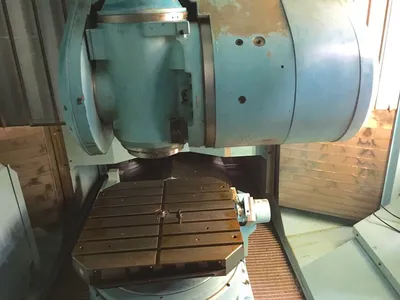

Head tilting (A): 150 [-30/+120° res. 0,0001°] °
Swing capacity: ø1250x1250 mmø49,21x49,21 in

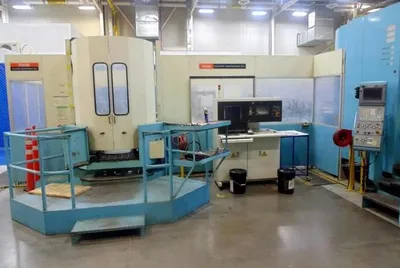

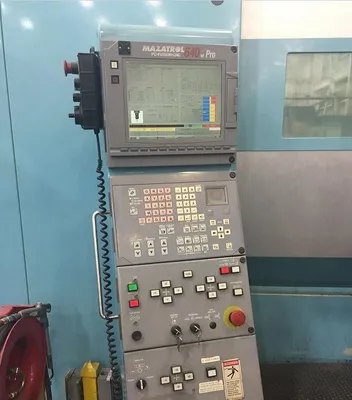

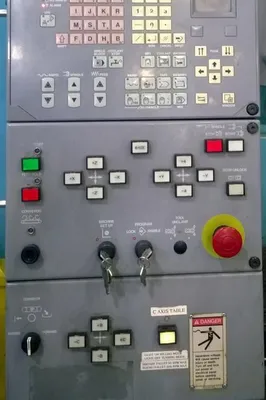

CNC: Mazatrol PC-FUSION 640M 5X E-Tower
Notes: PERFORMANCE CNC OPTIONAL 1 *STD PACKAGE THIS PACKAGE INCLUDES THE FOLLOWING: Mazak Tapping/Boring Tornado (EIA/ISO) EIA/ISO Code Input Mill-Spindle Synchronized Tapping (W/O Tool) Additional EIA/ISO Functions -Spiral Interpolation (EIA) -Pattern Rotation (EIA) -3D Cutter Compensation (EIA) -Geometric Command (EIA) -Scaling (EIA) -External Data Input/Output (EIA) Mazacc 2D High Speed Software Additional Variables (Total 600 Pairs) Inverse Time Feed G37. Automatic Tool Length Measurement x (Software for EIA use of Tool Measurement does not include tool length measurer) Sequence Number Comparison Stop Function Thread Cutting Function (G33) Additional Workpiece Coordinate System (G54.1) G00 Slope Constant
Spindle power: (1 Min/30 Min/Cont) 45/37/30 Kw
Gearbox: 2 gamme
Rotating speed: 35-10.000 Rpm
Torque: 460 Nm
Taper: ISO50 BIG PLUS
Internal coolant: si Bar
B: 0-500 Rpm
Rapid X: 40 m/min1.574,80 ipm
Rapid Y: 40 m/min1.574,80 ipm
Rapid Z: 40 m/min1.574,80 ipm
Rapid B: 18 m/min708,66 ipm
Rapid C: 30 m/min1.181,10 ipm
Floorspace (LxWxH): 800x800 mm31,50x31,50 in
Capacity: 2200 Kg
Accuracy (B axis): 0,001 °
Pallet number: 10

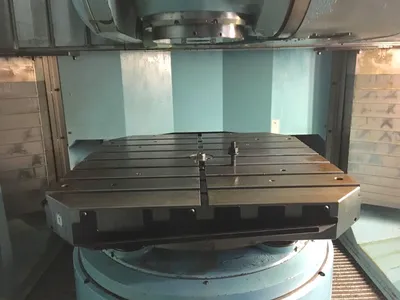

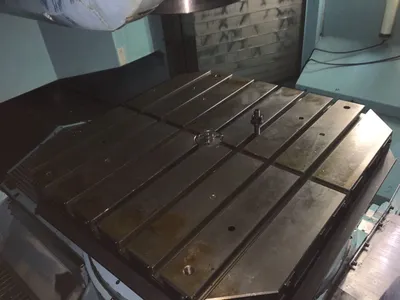

Pallet surface: 800x800 mm31,50x31,50 in
Capacity: 2200 Kg

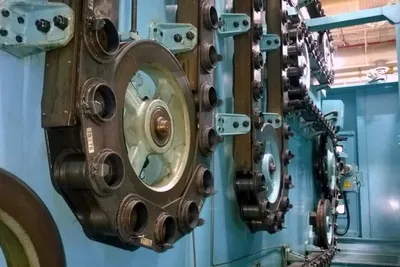

Positions: 160
Max tool diameter: 135 mm5,31 in
Max diam with free adiacent space: 262 mm10,31 in
Max tool lenght: 500 mm19,69 in
Max tool weight: 30 Kg
Tool taper: ISO50 BIG PLUS
Tool changing time: (T/T) 1.8 sec.
Total power supply: (30 Min/Cont) 108/99 HP
Machine total weight: 38000 (escluso cambio pallet esterno) Kg

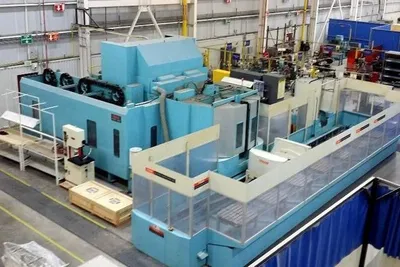

Floor space: 5320x8242x4400 (12828x11915x4400 con Palletech) mm209,45x324,49x173,23 (505,04x469,09x173,23 con Palletech) in

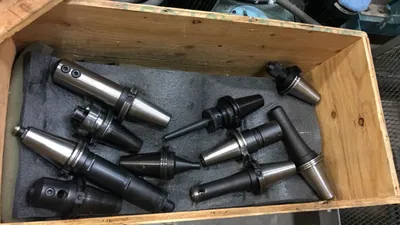

Tooling included: list available upon request
Workpiece touch probe: Renishaw RMP10
Relevant updates made on the machine: new milling spindle 10/2015

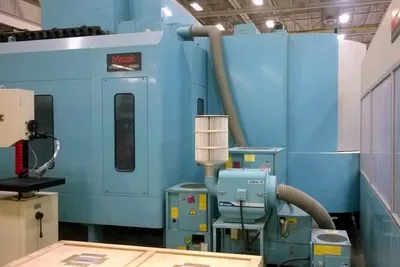

Mist extractor: si
Housing: integrale
Tool presetter: si
Filtration unit: si
High Pressure: si
