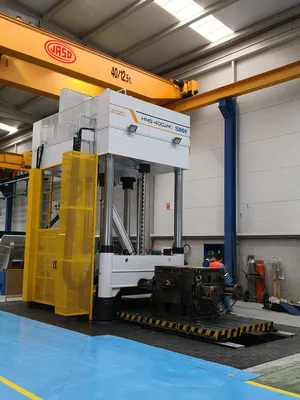

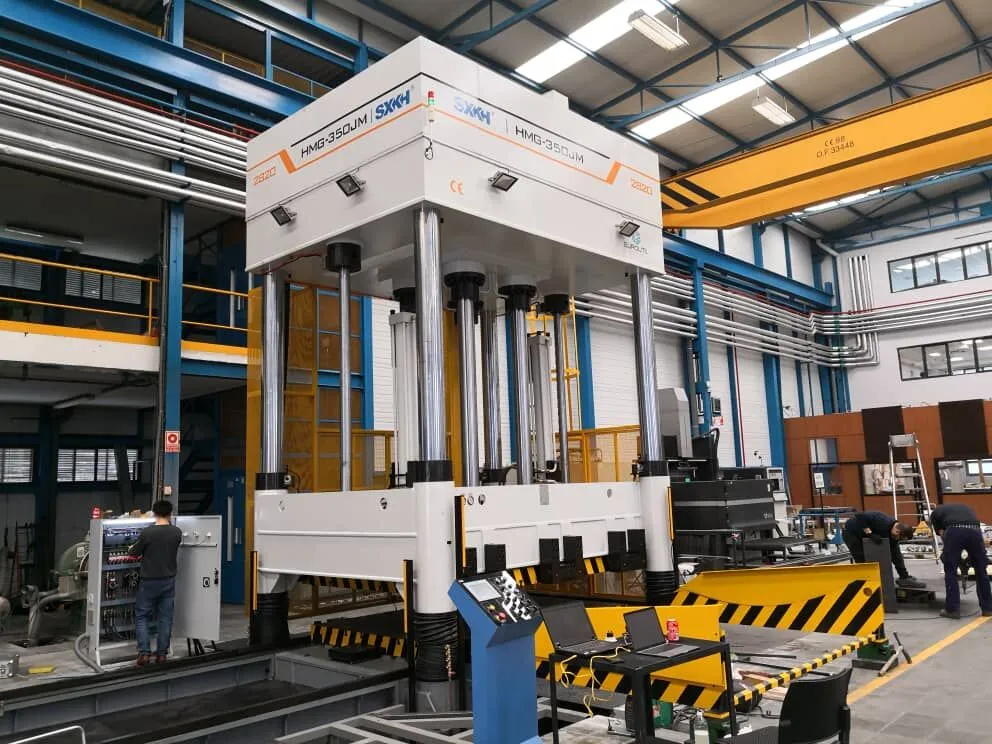

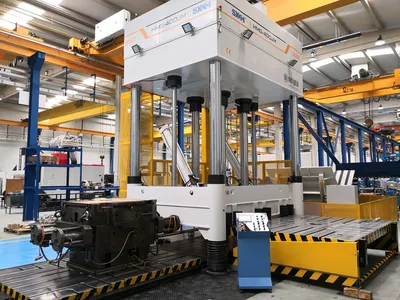

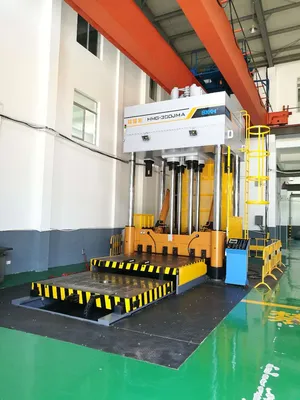

USED SXKH 300ES2520

Capacity: 300Ton 2500x2000 mm [WORKING CAPACITY]
Floorplates size (LxWxH): 2500x2000 mm
Column distance: 2300 / 2870 mm
Min discance between plates: 400 mm
Max distance beween plates: 2500 mm
Max weight on lower plate: 22000 Kg
Max weight on upper plate: 42000 Kg
Max closing strenght: 3000 kN
Max opening strenght: 700 kN
Lower table overturning: opt. 70 °
Upper table overturning: 180 °
Lower table rotation: opt. 360 °
Notes: Part Make Display Screen Siemens HMI - Germany Computer (PLC) Siemens S7-1200 – Germany Main Servo Motor PHASE – ITALY Servo Drive Delta- Taiwan China Oil Motor Eaton-US Solenoid Valves Vickers – US Relief Valves Vickers – US Seal Rings NOK - Japan Contactor Schneider - France Encoders Kubler - Germany Limit Switches Omron - Japan Safety light Curtain Sick-Germany
[CNC]
CNC: Siemens PLC S7-1200
Measuring system: Encoders
[FEEDS]
Approach speed: 80 mm/sec
Working speed: 8 mm/sec
Notes: Two Mechanical Safety locks at each side to ensure the upper platen can be locked at any position when upper platen goes up or down. This Device is mandatory by EC rules.
[EXTRA]
Total power supply: 30 Kw
Machine weight: 61.000 kg
Floor space: 6800x3000x7300 mm
Notes: 5.1 There are totally four encoders at each corners of the moving base. 5.2 The PLC screen shows the state of how these four encoders working continuously. The data will be shows for the whole strokes; this means the parallelism between two platens can be monitor continuously. 5.3During the mold protection function if the difference is more than the setting, the machine will stop immediately. This means if the employee leave some tools inside mold, when the upper mold touch the tools, the machine will stop immediately. This function will help to protect the mold before damaged.
