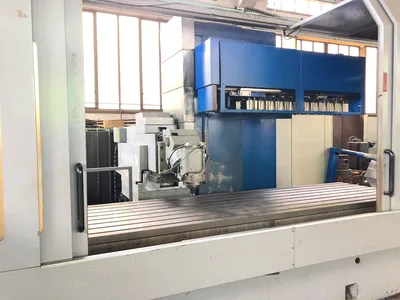

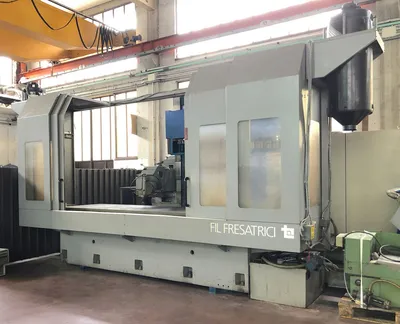

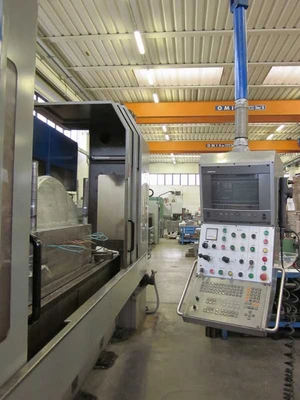

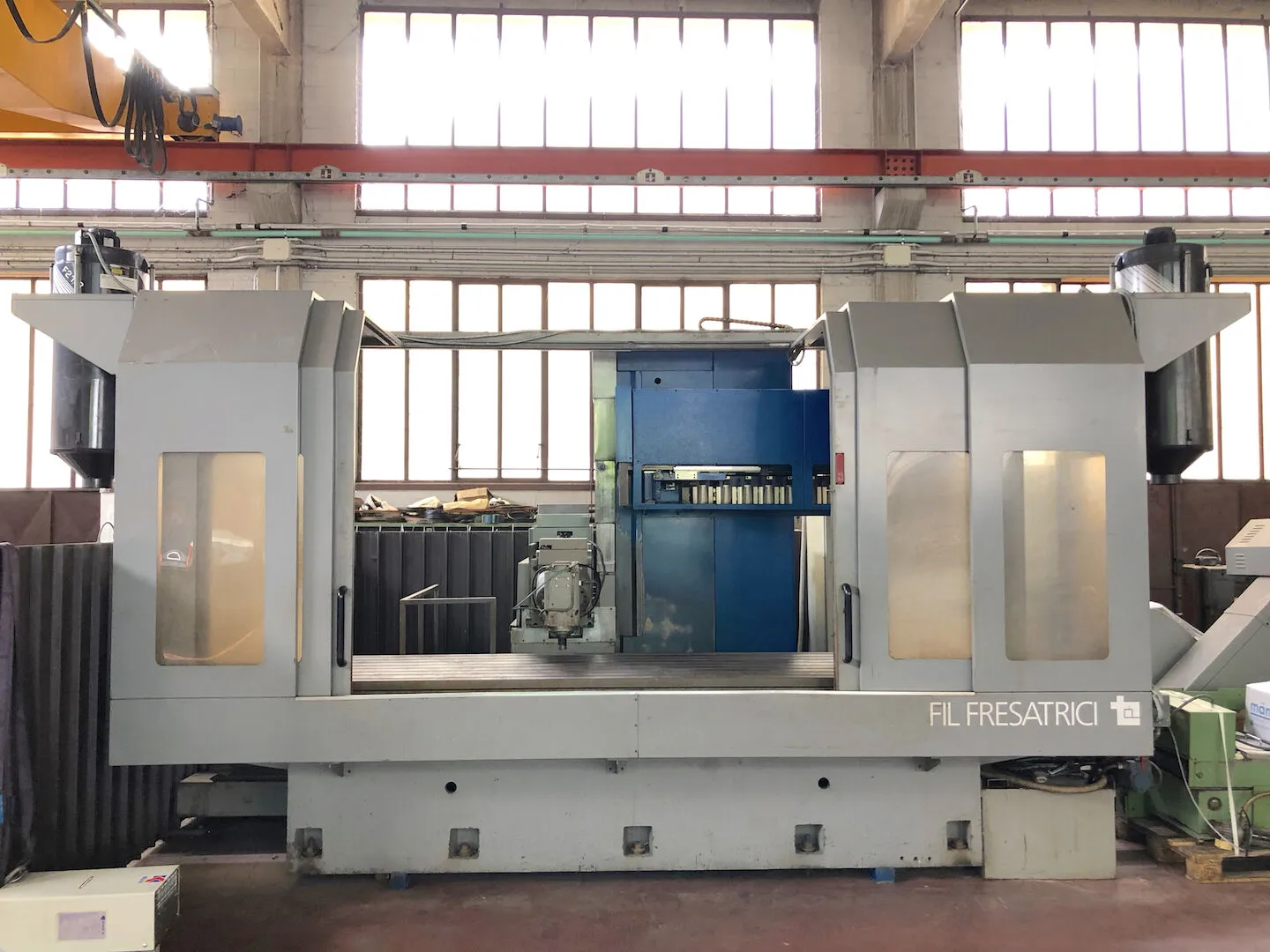

USED FIL FSM 300

Capacity: 3000x1000x1100 mm [WORKING CAPACITY]
Longitudinal (X): 3000 mm
Vertical (Y): 1100 mm
Cross RAM (Z): 1000 mm
[CNC]

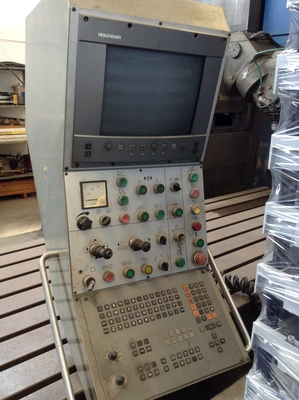

CNC: Heidenhain TNC430
[SPINDLE]
Spindle power: 16,5 mm
Rotating speed: 50-4000 Rpm
Taper: ISO50 DIN69871
Gearbox: 50-215 / 215-4000
[FEEDS]
Rapid X: 10 m/min
Rapid Y: 10 m/min
Rapid Z: 10 m/min

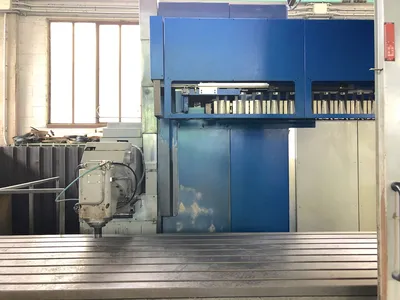

[ATC]
Positions: 24
Max tool diameter: 120 mm
Max diam with free adiacent space: 200 mm
Max tool lenght: 300 mm
Max tool weight: 15 Kg
Tool taper: ISO50 DIN69871
[FIXING TABLE]
Floorspace (LxWxH): 3500x1000x950 mm
Capacity: 20.000 Kg/mq
T slots number: 8

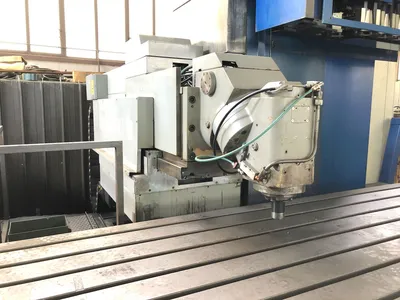

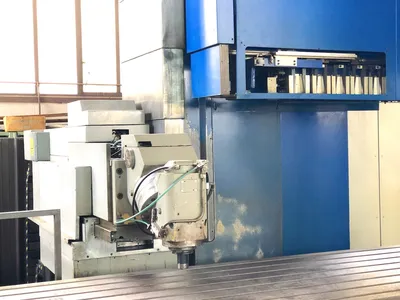

[HEAD 1]
A axis: 180 °
Spindle taper: ISO50
Max speed: 4000 Rpm
Type: TA45/2 Orizzontale/Verticale automatica
[EXTRA]
Machine total weight: 25350 Kg
Housing: integrale
Maintenance & Use books: Yes

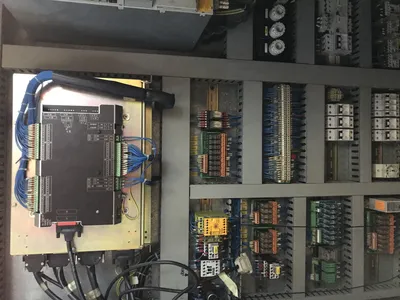

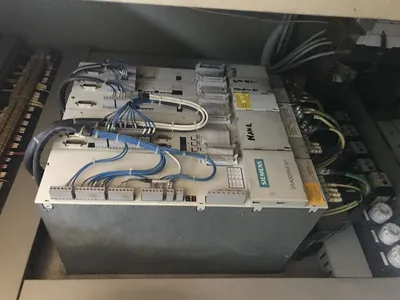

Electrical drawings: Yes
CE Certification: Yes
Chip conveyor: longitudinale
Mist extractor: 2
Availability: pronta
Available in stock: si
Chiller: si
Floor space: 7480x4257x3240 mm
