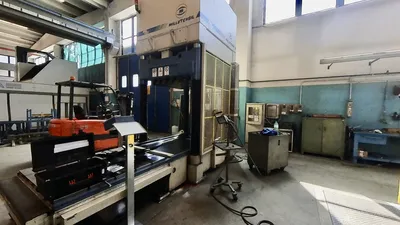

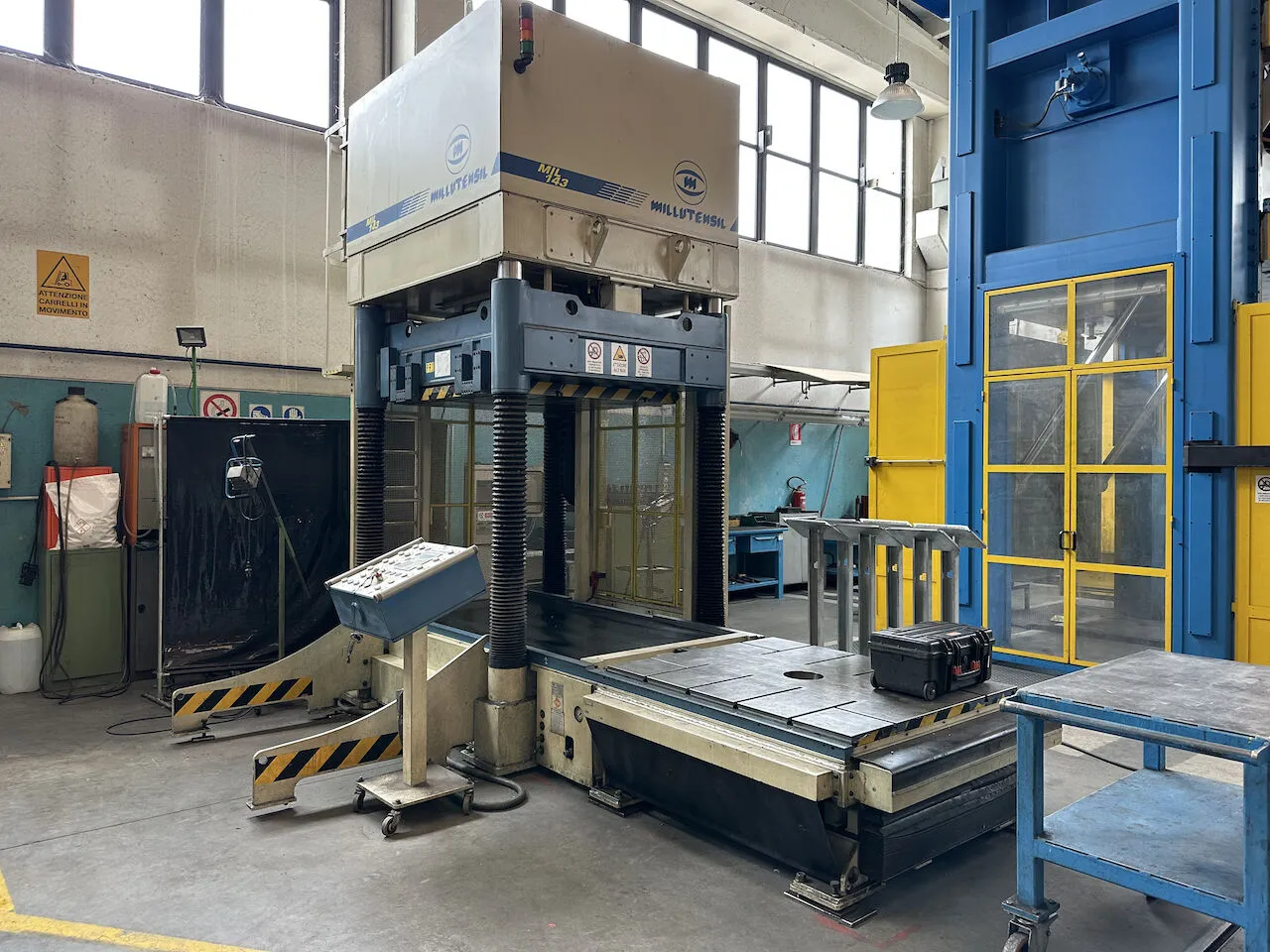

USED MILLUTENSIL MIL143

Capacity: 1400x1200 mm [WORKING CAPACITY]
Floorplates size (LxWxH): 1400x1200 mm
Column distance: 1300x1540 mm
Max distance beween plates: 1100 mm
Min discance between plates: 250 mm
Upper table overturning: 100 °
Max weight on lower plate: 10000 Kg
Max weight on upper plate: 5000 Kg
Max closing strenght: 1000 kN
Max opening strenght: 220 kN
[FEEDS]
Approach speed: 50-65 mm/sec
Working speed: 8 mm/sec
Return speed: 35-50 mm/sec
[EXTRA]
Total power supply: 7,5 Kw
Machine weight: 14000 kg
