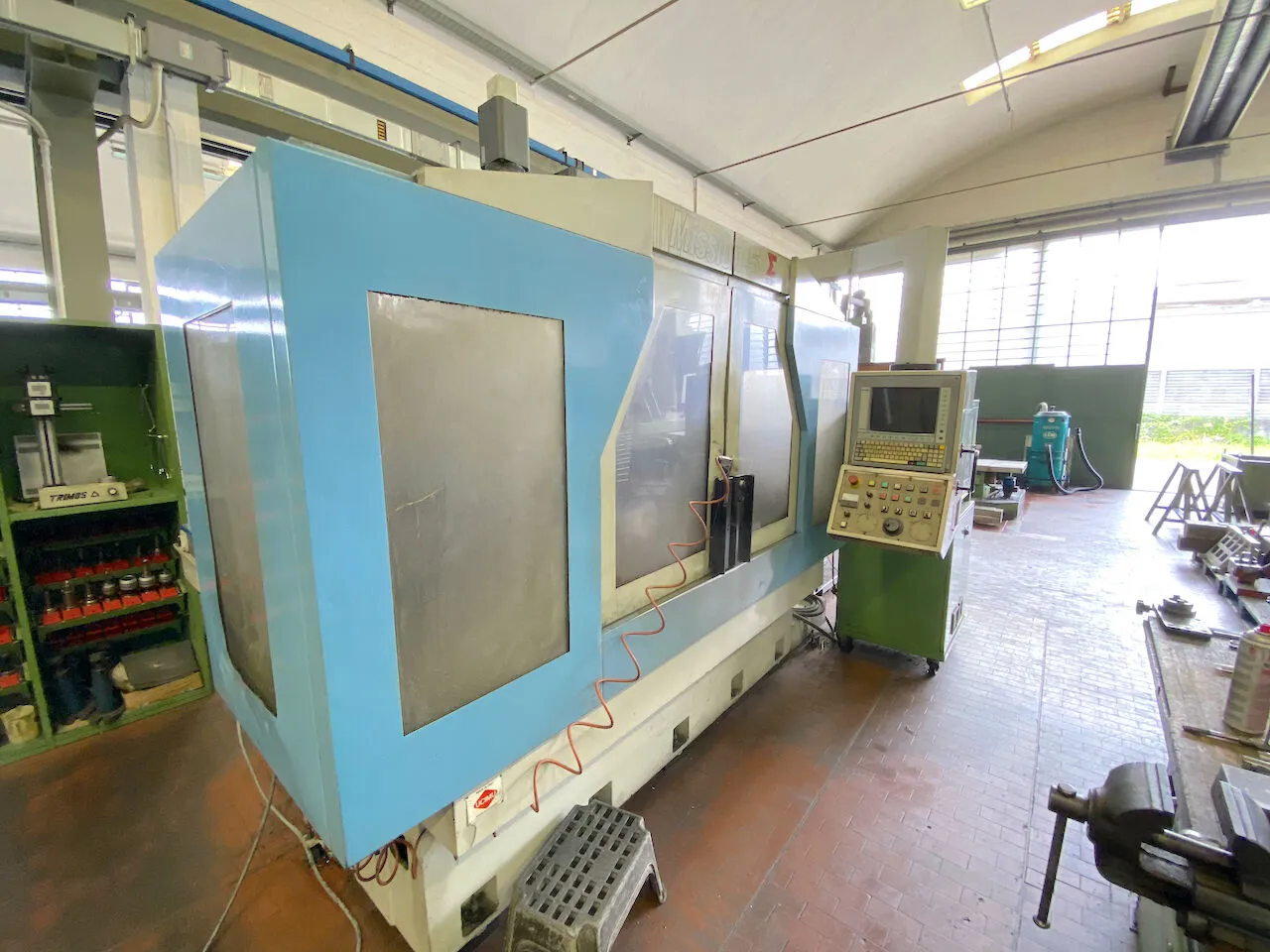

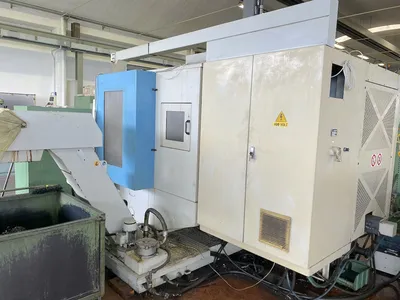

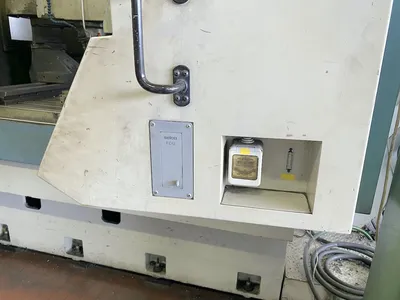

USED SIGMA MISSION 5
Specs
Capacity: 1250x600x685 mm [WORKING CAPACITY]
Longitudinal (X): 1250 mm
Vertical (Z): 685 mm
Cross (Y): 600 mm
Axes support: ASSI X E Y SU PATTINI A RICIRCOLO DI SFERE, ASSE Z PRISMATICHE SCORRIMENTO TURCITE
[CNC]

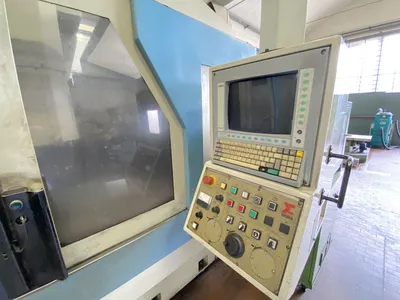

CNC: SELCA 3040
[SPINDLE]
Spindle power: 11,5/16,5 Kw
Rotating speed: 40-8000 Rpm
Torque: 235 Nm
Taper: ISO40
[FEEDS]
Rapid X: 24 m/min
Rapid Y: 24 m/min
Rapid Z: 15 m/min

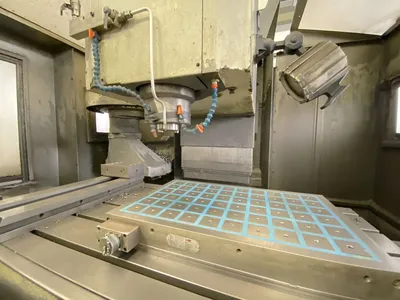

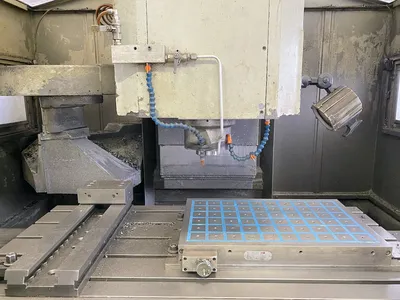

[TABLE]
Floorspace (LxWxH): 1400x650 mm
T slots number: 5x18x125
[ATC]
Positions: 21
Max tool diameter: 80 mm
Max tool lenght: 300 mm
Max tool weight: 6 Kg
Tool taper: ISO40 DIN69871
[EXTRA]
Total power supply: 25 HP
Machine total weight: 8000 Kg
Floor space: 2860+1260(evacuatore) x 4400x 3155 mm
High Pressure: refregerante interno al mandrino

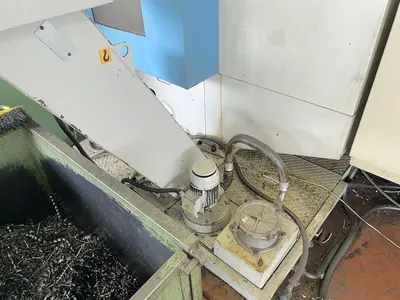

Chip conveyor: Yes
