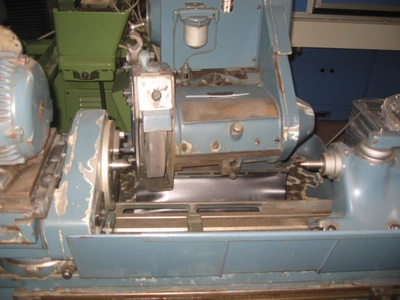

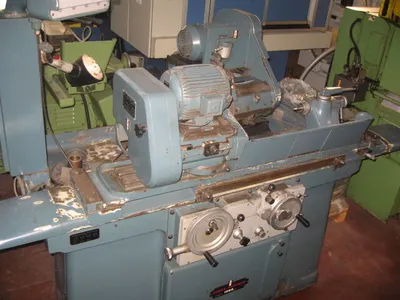

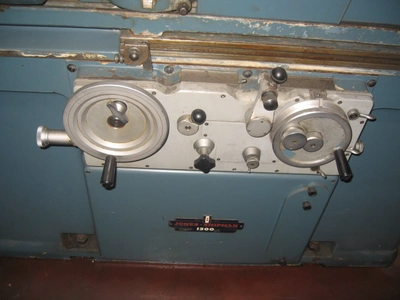

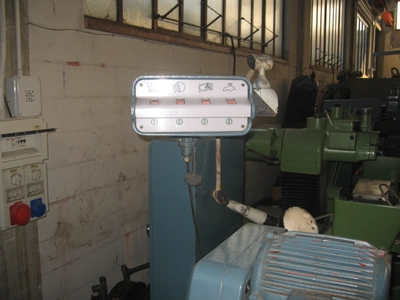

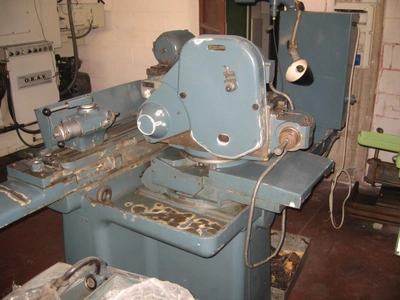

USED JONES & SHIPMAN 1300 EIT

Capacity: ø254x685 mm [WORKING CAPACITY]
Centres distance: 685 mm
Centres height: 127 mm
Max grinding lenght: 685 mm
Max grinding diameter: 254 mm
Max internal diameter: 19-50 mm
[WHEELHEAD]
External spindle speed: 1750 Rpm
External spindle power: 2 Kw
Internal spindle power: 2 Kw
Internal spindle speed: 2300 Rpm
Notes: girevole 360°
[LEFT WHEEL]
Wheel band thickness: 25 mm
Max wheel diameter: 300 mm
Hole diameter: 127 mm
[TABLE]
Cross speed: 76-3660 mm/min
Stroke: 686 mm
[WORKPIECE HEAD]
Rotating speed: 40-320 Rpm
Tilt: 90 °
[EXTRA]
Machine total weight: 2400 Kg
Floor space: 3100x1500 mm

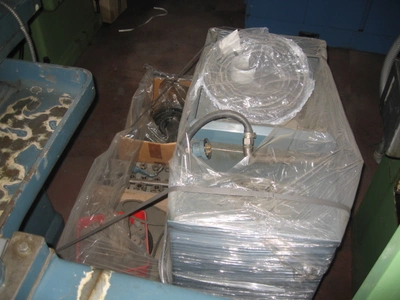

Tooling included: apparecchio per interni
Availability: pronta
Available in stock: si
