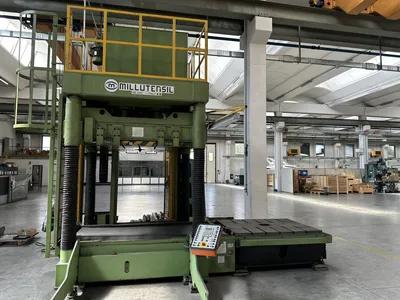

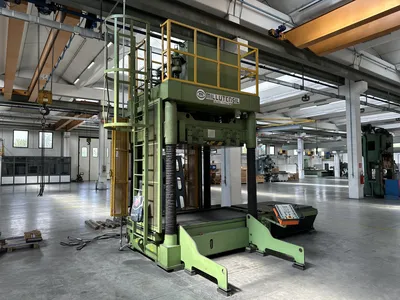

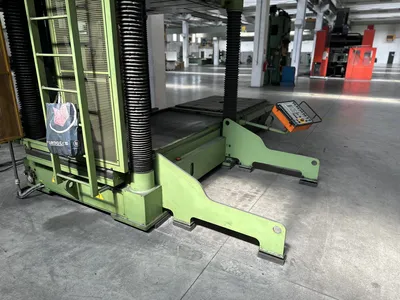

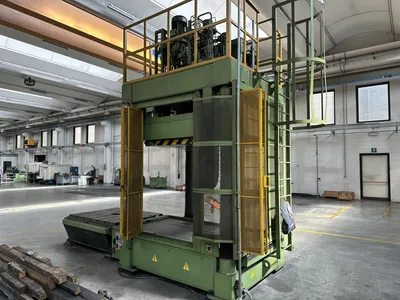

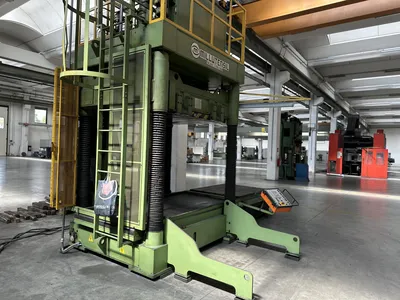

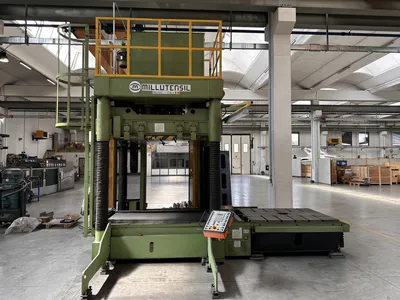

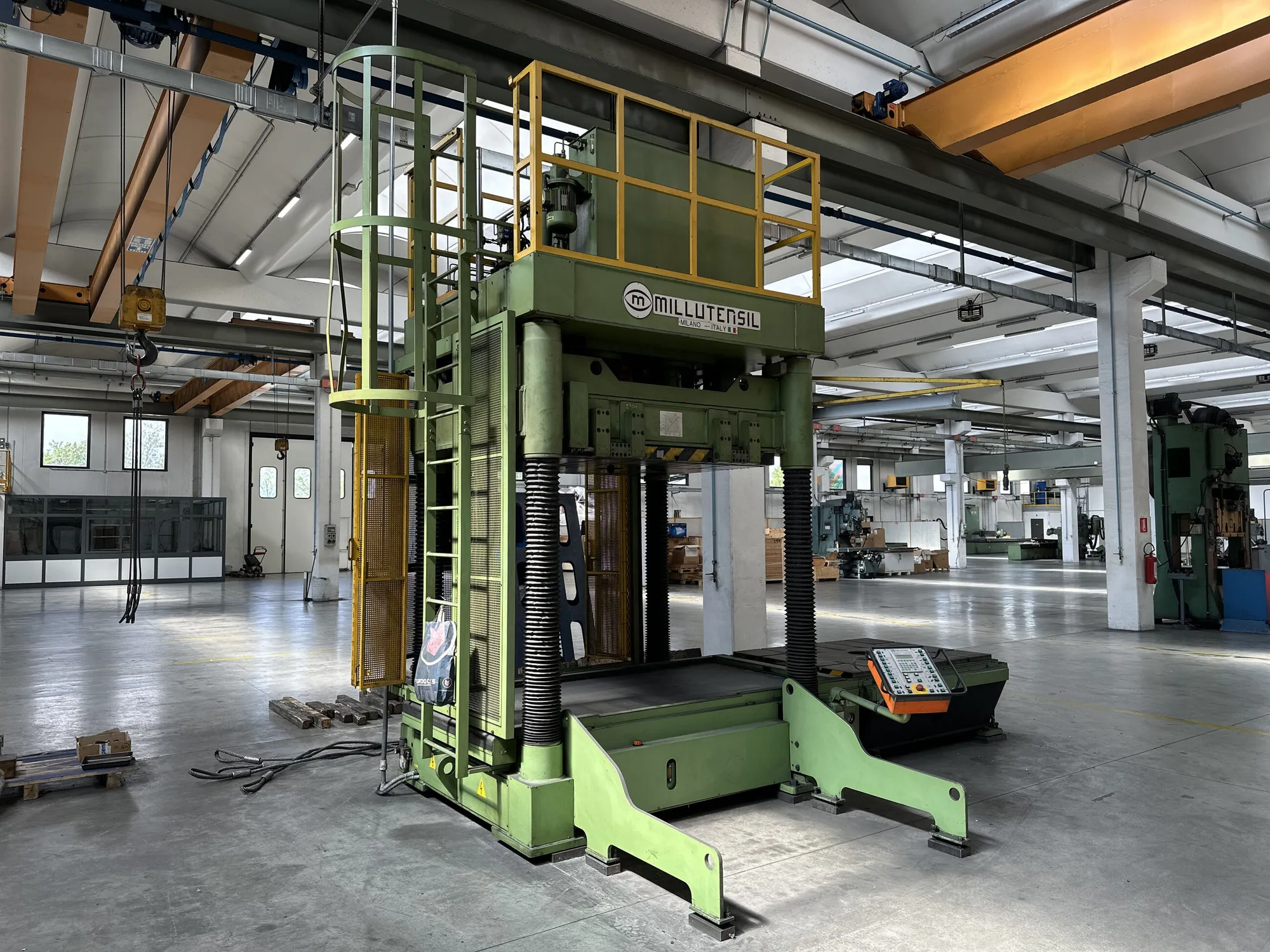

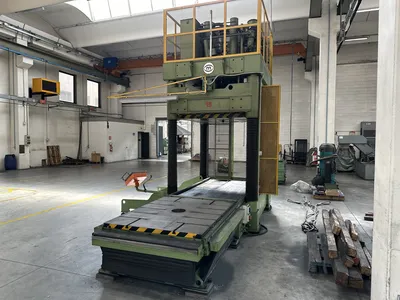

USED MILLUTENSIL MIL162

Capacity: 1600x1300mm 100Ton mm [WORKING CAPACITY]
Floorplates size (LxWxH): 1600x1300 mm
Max weight on lower plate: 16000 Kg
Max weight on upper plate: 8000 Kg
Max closing strenght: 1000 kN
Max opening strenght: 250 kN
Upper table overturning: 100 °
Lower table overturning: +/-70 °
[FEEDS]
Approach speed: 65-80 mm/sec
Working speed: 8 mm/sec
Return speed: 35-50 mm/sec
[CNC]

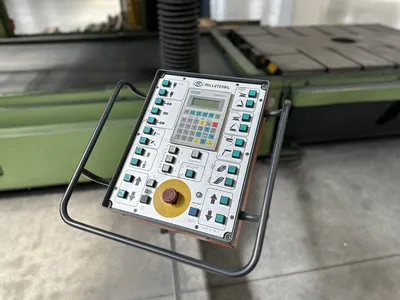

CNC: PLC SIEMENS COROS OP5
[EXTRA]
Total power supply: 11 Kw
Machine weight: 18000 kg
Notes: right table exit
Floor space: 5310x3000x4100 mm
