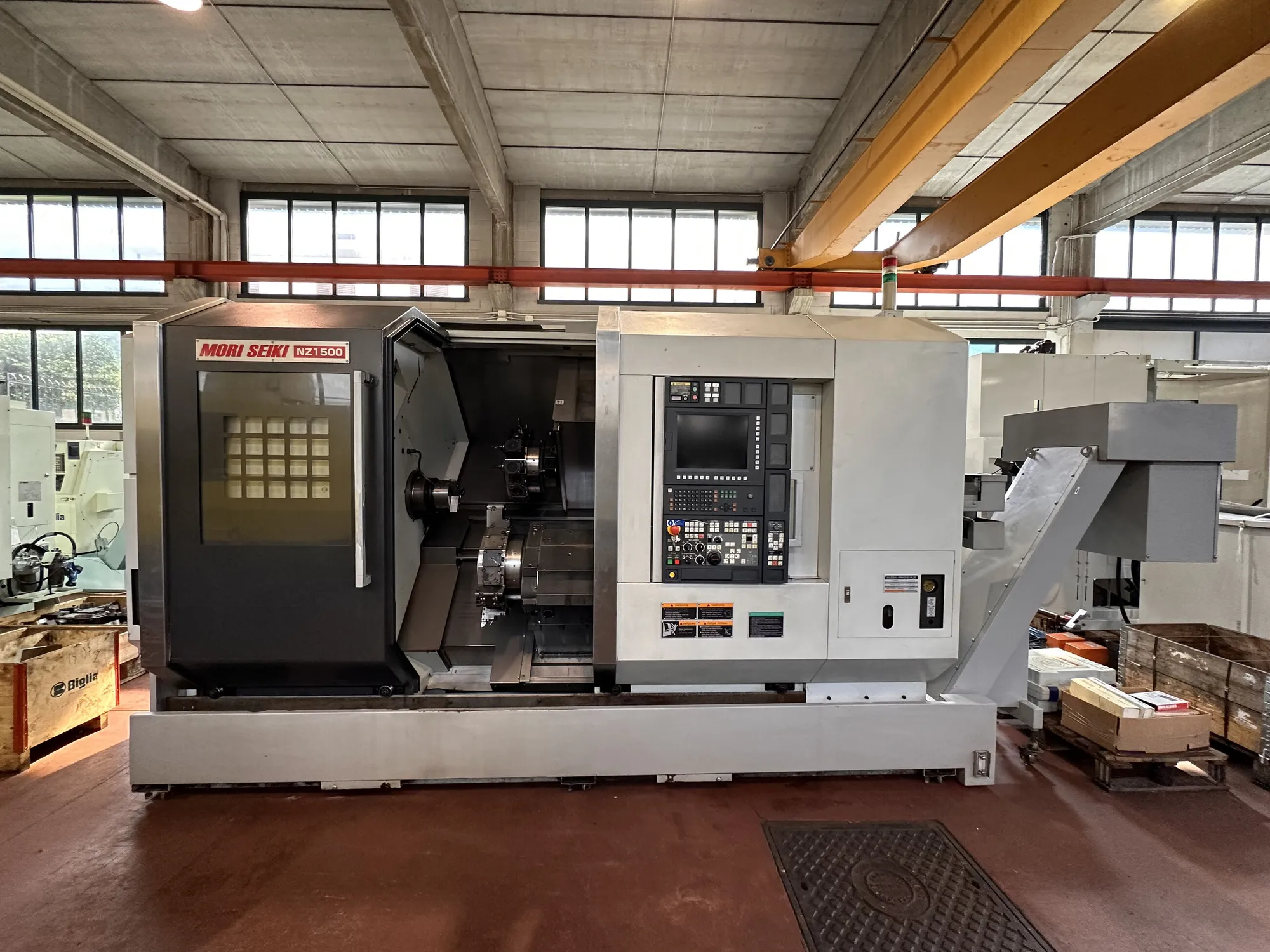

USED MORI SEIKI NZ1500T2Y

Capacity: ø320/52x260 mm [WORKING CAPACITY]
Max bar working diameter: 52
Max turning diameter: 320 mm
Notes: max swing 800mm - distanza mandrini 1130mm
[MAIN SPINDLE]
Max rotation speed: 6000 rpm
Spindle nose: ASA5”
Spindle hole: 61 mm
Internal bearing diameter: 100 mm
Accuracy (C axis): 0,001 °
C axis speed: 6000 Rpm
Max power: 22 Kw
[SUBSPINDLE]
Max rotation speed: 6000 rpm
Spindle nose: ASA5”
Spindle hole: 61 mm
Internal bearing diameter: 100 mm
Max power: 22 Kw
Accuracy (C axis): 0,001 °
C axis speed: 6000 Rpm
Automatic B axis positioning: 920 mm
Chuck diameter: 152,4 mm

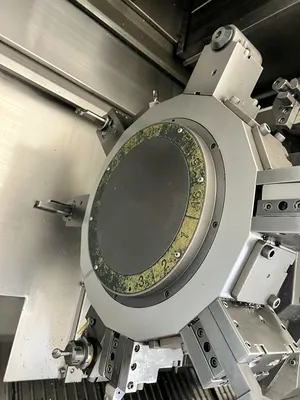

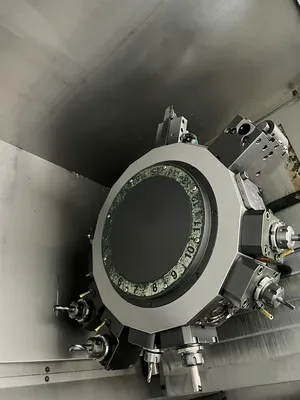

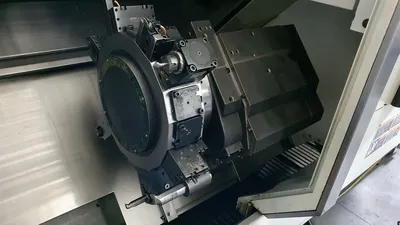

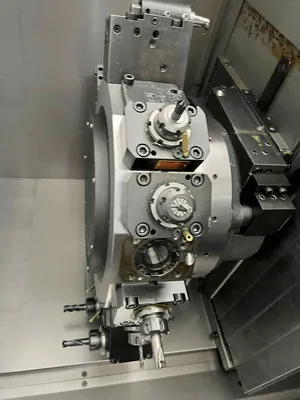

[TURRET 1]
Positions number: 16
Axis stroke Y1: +65 / -45 mm
Axis stroke X1: 210 mm
Axis stroke Z1: 810 mm
Driven tools power: 7,5 Kw
Driven tools speed: 6000 rpm
Rapid feed X1: 30 m/min
Rapid feed Z1: 50 m/min
Rapid feed Y1: 20 m/min
Number of driven stations: 16
[TURRET 2]
Positions number: 16
Number of driven stations: 16
Driven tools speed: 6000 rpm
Driven tools power: 7,5 Kw
Axis stroke X2: 210 mm
Rapid feed X2: 30 m/min
Axis stroke Z2: 810 mm
Rapid feed Z2: 50 m/min

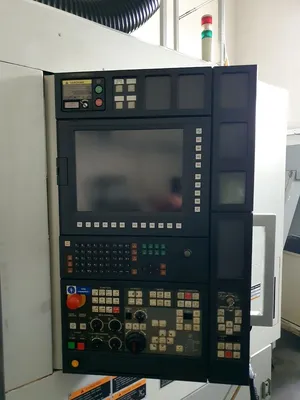

[CNC]
Drives: Fanuc
CNC: MSX701 MAPPS III
[EXTRA]
Floor space: 3930x2710 mm
Machine total weight: 8100 Kg
Total power supply: 77 kVA Kw
Tool presetter: si
Bar feeder: si
Driven toolholders: 2
