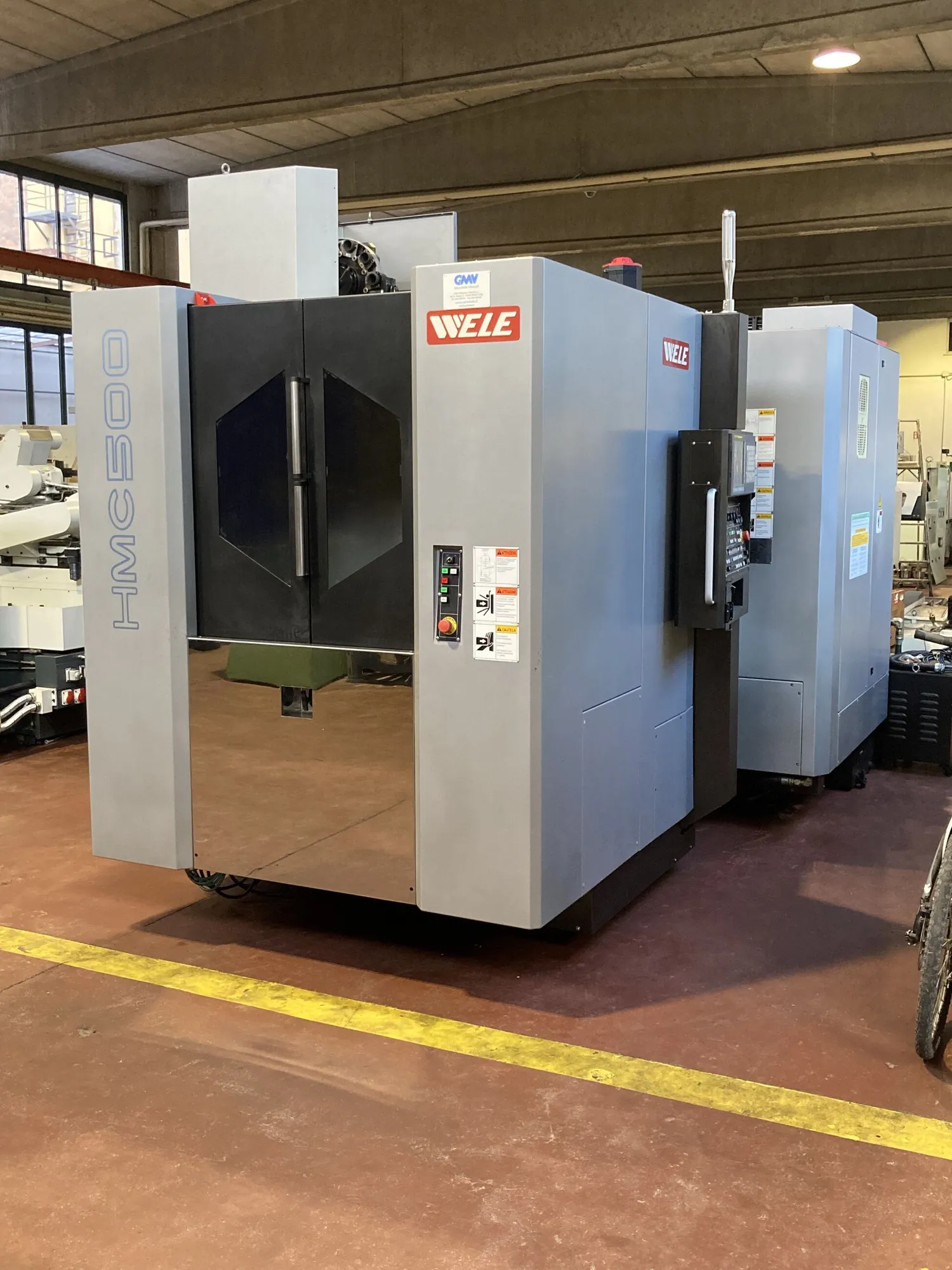

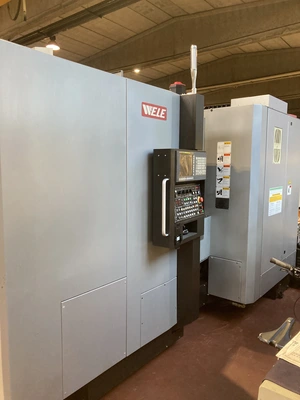

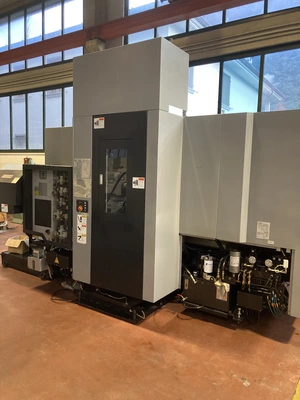

USED WELE HMC500

Capacity: ø750x900 mm [WORKING CAPACITY]
Longitudinal (X): 640 mm
Vertical (Z): 610 mm
Cross (Y): 680 mm
Table (B): 0,001 °
Max workpiece size (LxWxH): ø750x900 mm

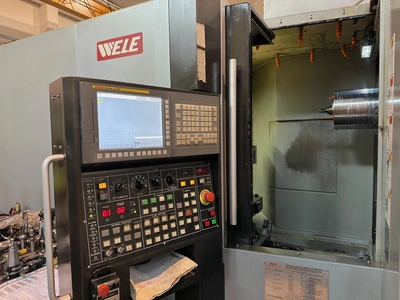

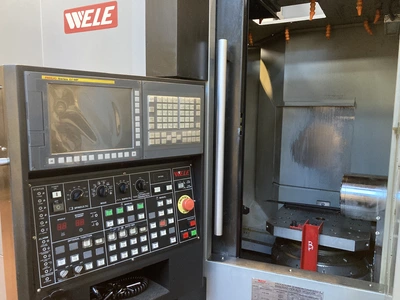

[CNC]
Measuring system: Righe ottiche
Notes: RS232, Volantino Elettronico

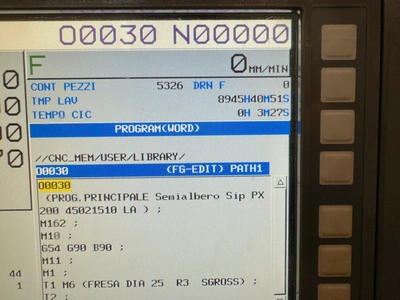

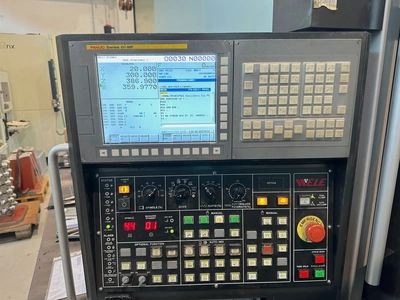

CNC: Fanuc 0iMF

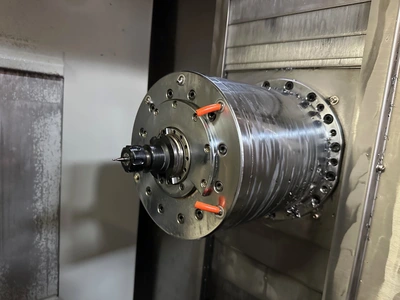

[SPINDLE]
Spindle power: 18,5/22 Kw
Rotating speed: 40-15.000 Rpm
Torque: 167 Nm
Taper: BT40
Spindle transmission: Elettromandrino
Internal coolant: 20 Bar
[FEEDS]
Rapid X: 60 m/min
Rapid Y: 60 m/min
Rapid Z: 60 m/min
X: 20 m/min
Y: 20 m/min
Z: 20 m/min
B: 33,3 Rpm
Notes: Accelerazione 1 G

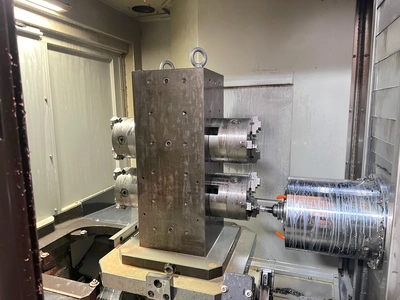

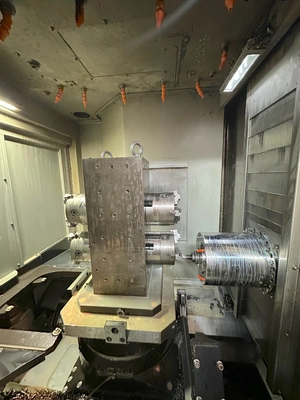

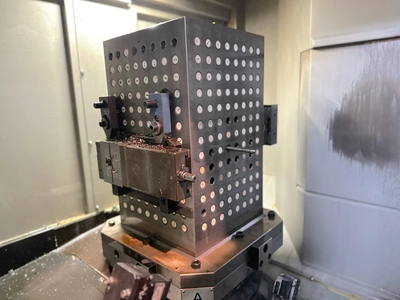

[TABLE]
Floorspace (LxWxH): 500x500 mm
Capacity: 500 Kg
Accuracy (B axis): 0,001 °
[AUTO PALLET CHANGER (APC)]
Pallet number: 2
Pallet surface: 500x500 mm
Rotating speed: 33,3 Rpm
Capacity: 500 Kg
Pallet changing time: 7 sec

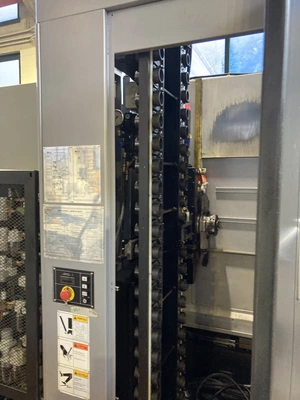

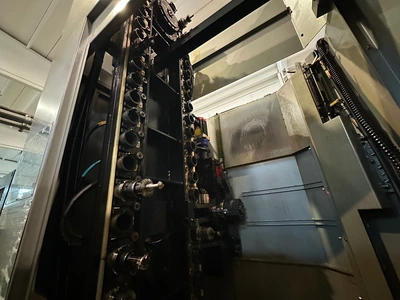

[ATC]
Positions: 60
Max tool diameter: 80 mm
Max diam with free adiacent space: 160 mm
Max tool lenght: 400 mm
Max tool weight: 8 Kg
Tool changing time: 1 sec.
[EXTRA]
Machine total weight: 12000 Kg
Floor space: 5812x2760x2727 mm
Tooling included: Pistola lavaggio, scambiatore calore per armadio elettrico, lampada lavoro e fine ciclo
High Pressure: 20Bar
Filtration unit: impianto refrigerante 520lt con pompa di lavaggio con adduzione refr attraverso il mandrino
Tool presetter: Laser Blum
Maintenance & Use books: Yes

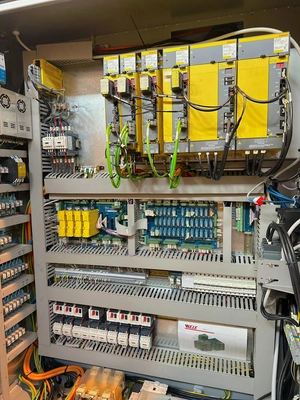

Electrical drawings: Yes
CE Certification: Yes
Availability: Pronta
