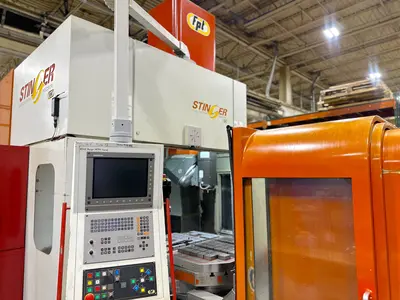

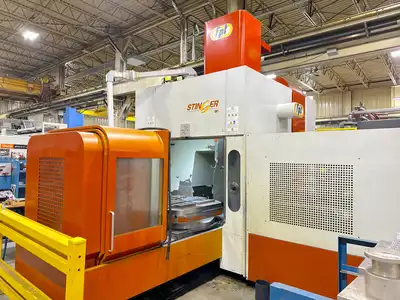

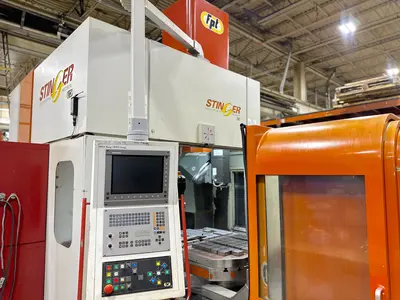

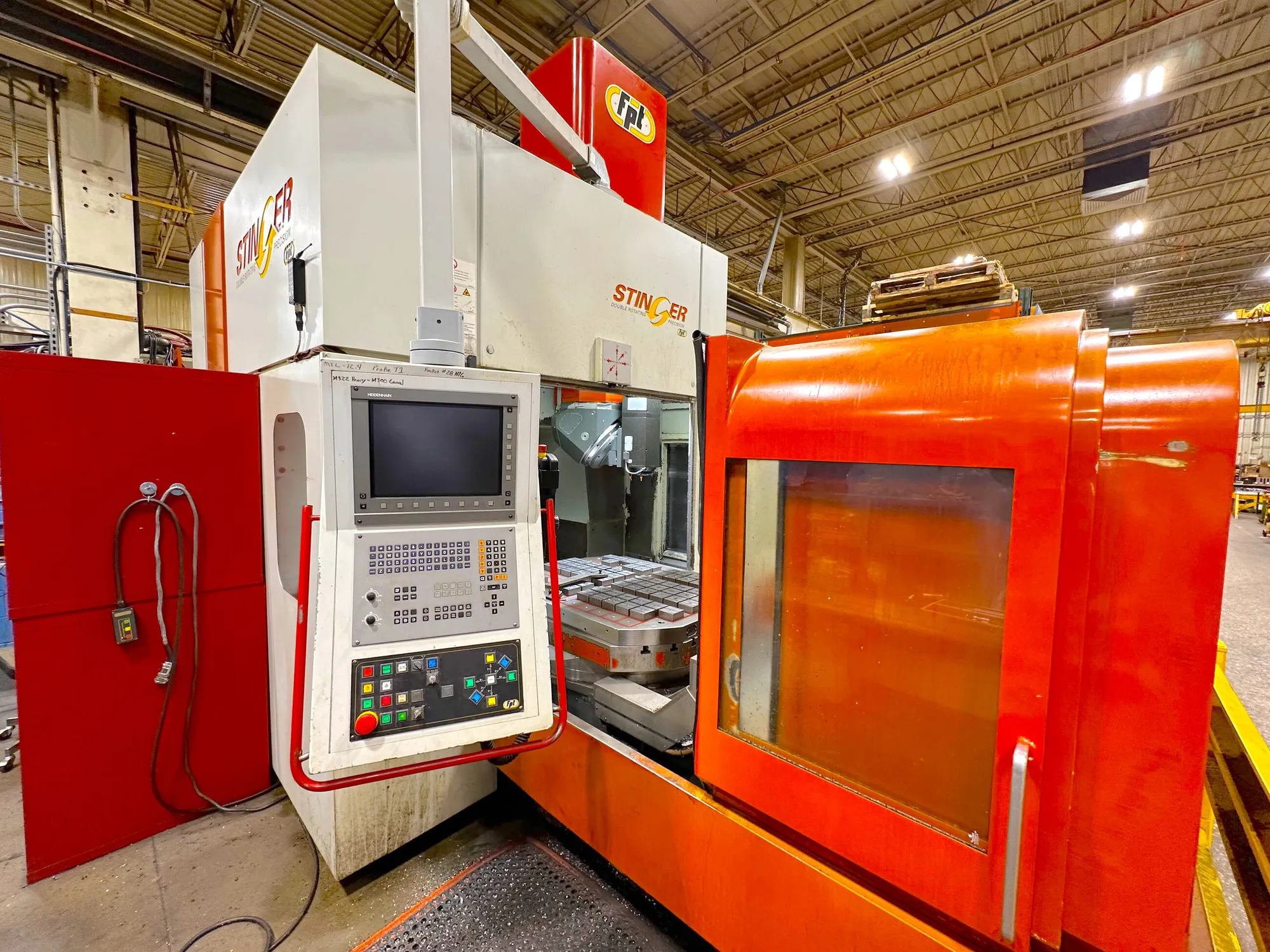

USED FPT STINGER

Capacity: 1750x1400x600 mm [WORKING CAPACITY]
Longitudinal (X): 1750 mm
Vertical (Z): 600 mm
Cross (Y): 1400 mm
Table rotation (B): ∞ °
Swing capacity: 1300 mm
Head tilting (A): ∞ / 0,001 °
Distance between columns: 1430 mm
[CNC]

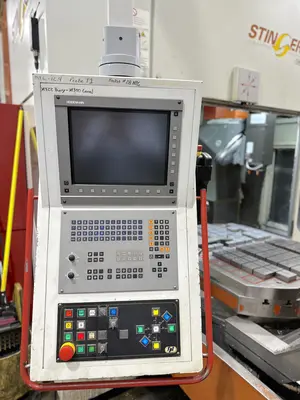

CNC: Heidenhain iTNC530
Drives: Siemens

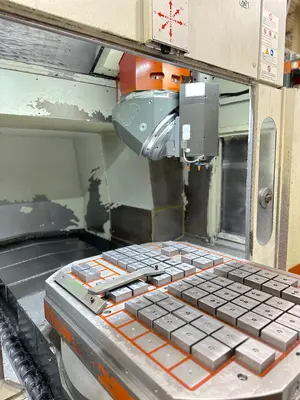

[HEAD 1]
Type: TULCE
Spindle taper: HSK63A
A axis: ∞ /0,001 °
Max torque: 101 Nm
Max speed: 18.000 Rpm
Max power: 18/22 Kw
Coolant: CTS60 Bar
[SPINDLE]
Spindle power: 18/22 Kw
Rotating speed: 18.000 Rpm
Torque: 101 Nm
Taper: HSK63A
Spindle transmission: Electrospindle
Internal coolant: CTS60 Bar
[FEEDS]
Rapid X: 35 m/min
Rapid Y: 35 m/min
Rapid Z: 35 m/min
Axes acceleration: 6 m/s2

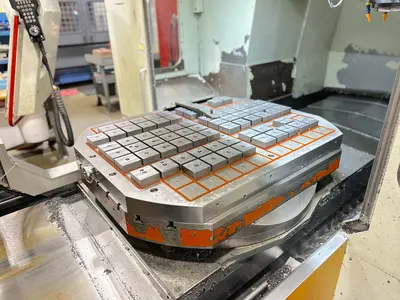

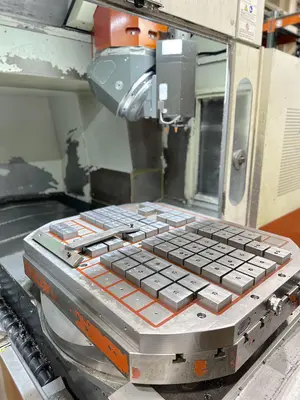

[TABLE]
Floorspace (LxWxH): 1200x1000 mm
Capacity: 5000 Kg
Accuracy (B axis): 0,001 °

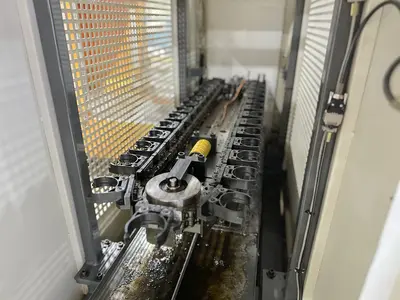

[ATC]
Positions: 30
Max tool diameter: 70 mm
Max tool lenght: 300 mm
Max tool weight: 10 Kg
Tool taper: HSK63A
[EXTRA]
Total power supply: ≈67 Kw
Machine total weight: ≈21.000 Kg
Floor space: ≈6000x4000x3900 mm
High Pressure: 60Bar

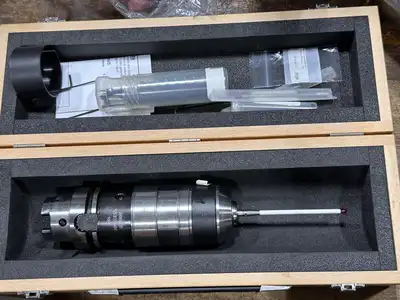

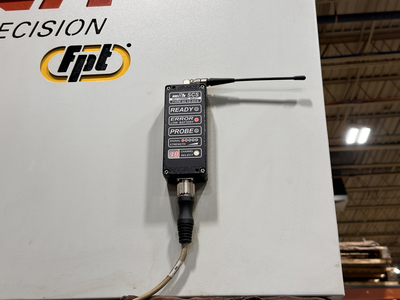

Workpiece touch probe: M&H
Tool presetter: Laser Marposs
Maintenance & Use books: Yes
CE Certification: Yes
Housing: Full
