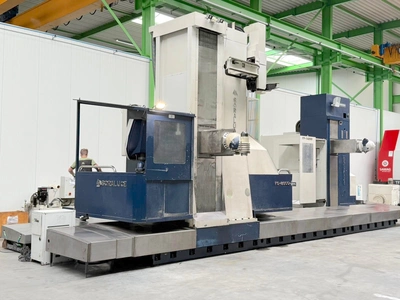

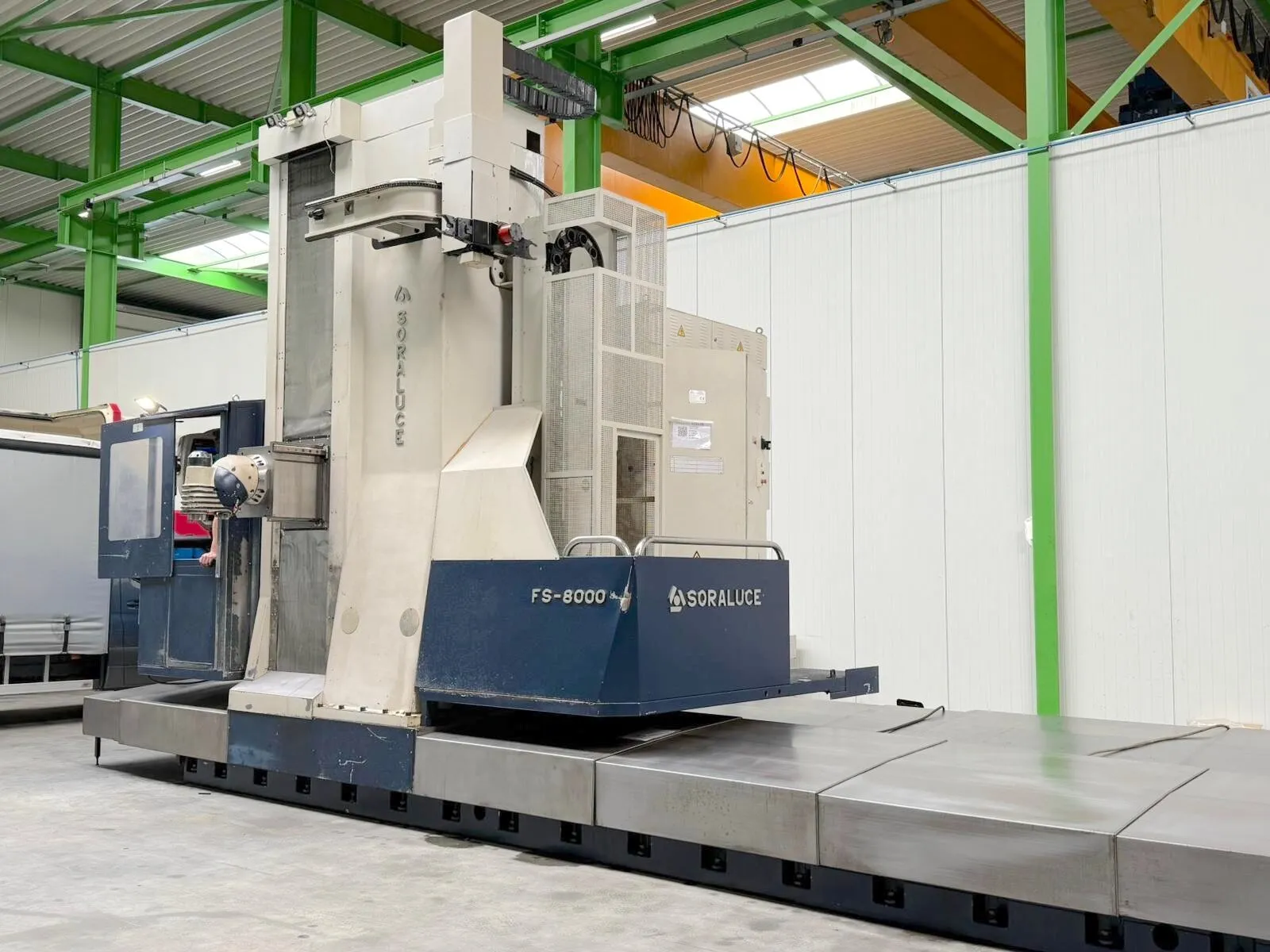

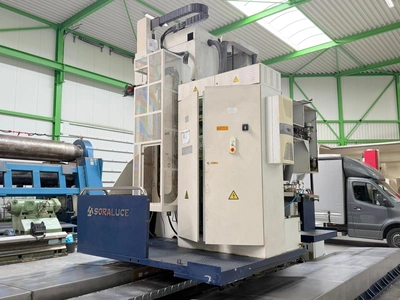

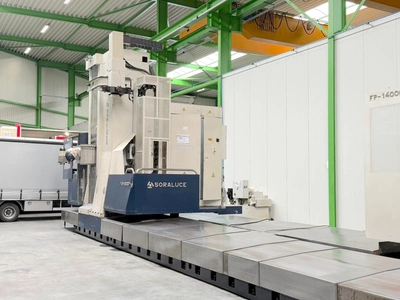

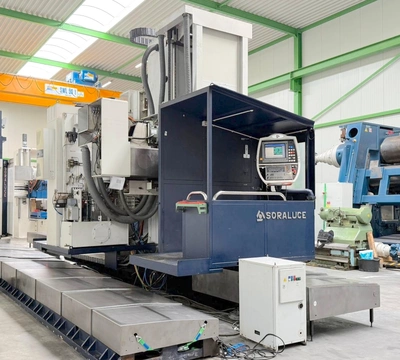

USED SORALUCE FS8000

Capacity: 8000x3300x1500 mm [WORKING CAPACITY]
Longitudinal (X): 8000 mm
Vertical (Y): 2800 (3300 with head rotated) mm
Cross RAM (Z): 1500 mm
Axes support: guide lineari
[CNC]
Measuring system: Righe ottiche Heidenhain pressurizzate

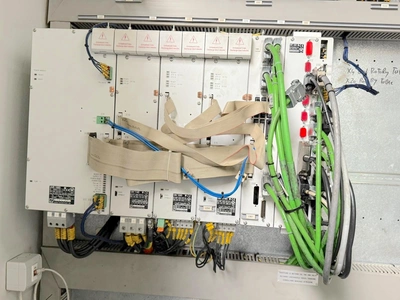

Drives: Servoazionamenti con motori Heidenhain
Notes: Volantino elettronico remotato HR410

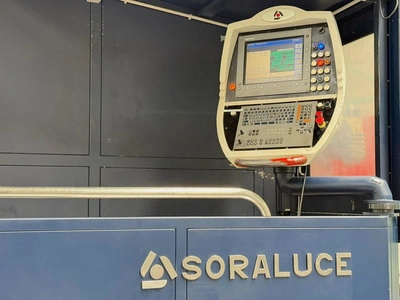

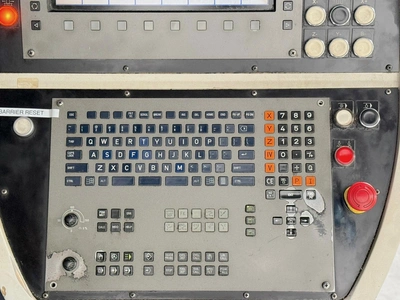

CNC: Heidenhain iTNC530
[SPINDLE]
Spindle power: (S1) 30 Kw
Rotating speed: 3000 Rpm
Torque: 1240 Nm
Taper: ISO50 DIN69871
Notes: Cambio gamma ZF
[FEEDS]
Rapid X: 15 m/min
Rapid Y: 15 m/min
Rapid Z: 15 m/min
X: 5 m/min
Y: 5 m/min
Z: 5 m/min
[ATC]
Positions: 40
Max tool diameter: 125 mm
Max diam with free adiacent space: 250 mm
Max tool lenght: 400 mm
Max tool weight: 20 Kg
Tool taper: ISO50
Position: verticale/orizzontale
[TABLE 1]
Notes: predisposizione idraulica ed elettrica per tavola girevole
[HEAD 1]
Type: Birotativa automatica
Spindle taper: ISO50 DIN69871
A axis: 144x2,5 °
C axis: 144x2,5 °
Max torque: 1240 Nm
Max speed: 3000 Rpm
Max power: 30 Kw
Coolant: interno mandrino
[EXTRA]
Total power supply: 64 KVA
Machine total weight: 38400 Kg
Floor space: 17500x4050x5020 mm
High Pressure: 15Bar 50Lt/min
Filtration unit: 500 lt. con separatore magnetico
Mobile operator platform: corsa verticale 1800mm
Maintenance & Use books: Yes
Electrical drawings: Yes
CE Certification: Yes
Chip conveyor: longitudinale
