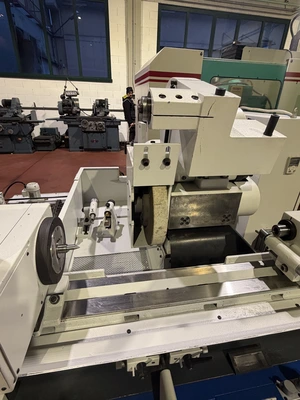

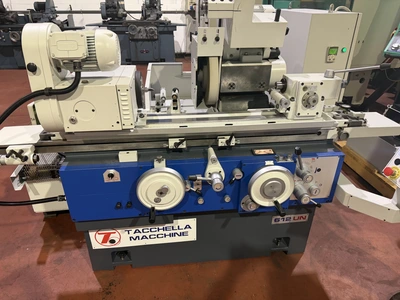

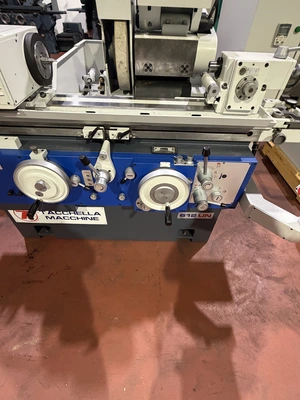

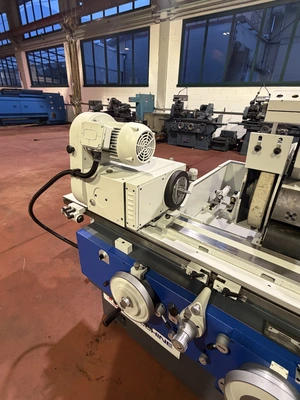

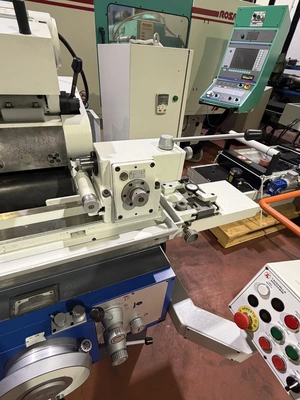

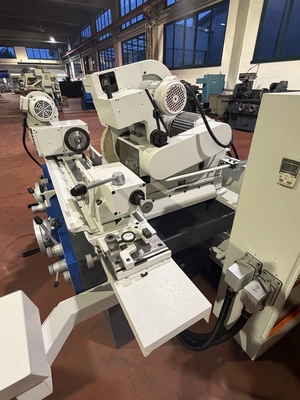

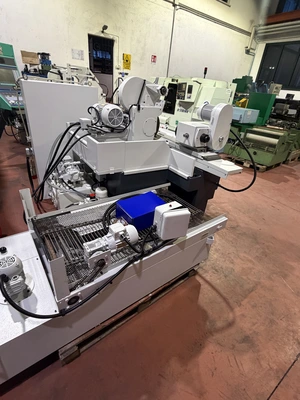

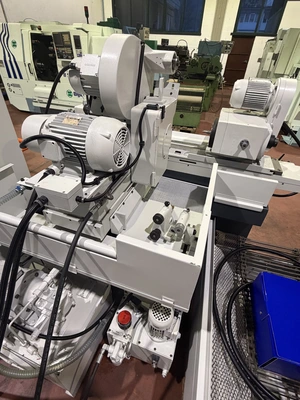

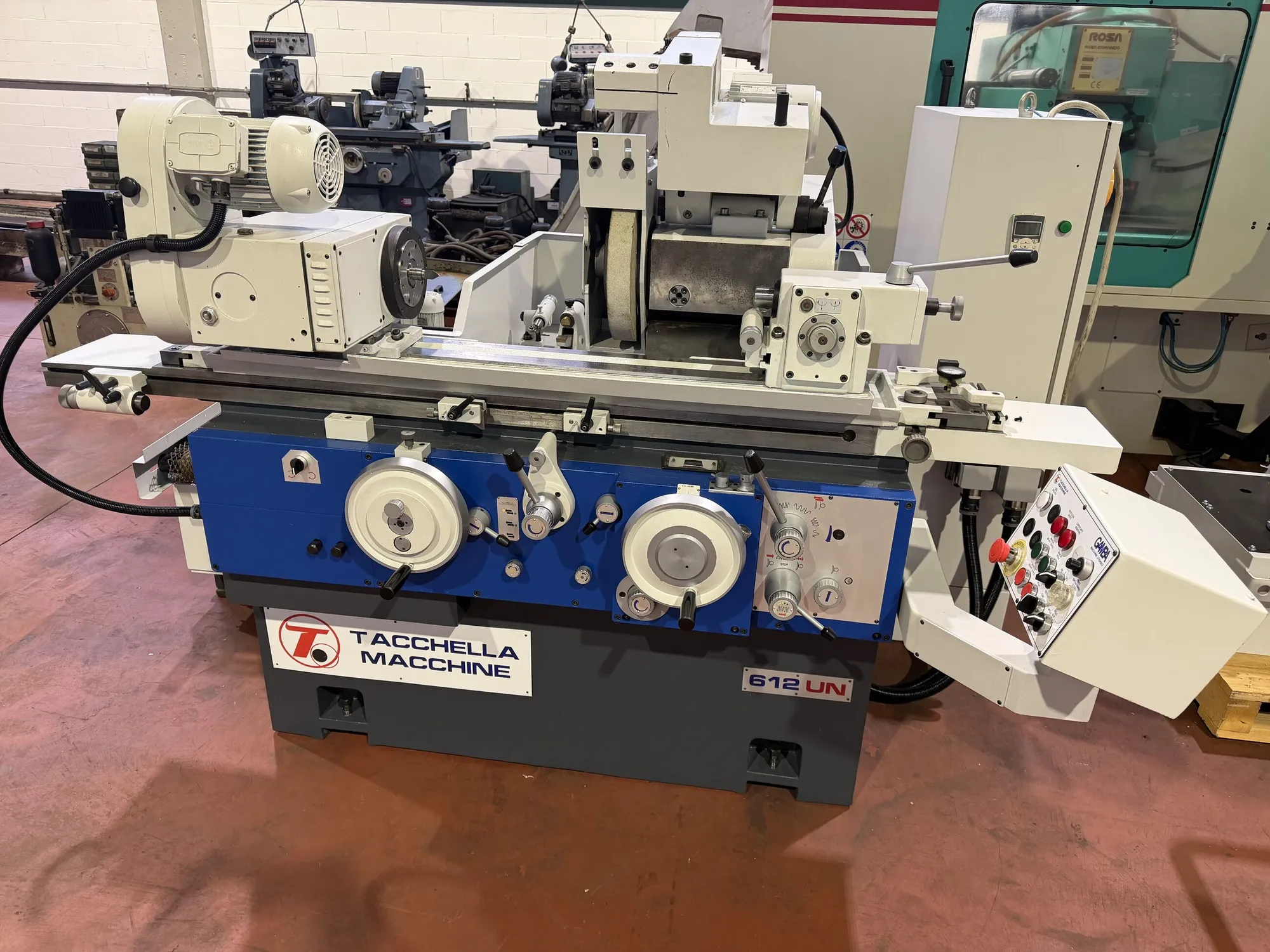

USED TACCHELLA 612UN

Capacity: 240x600 mm
[WORKING CAPACITY]
Centres distance: 600 mm
Centres height: 120 mm
Longitudinal (Z): 600 mm
Cross (X): 250 mm
Max grinding lenght: 600 mm
Max grinding diameter: 240 mm
Max internal diameter: 10-270 mm
Max internal depth: 440 mm
[TABLE]
Stroke: 4-600 mm
Cross speed: 100-7000 mm/min
Max workpiece weight: 100 Kg
Tilt: 10 °
[WHEELHEAD]
External spindle power: 4 Kw
External spindle speed: 1640-1900 Rpm
Internal spindle power: 1,1 Kw
[LEFT WHEEL]
Wheel band thickness: 70 mm
Max wheel diameter: 355 mm
Hole diameter: 127 mm
[WORKPIECE HEAD]
Rotating speed: 22-580 Rpm
Tilt: 90 °
Taper: MK3
[TAILSTOCK]
Quill diameter: 20 mm
Quill stroke: 20 mm
Taper: MK3
[EXTRA]
Total power supply: 6,45 Kw
Machine total weight: 2400 Kg
Floor space: 2660x1850x1750 mm

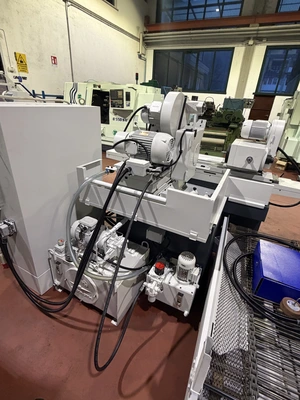

Filtration unit: Vasca Filtro Carta
Maintenance & Use books: Yes

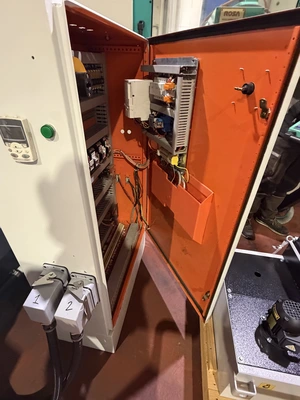

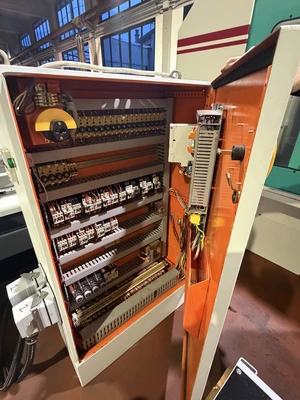

Electrical drawings: Yes
Availability: Pronta
Available in stock: Si
