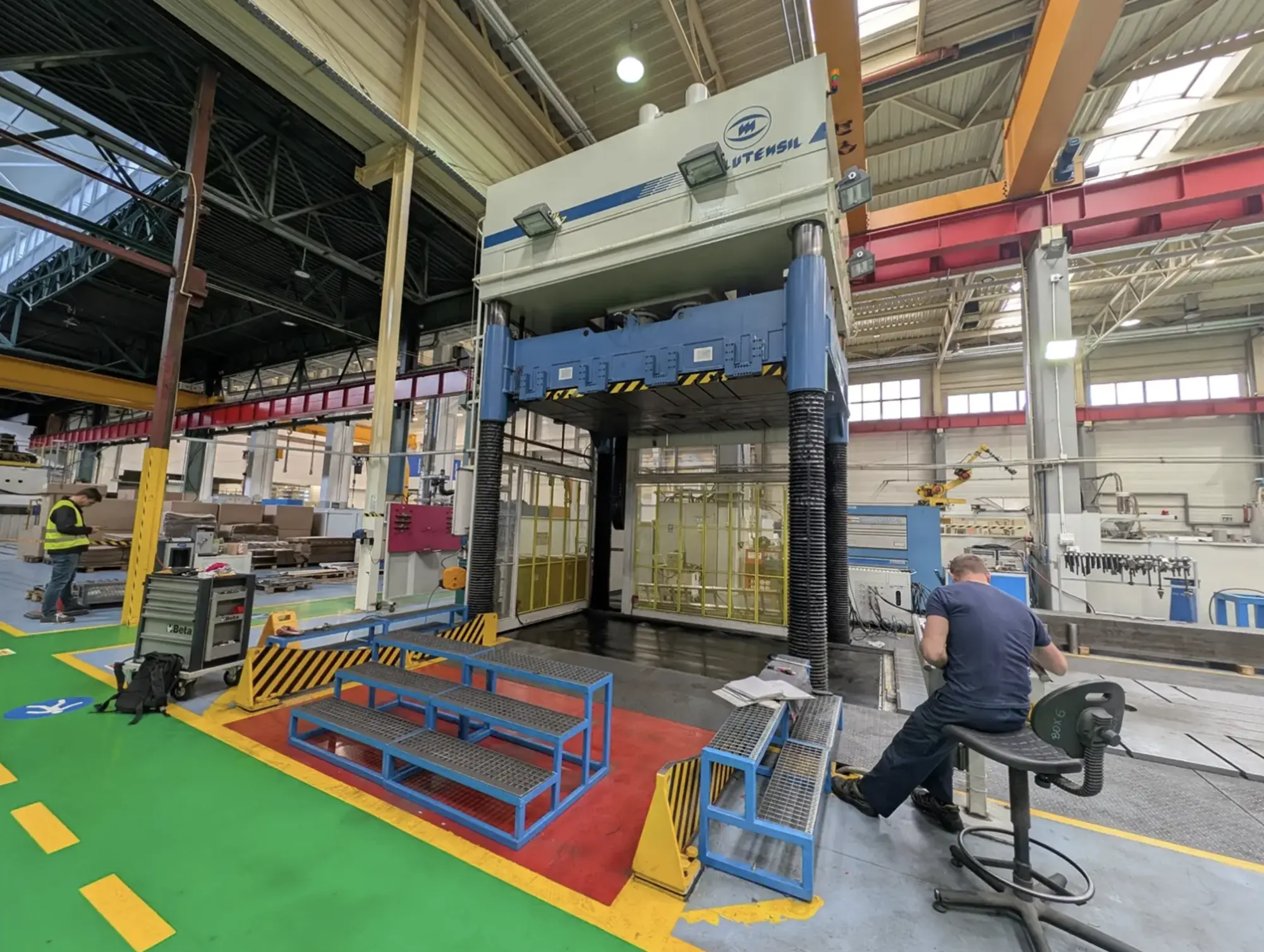

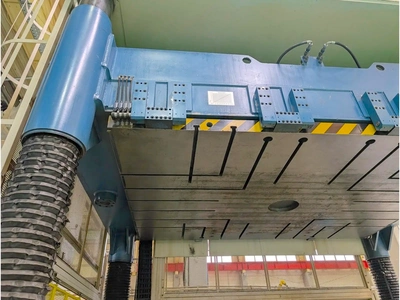

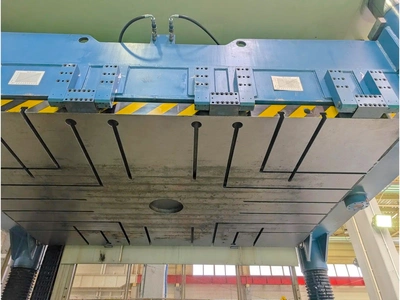

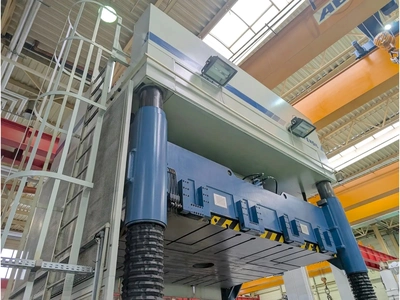

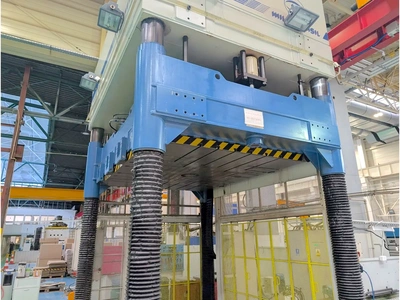

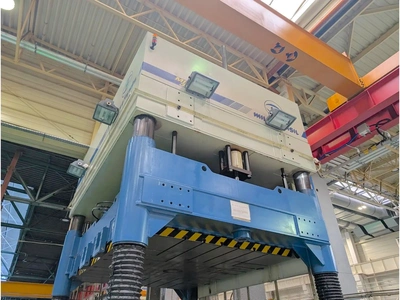

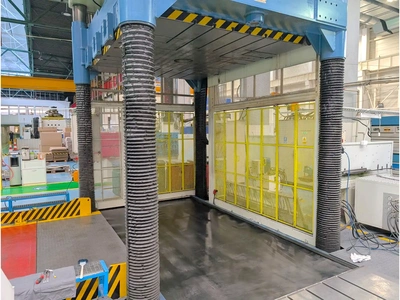

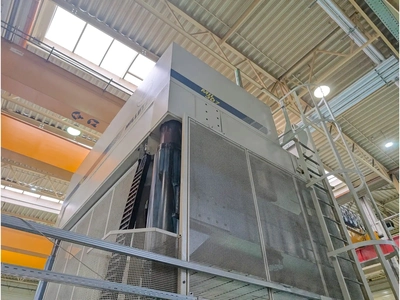

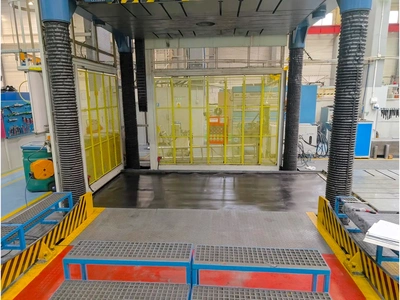

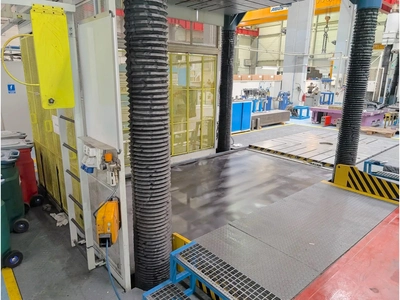

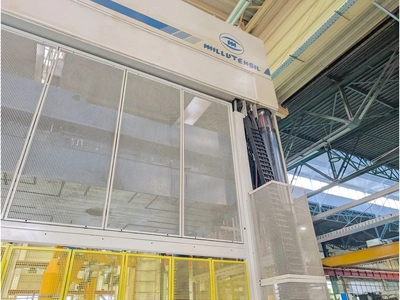

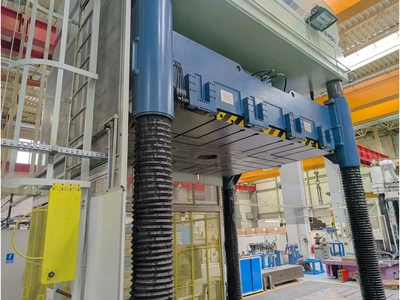

USED MILLUTENSIL MIL307

Capacity: 3500x2500mm - 400Ton mm
[WORKING CAPACITY]

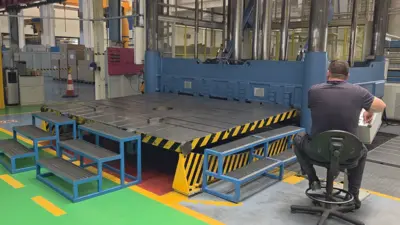

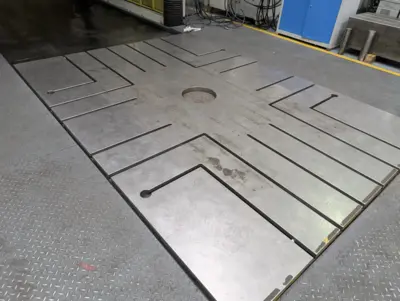

Floorplates size (LxWxH): 3500x2500 mm
Column distance: 3700x2650 mm
Max distance beween plates: 3000 mm
Min discance between plates: 400 mm
Max weight on lower plate: 80.000 Kg

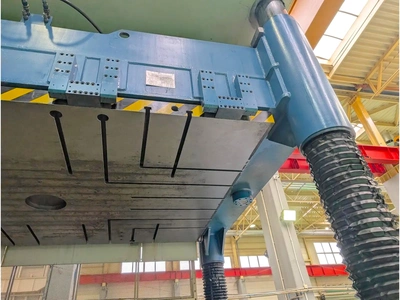

Max weight on upper plate: 40.000 Kg
Max closing strenght: 4000 kN
Max opening strenght: 1000 kN

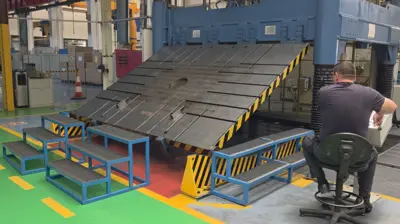

Upper table overturning: 180 °
[CNC]

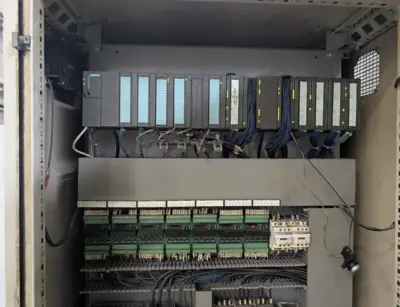

CNC: SIEMENS SIMATIC OP7
[FEEDS]
Approach speed: 65-80 mm/sec
Working speed: 8 mm/sec
Return speed: 35-50 mm/sec
[EXTRA]
Total power supply: 45 Kw
Machine weight: 135.000 Kg
Floor space: 9600x5950x6900(fuori terra) mm

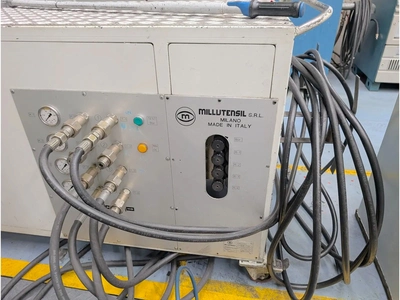

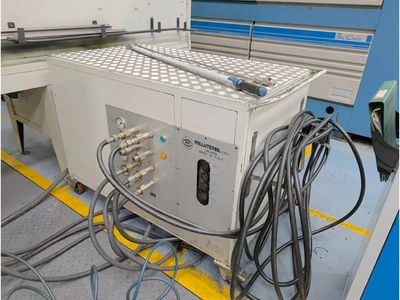

Notes: Unità di comando cilindri ausiliari idraulici 4+4
