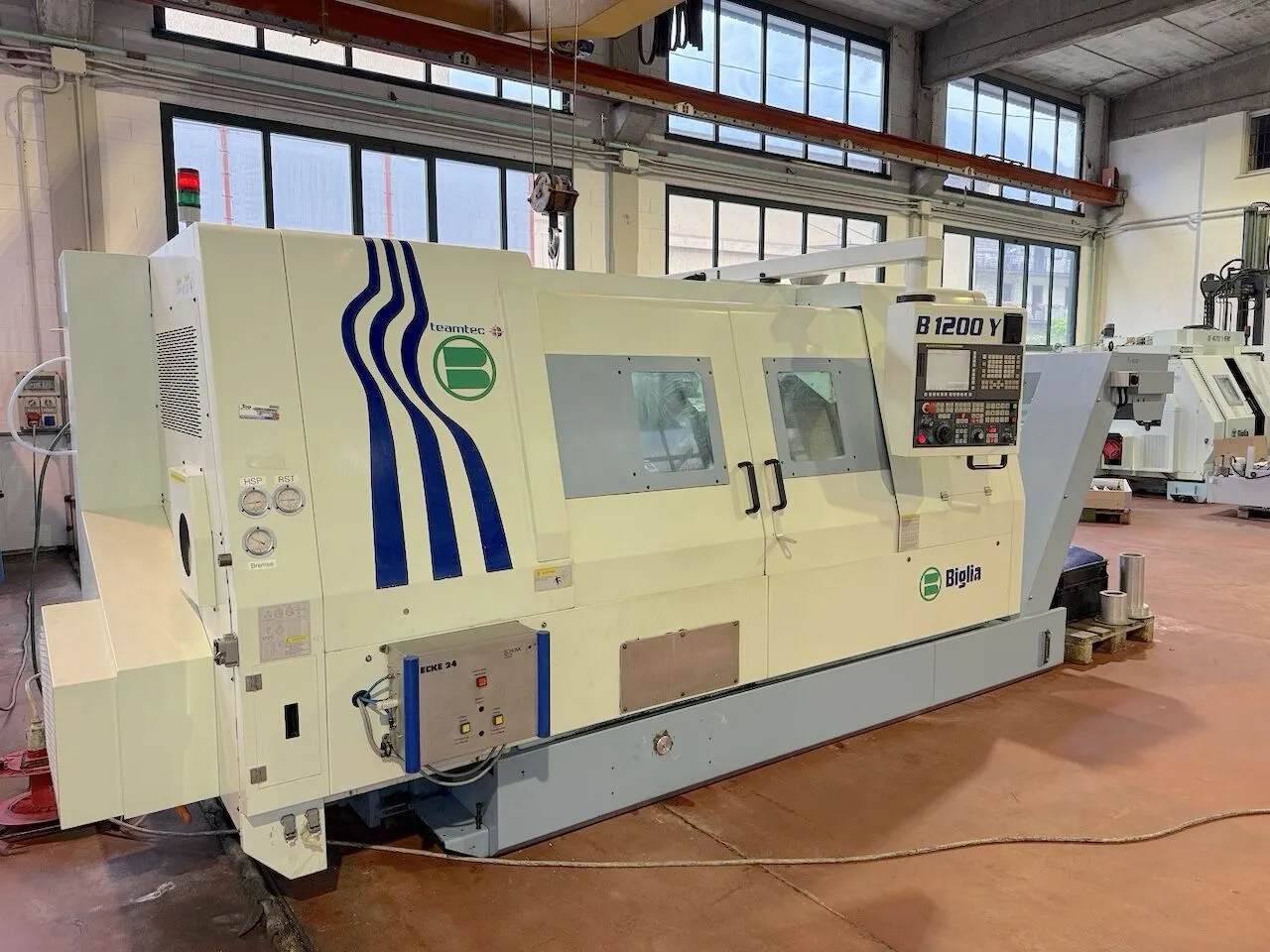

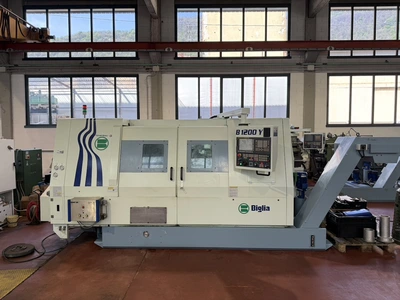

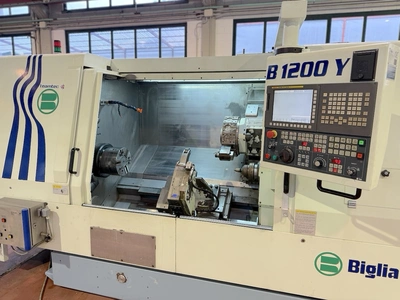

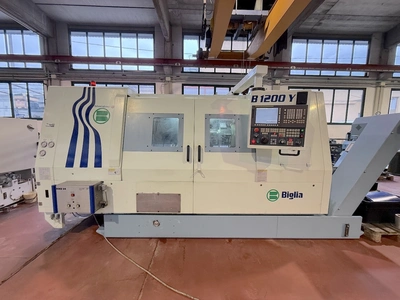

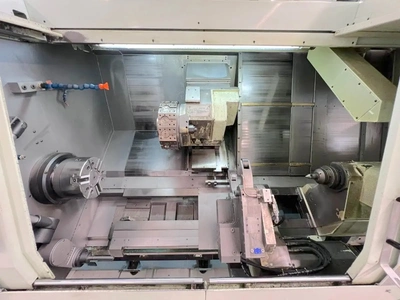

USED BIGLIA B1200Y

Capacity: ø92/410x1315 mm
[WORKING CAPACITY]
Max bar working diameter: 92
Max turning diameter: 410 mm
Max working lenght: 1315 mm
Max diameter on bed: 700 mm
[CNC]

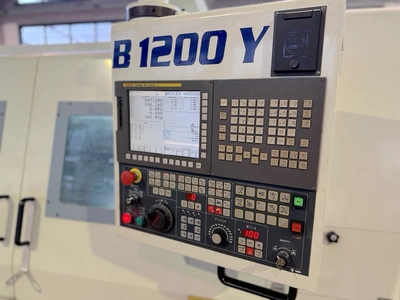

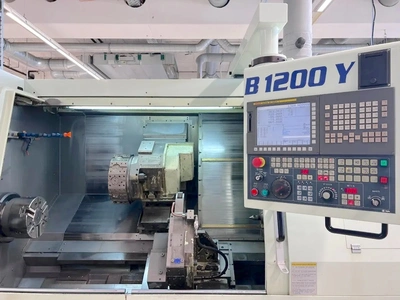

CNC: Fanuc 18i-TB
Notes: Manual Guide, SBS, Anti-collision,
[MAIN SPINDLE]
Max rotation speed: 2800 rpm
Spindle nose: ASA8”
Spindle hole: 111 mm
Internal bearing diameter: 150 mm

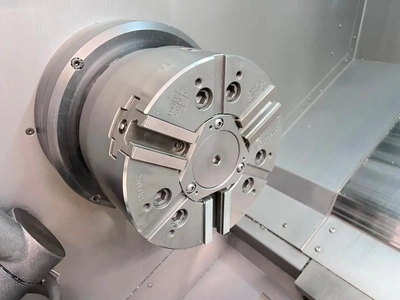

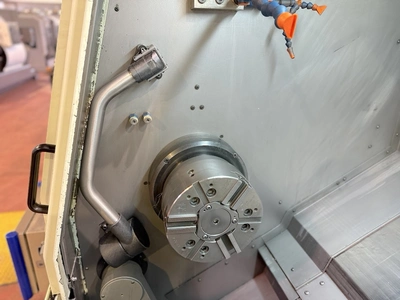

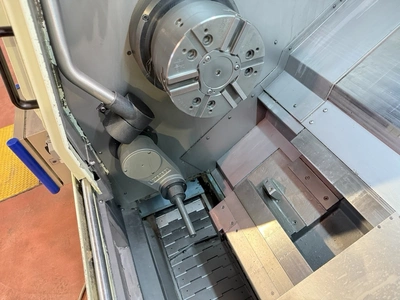

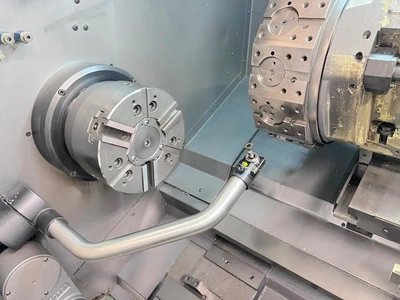

Chuck diameter: 315 mm
Max power: 30 Kw
Max torque: 776 Nm
Accuracy (C axis): 0,001 °
C axis speed: 100 Rpm
[TAILSTOCK]
Quill diameter: 115 mm
Quill stroke: 150 mm
Taper: CM5
Axis stroke B: 1200 mm

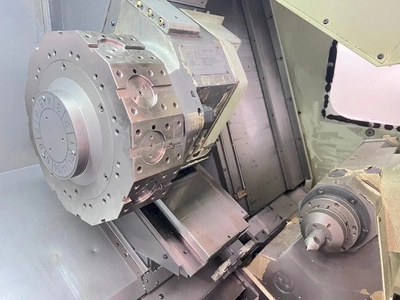

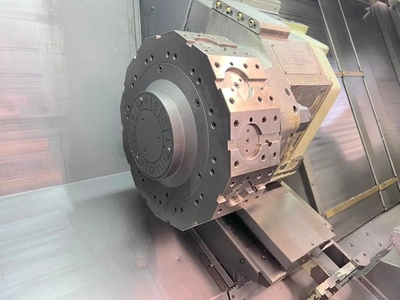

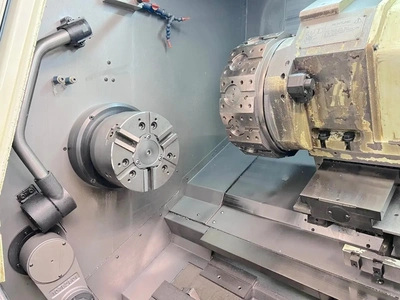

[TURRET 1]
Positions number: 12
Rotation time (1 pos): 0,15 sec.
Number of driven stations: 12
Driven tools speed: 4000 rpm
Driven tools power: 5,5 Kw
Axis stroke X1: 255 mm
Rapid feed X1: 20 m/min
Axis stroke Z1: 1315 mm
Rapid feed Z1: 24 m/min
Axis stroke Y1: 110 (+60/-50) mm
Rapid feed Y1: 7,5 m/min
Driven tools torque: 70 Nm
[EXTRA]

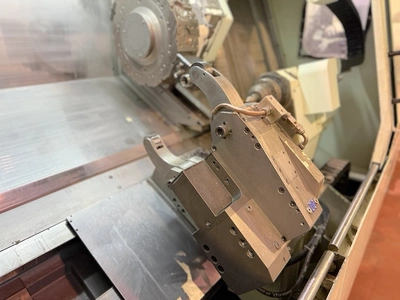

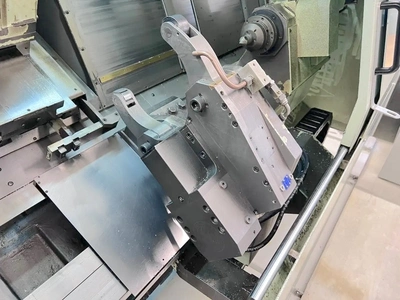

Carriage: carro lunetta a seguire
Machine total weight: 7250 Kg
Floor space: 5100x2000x2100 mm
Chip conveyor: si
Autocentering chuck: 315
Driven toolholders: disponibili
Fixed toolholders: disponibili
Hydraulic steady: predisposizione per lunetta
Notes: predisposizione spingibarra, scaricatore automatico pezzi ø100x150mm, Pompa 18Bar con filtro
