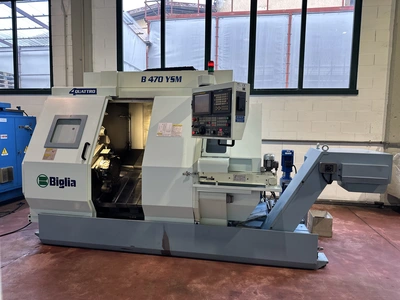

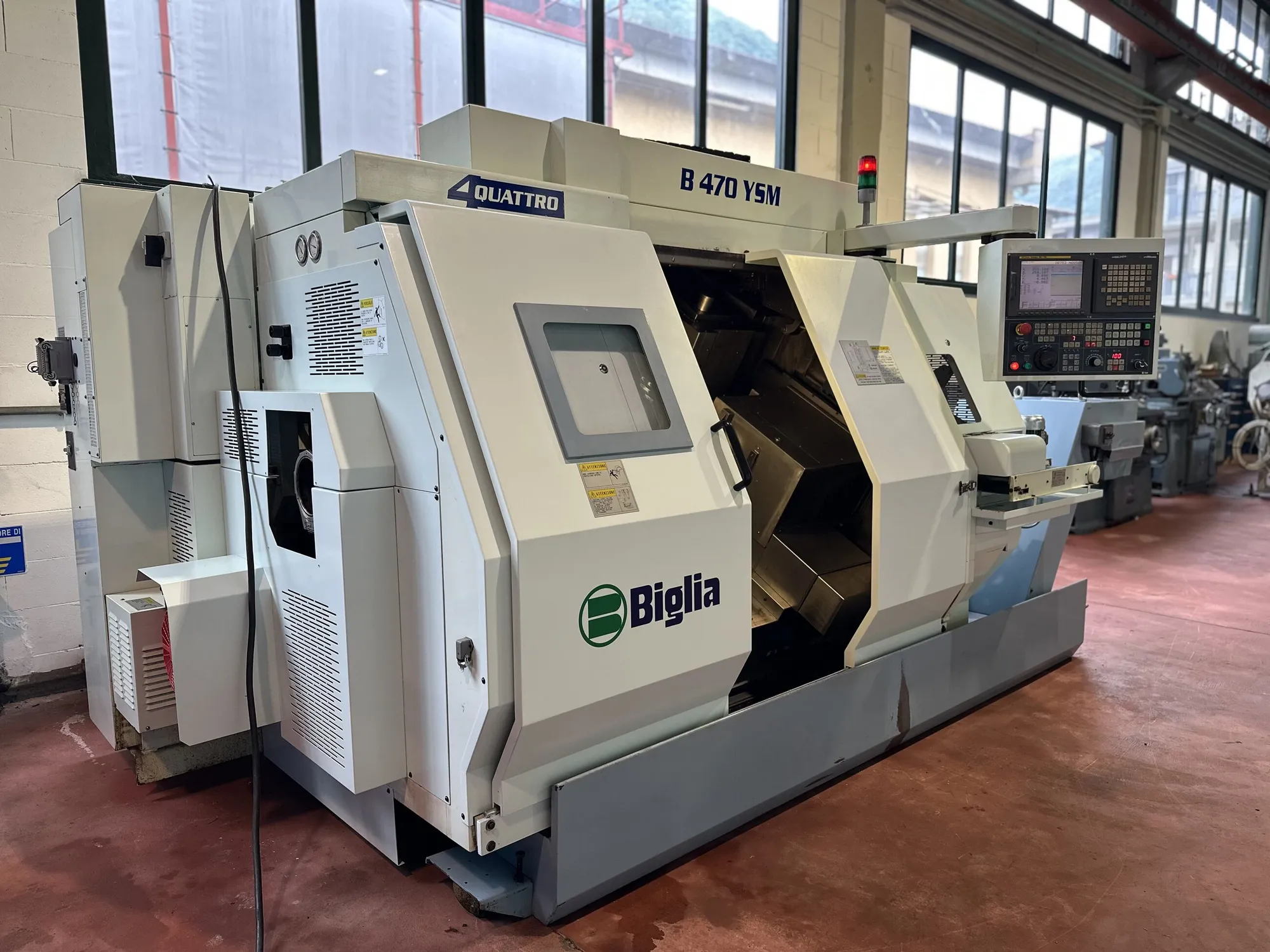

USED BIGLIA B470YSM

Capacity: ø67,5x240 mm [WORKING CAPACITY]
Max turning diameter: Volteggio 520mm / Tornibile 240 mm mm
Max bar working diameter: 68
Max working lenght: 250 mm
[CNC]

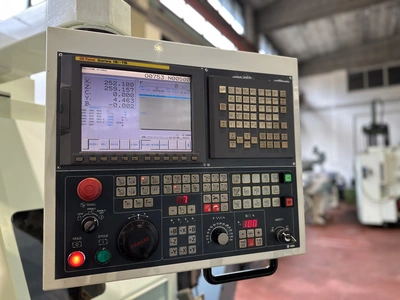

CNC: Fanuc 18i-TB
[MAIN SPINDLE]
Max rotation speed: 4000 rpm
Spindle nose: ASA6”
Spindle hole: 80 (passaggio barra 68mm) mm
Internal bearing diameter: 110 mm
Max power: 26 Kw
Accuracy (C axis): 0,001 °
[SUBSPINDLE]
Max rotation speed: 4000 rpm
Spindle nose: ASA5”
Spindle hole: 55 (passaggio barra 45mm) mm
Internal bearing diameter: 80 mm
Max power: 11 Kw
Accuracy (C axis): 0,001 °
Rapid feed B: 30 m/min

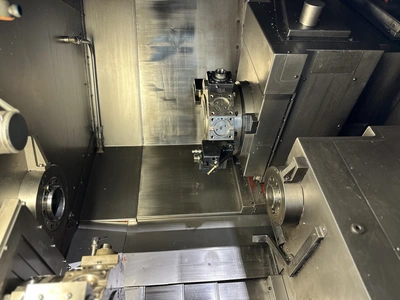

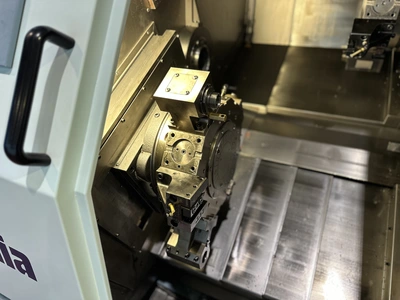

[TURRET 1]
Rotation time (1 pos): 0,15 sec.
Driven tools speed: 4000 rpm
Driven tools power: 3,7 Kw
Axis stroke X1: 160 mm
Rapid feed X1: 20 m/min
Axis stroke Z1: 390 mm
Rapid feed Z1: 24 m/min
Axis stroke Y1: 100 mm
Rapid feed Y1: 6 m/min
[TURRET 2]
Positions number: 12
Rotation time (1 pos): 0,15 sec.
Number of driven stations: 12
Driven tools speed: 4000 rpm
Driven tools power: 3,7 Kw
Axis stroke X2: 160 mm
Rapid feed X2: 12 m/min
Axis stroke Z2: 240 mm
Rapid feed Z2: 20 m/min
[EXTRA]
Machine total weight: 6900 Kg
Floor space: 4150x2100x2200 mm
