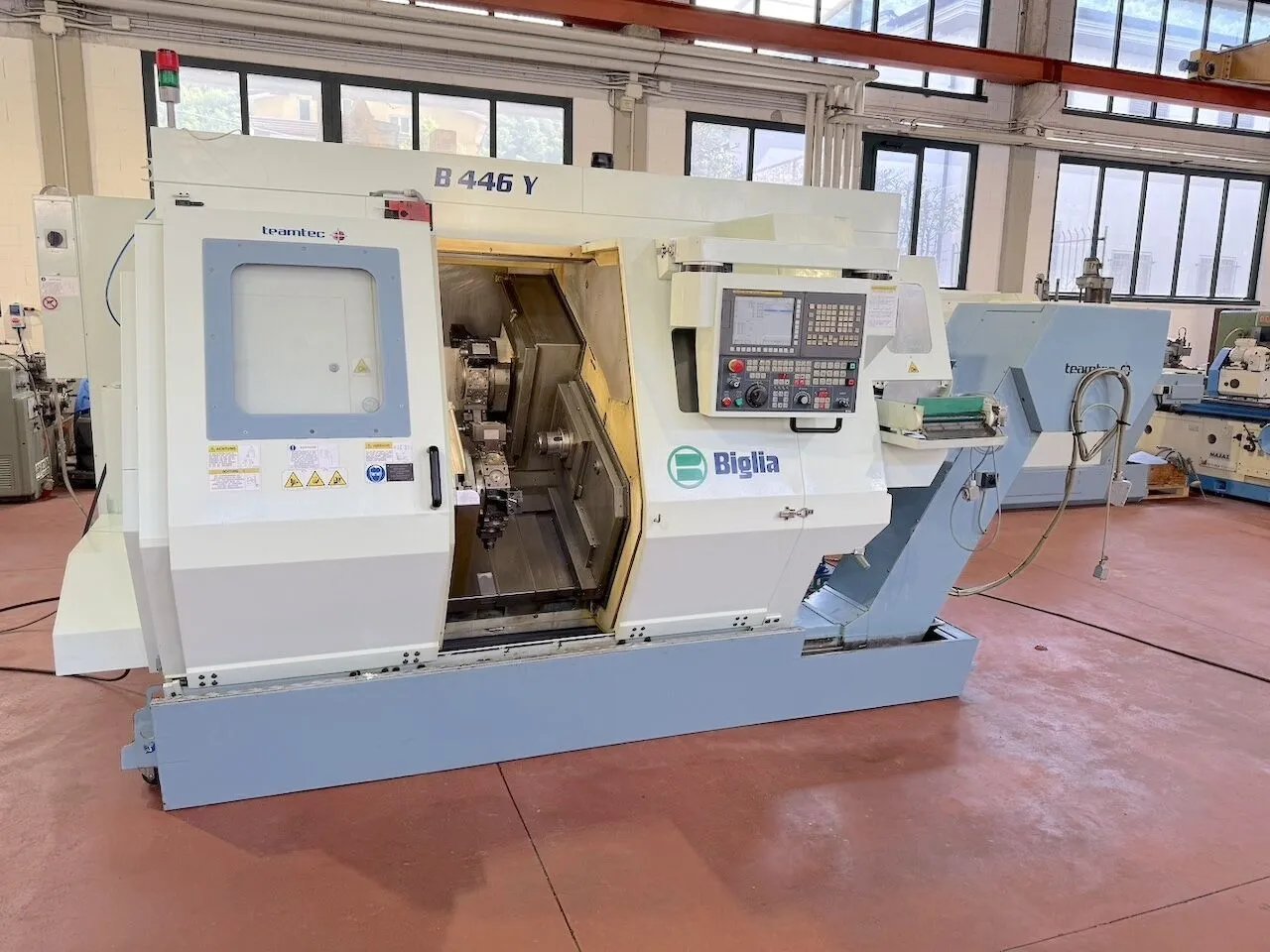

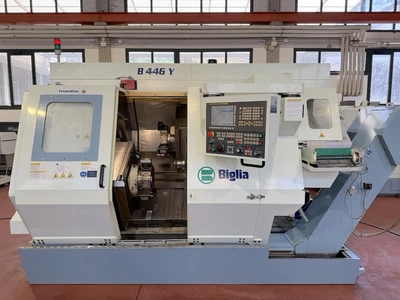

USED BIGLIA B446Y

Capacity: ø45/230x320 mm
[CNC]

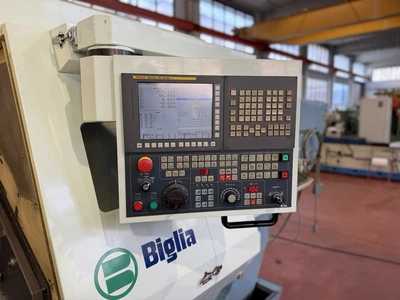

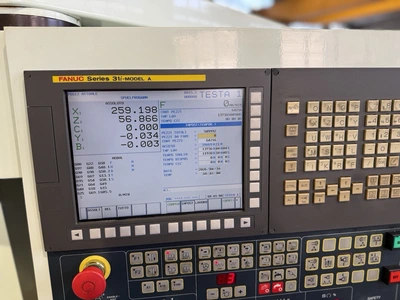

CNC: Fanuc 31i - Model A

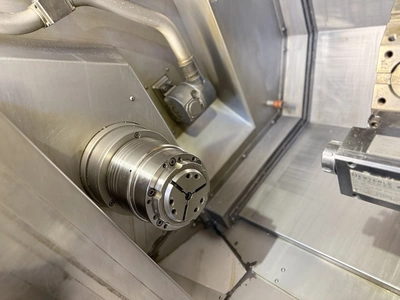

[MAIN SPINDLE]
Max rotation speed: 5000 rpm
Spindle nose: ASA5"
Spindle hole: 55 mm
Internal bearing diameter: 80 mm
Max power: 15 Kw
Accuracy (C axis): 0,001 °
Notes: Portapinze Hainbuch
[SUBSPINDLE]
Max rotation speed: 5000 rpm
Spindle nose: ASA5"
Spindle hole: 55 mm
Internal bearing diameter: 80 mm
Max power: 11 Kw
Accuracy (C axis): 0,001 °
Automatic B axis positioning: 420 mm
Rapid feed B: 30 m/min

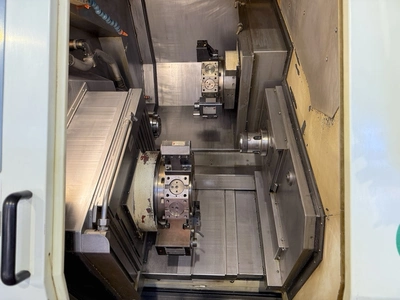

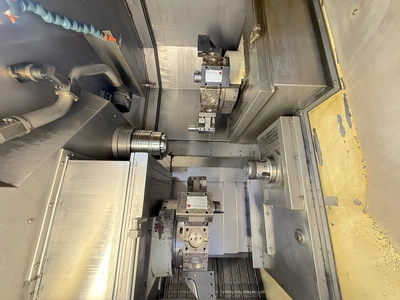

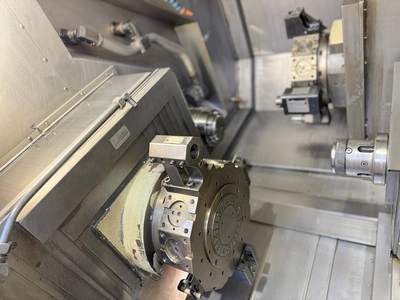

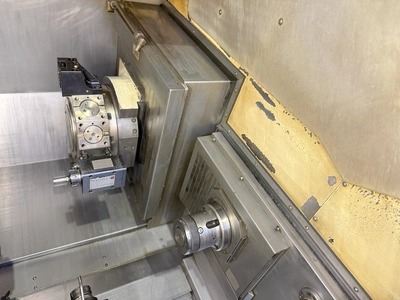

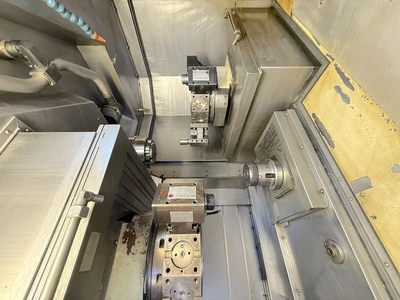

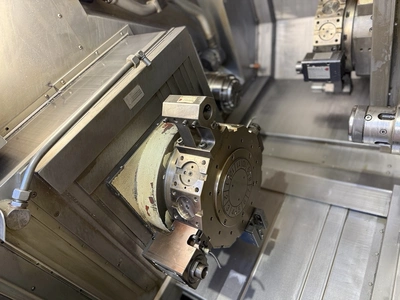

[TURRET 2]
Positions number: 12
Rotation time (1 pos): 0,15 sec.
Number of driven stations: 12
Driven tools speed: 4000 rpm
Driven tools power: 3,7 Kw
Axis stroke X2: 170 mm
Rapid feed X2: 18 m/min
Axis stroke Z2: 390 mm
Rapid feed Z2: 30 m/min
Axis stroke Y2: 90 [-40/+50] mm
Rapid feed Y2: 9 m/min
[TURRET 3]
Positions number: 12
Rotation time (1 pos): 0,15 sec.
Number of driven stations: 12
Driven tools speed: 4000 rpm
Driven tools power: 3,7 Kw
Axis stroke X3: 170 mm
Rapid feed X3: 18 m/min
Axis stroke Z3: 400 mm
Rapid feed Z3: 30 m/min
[EXTRA]
Machine total weight: 7200 Kg
Floor space: 4400x2150x2200 mm
Workpiece espulsion robot: Workpiece unloading device with conveyor belt
Chip conveyor: Si
Workpieces conveyor belt: Yes
Tool presetter: Marposs TT30

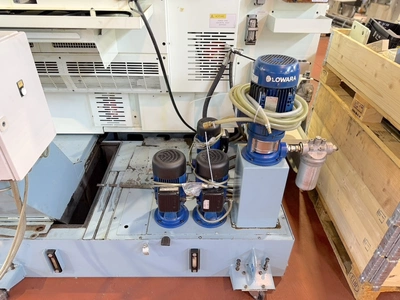

Coolant pump: CTS 20Bar

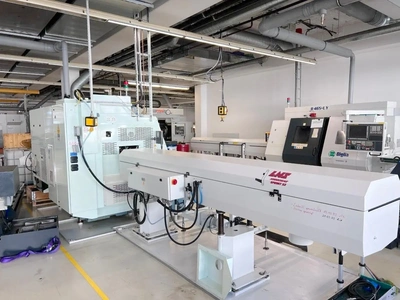

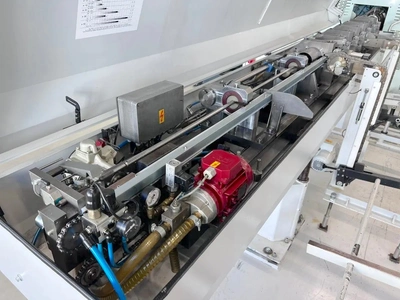

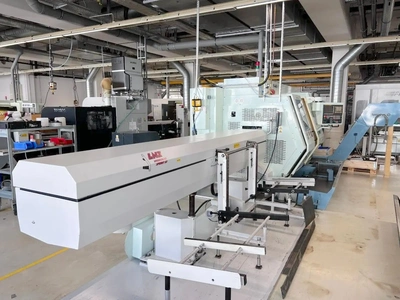

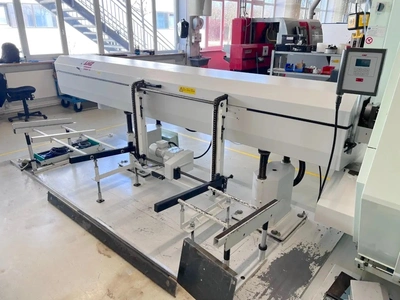

Bar feeder: LNS Hydrobar Sprint S3
