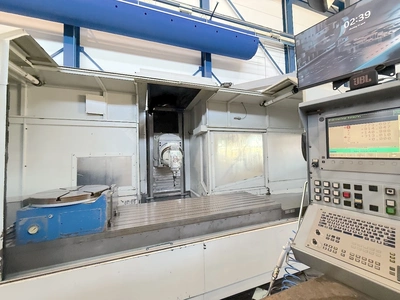

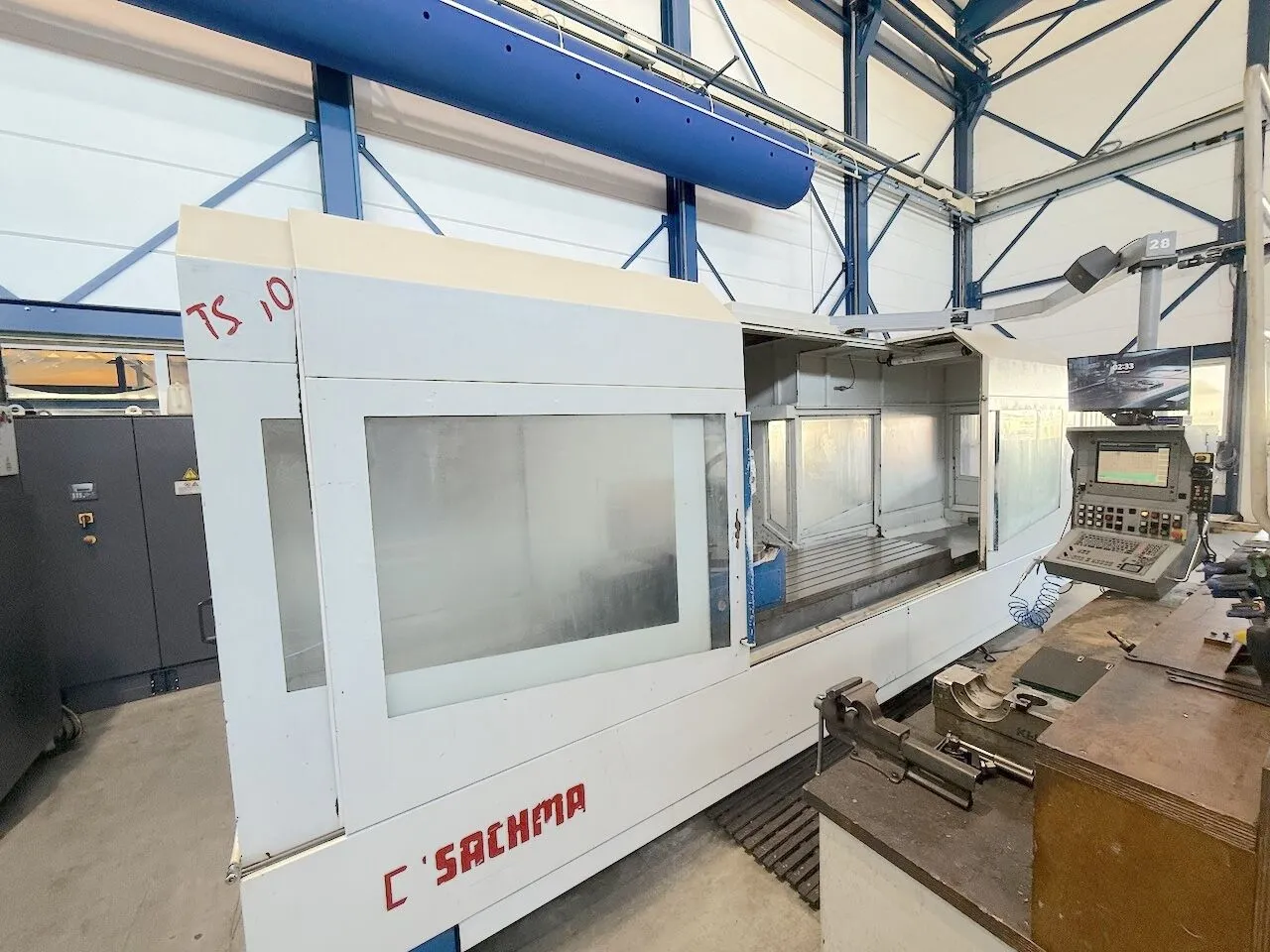

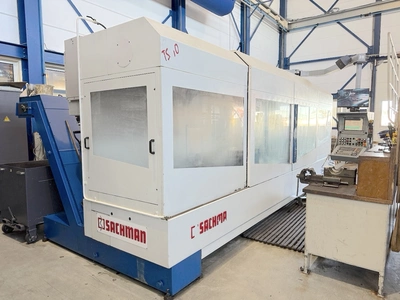

USED SACHMAN TS10

Capacity: 2500x1210x1000 mm
[WORKING CAPACITY]
Longitudinal (X): 2500 mm
Vertical (Y): 1000 mm
Cross RAM (Z): 1210 mm
[CNC]

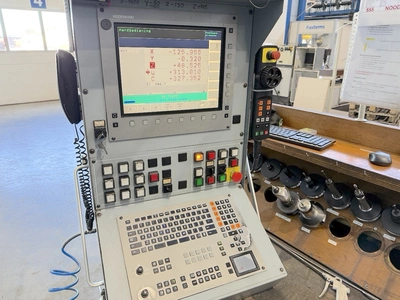

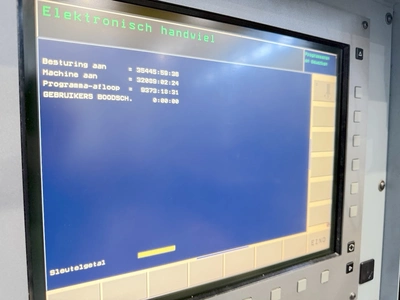

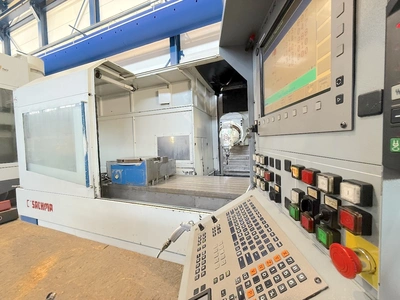

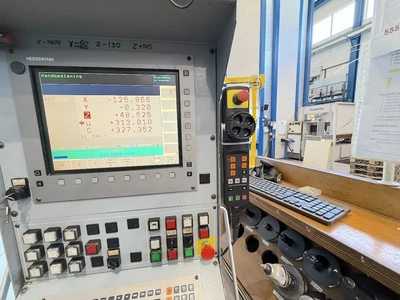

CNC: Heidenhain iTNC530
[SPINDLE]
Spindle power: 20,5 Kw
Rotating speed: 5000 Rpm
Taper: ISO50
[FEEDS]
Rapid X: 25 m/min
Rapid Y: 25 m/min
Rapid Z: 25 m/min

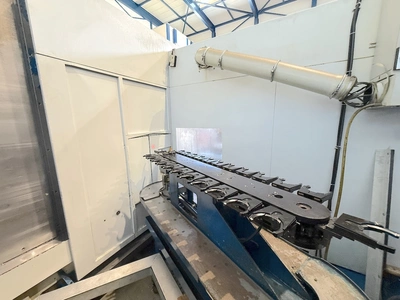

[ATC]
Positions: 24
Tool taper: ISO50

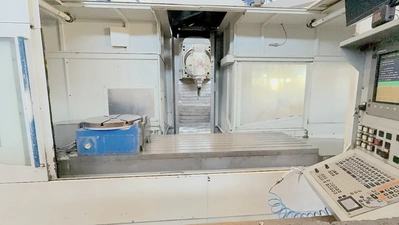

[TABLE 1]
Surface: 2700x800 mm

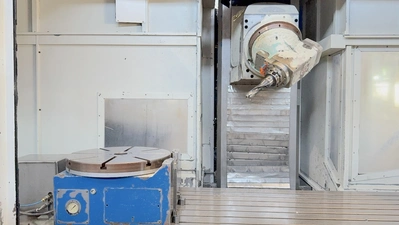

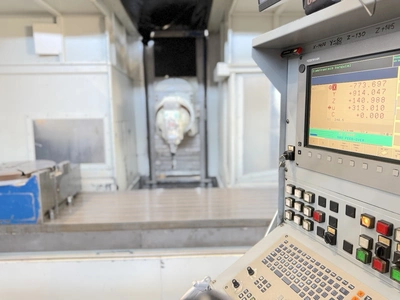

[HEAD 1]
Type: KOSMO5000
Spindle taper: ISO50
A axis: 0,02 °
C axis: 0,02 °
Max speed: 5000 Rpm
Max power: 20,5 Kw
Coolant: CTS 40 Bar
[EXTRA]
Machine total weight: 17600 Kg
Floor space: 7200x4200x3000 mm

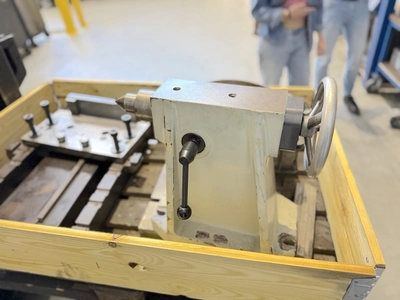

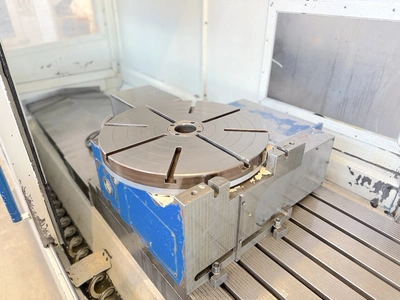

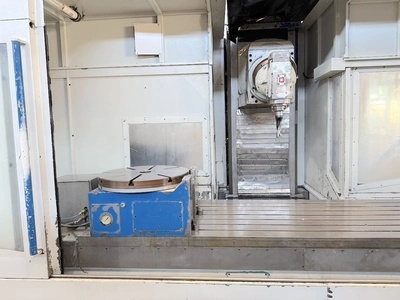

Tooling included: tavola SPIRSIN M 81310 F ø600mm + contropunta h300mm ø80mm
High Pressure: 40 Bar

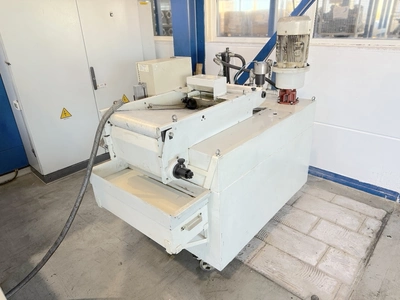

Filtration unit: Vasca a Filtro a carta
Chiller: Kelvin

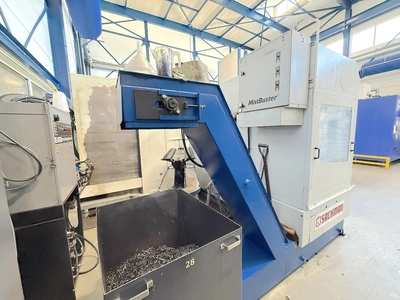

Chip conveyor: Si
