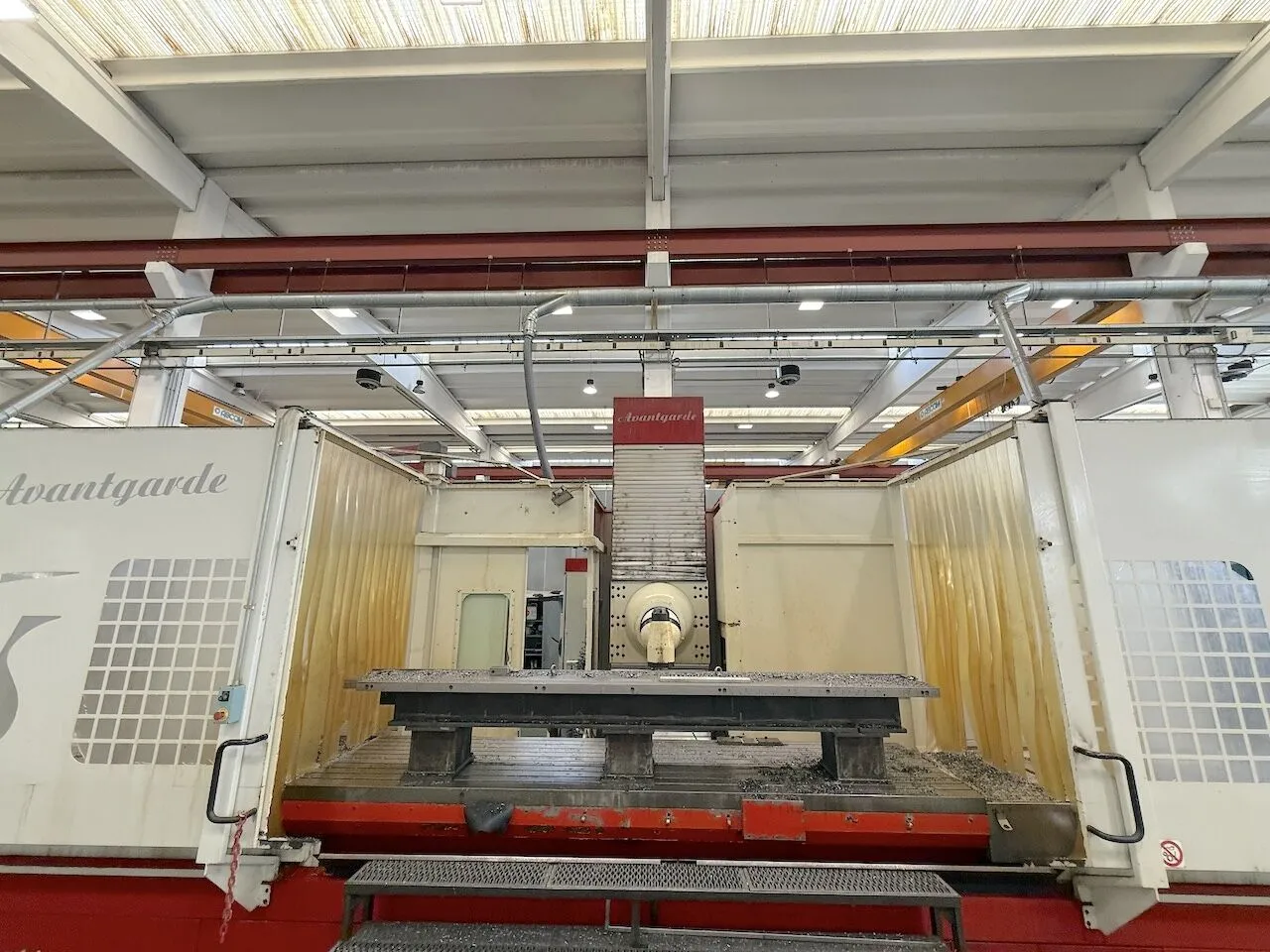

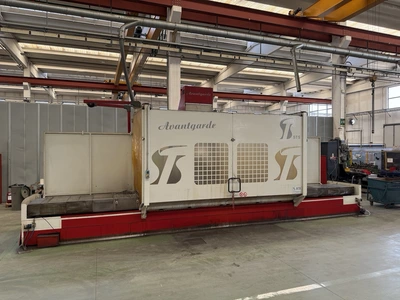

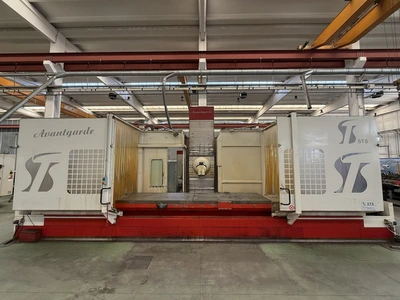

USED STS AVANTGARDE HS

Longitudinal (X): 4000 mm157,48 in
Vertical (Y): 2000 mm78,74 in
Cross column (Z): 1500 mm59,06 in

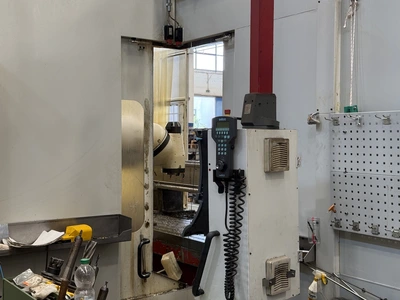

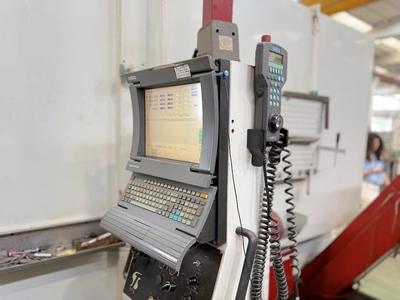

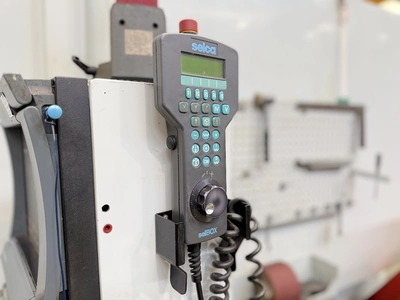

CNC: SELCA 4045D + SELBOX S2
Spindle power: 37 Kw
Gearbox: meccanico
Rotating speed: 4000 Rpm
Taper: ISO50 DIN69871/A
Rapid X: 40 m/min1.574,80 ipm
Rapid Y: 40 m/min1.574,80 ipm
Rapid Z: 40 m/min1.574,80 ipm
X: 20 m/min787,40 ipm
Y: 20 m/min787,40 ipm
Z: 20 m/min787,40 ipm
Notes: Righe ottiche

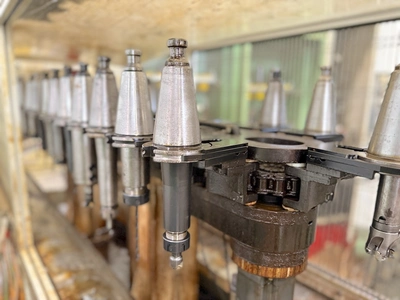

Positions: 32
Max tool diameter: 125 mm4,92 in
Max diam with free adiacent space: 180 mm7,09 in
Max tool lenght: 350 mm13,78 in
Max tool weight: 20 Kg
Tool taper: ISO50

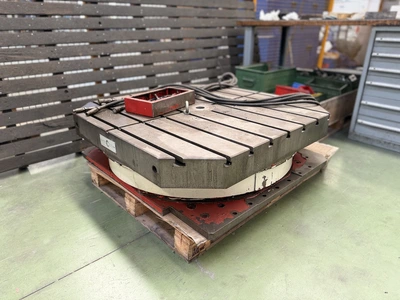

Surface: 1100x1100 mm43,31x43,31 in
Accuracy (B axis): 0,001 °
Support: torque
Surface: 4200x1100 mm165,35x43,31 in
Translation: 4000 mm157,48 in
Notes: n.10 cave a T 18mm

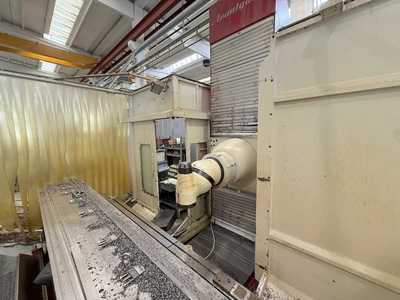

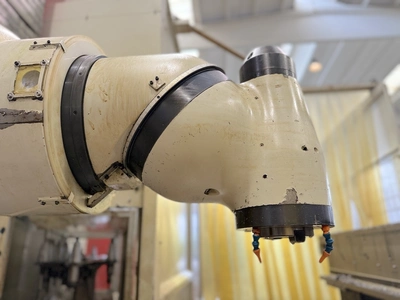

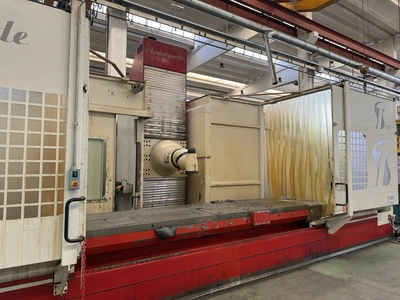

Type: Testa strong head automatica
Spindle taper: ISO50
A axis: 144x2,5 °
C axis: 144x2,5 °
Max speed: 4000 Rpm
Max power: 37 Kw
Coolant: CTS20Bar
Floor space: 9700x5300x4350 mm381,89x208,66x171,26 in
High Pressure: CTS20Bar

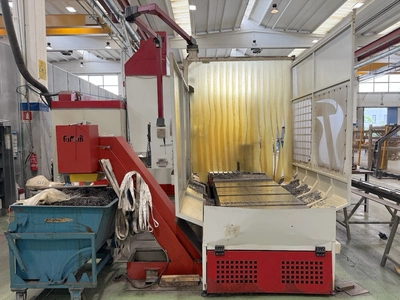

Chip conveyor: Evacuatore trucioli a coclea posteriore X = 4000 mm + Evacuatore trucioli a coclea anteriore X = 4000 mm + trasportatore truciolo trasversale
