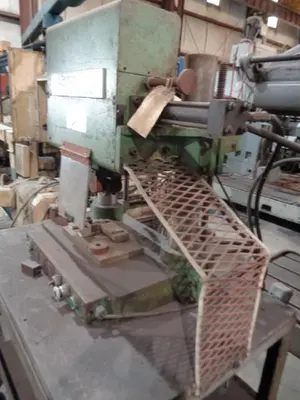

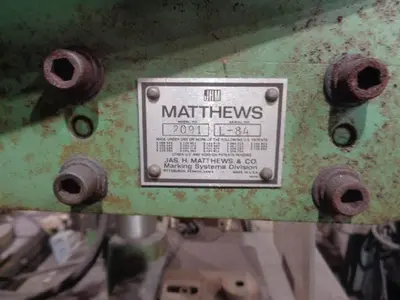

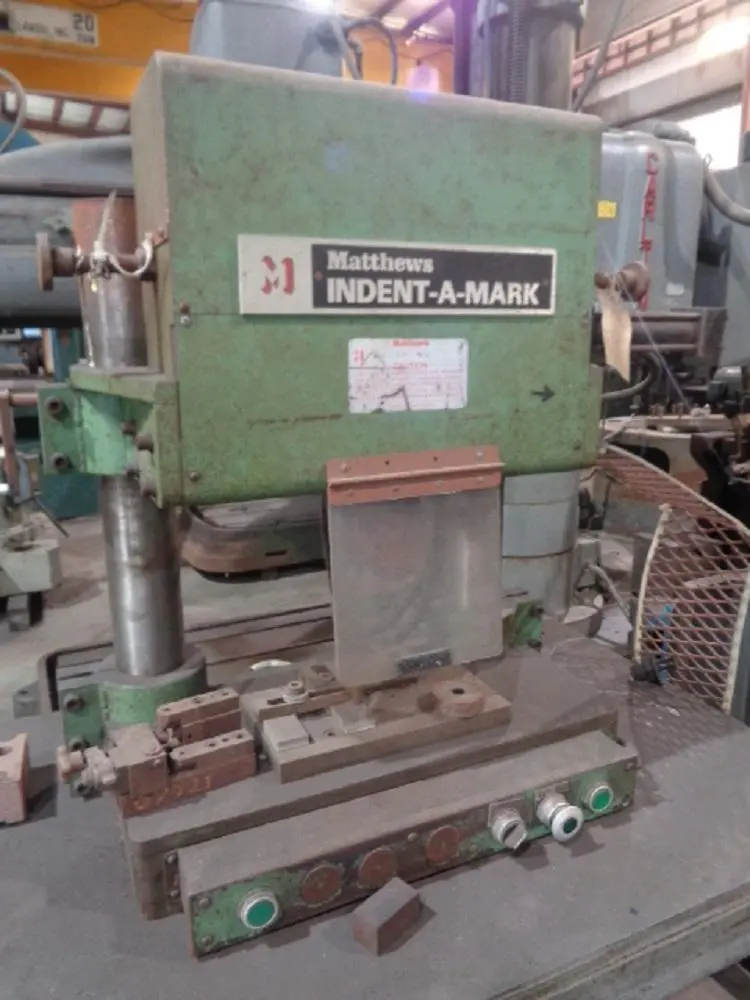

USED 1989 MATTHEWS 2091

Marking Force............700 lbf to 5,000 lbf (317.5 to 2,268 kgf)
Cross Slide............0.5" to 6" (12.7 to 152.4 mm)
Ram Stroke............0.125" to 1" (3.18 to 25.4 mm)
Throat Height
Ram Down/Head Down............0.5" (12.7 mm)
Ram Up/Head Up............18" (457.2 mm)
Throat Width............13.5" (342.9 mm) Between Uprights
Marking Table Size............24" Wide x 8" Deep (609.6 x 203.2 mm)
Marking Table Bolt Pattern............4" x 6" (101.6 x 152.4 mm)
Cycle Rate..... 43 CPM at a 1" (25.4 mm) Stroke & 700 lbf (317.5 kgf)
35 CPM at a 1" (25.4 mm) Stroke & 5,000 lbf (2,267.96 kgf)
Electrical.........220/440 VAC, 3 PH, 60 Hz
Motor............1.5 HP, 1,725 RPM (1.52 HP, Metric)
Pump............1.5 GPM (5.68 LPM)
Fluid Reservoir............5 Gallon (18.93 Liter)
