USED 2006 HURCO VM1

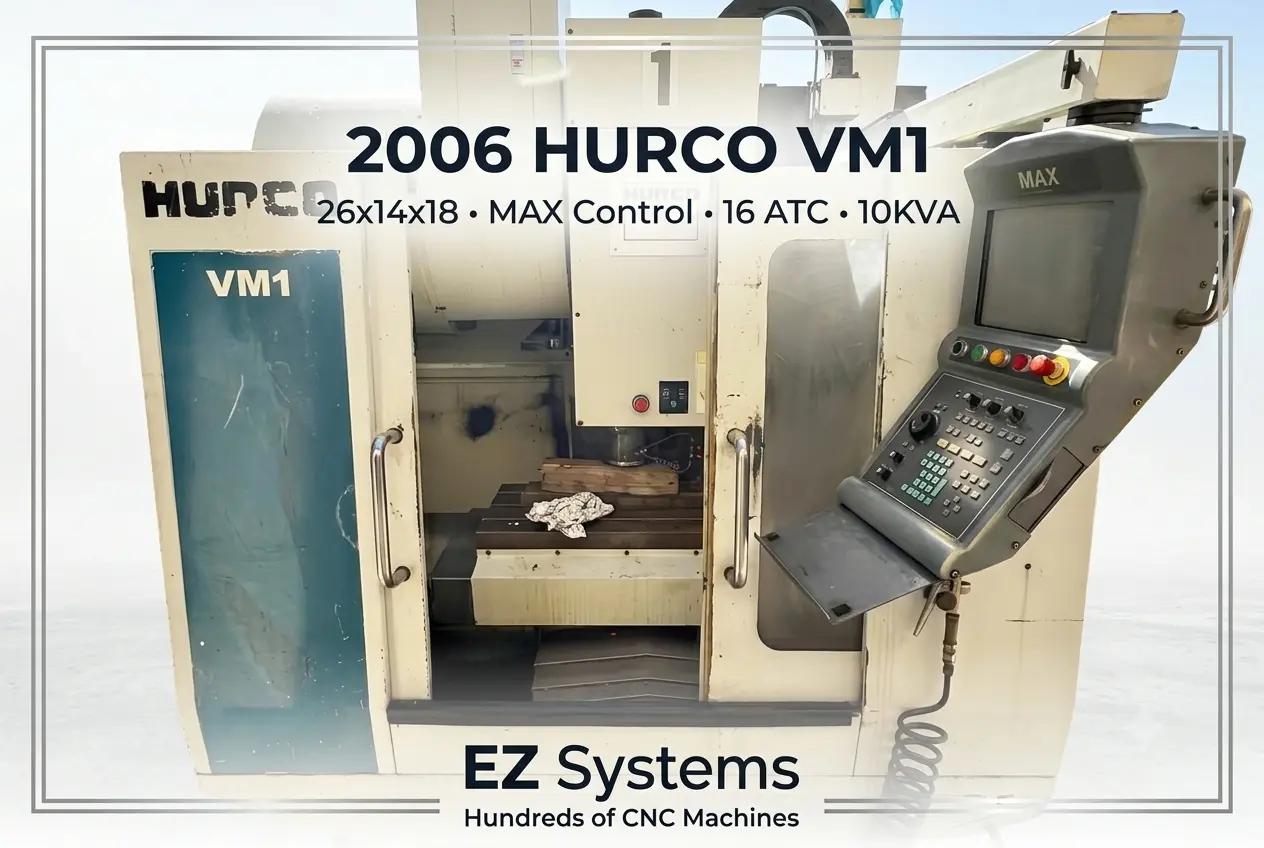

2006 Hurco VM1 CNC Vertical Machining Center 26x14x18 MAX Control 16 ATC 10KVA

Title: 2006 Hurco VM1 CNC Vertical Machining Center MAX Control 16 ATC 10KVA
Brand: Hurco
Model: VM1
Year: 2006
+
Specifications
Model No: VM1 (Vertical Machining Center)
Serial No: VM1-06006013AE
Year of Manufacture: 2006
Voltage / Phase: 230V AC, 3-Phase
Frequency: 60 Hz
Full Load Capacity: 12 KVA
Largest Motor: 7.4 KVA
Interrupt Capacity: 10,000 Amps
Wiring Diagram No: 704-0222-381
Country of Origin: Taiwan
Compliance: CE mark
Manufacturing Number (MFG. NO.): H-410137
Exact Date of Manufacture: January 22, 2006
Control Type: Single-screen MAX Control
Tool Changer Type: Carousel / Umbrella Style ATC
Tool Changer Capacity: 16-station
Spindle Taper: CAT 40
Travels and Table Capacity
X-Axis Travel: 26" (660 mm)
Y-Axis Travel: 14" (356 mm)
Z-Axis Travel: 18" (456 mm)
Table Size: Typically 30" x 14"
Maximum Table Weight: 1,200 to 1,500 lbs
Spindle Specifications
Max Spindle Speed: 8,000 RPM
Spindle Motor: 10 HP peak (some variants configured with 15 HP)
Spindle Taper: CAT 40 (BT40 also common depending on market)
Tool Changer (ATC)
Capacity: 16 tools
Type: Swing arm / Dual arm
Controls and Capabilities
Controller: Hurco UltiMax (Dual-screen or Touchscreen)
Programming: Conversational and standard NC/G-code
Description

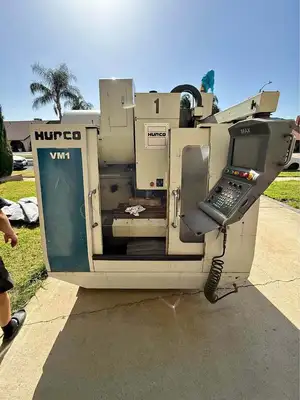

This 2006 Hurco VM1 Vertical Machining Center delivers robust conversational machining capability in a highly compact footprint. Built in January 2006, this machine features the popular single-screen Hurco MAX console, celebrated for its intuitive, user-friendly operation on short-run and quick-turn shop work. This unmolested unit maintains its original factory paint and exhibits straight, clean telescopic way covers without major gouges or signs of heavy, multi-shift production abuse.
+
Key Features & Benefits
Equipped with a 16-station carousel-style ATC and a standard CAT 40 spindle taper, this machine maximizes efficiency without sacrificing space. Its swing-out console design optimizes valuable shop real estate, making it an ideal choice for compact commercial facilities, prototyping environments, or job shops looking to maximize their throughput with a dependable, conversational machining centerpiece.
--- COMPARABLE MAKES & MODELS --- * Haas VF-1 / Haas VF-2 * Haas Mini Mill / Super Mini Mill * Fadal VMC 15XT / Fadal VMC 3016 * Milltronics VM16 / Milltronics Partner * Mazak Vertical Center Nexus 410A * Hurco VM10 / VM10i (Successor Models) * Southwestern Industries Trak VMC
+
Dimensions & Weight
Physical Footprint: 75" W x 65" D x 98" H
Weight: Approximately 8,300 lbs
Shipping & Location Details
This machine is offered FOB Highland, CA. Buyer is responsible for all applicable freight and rigging expenses.
+
