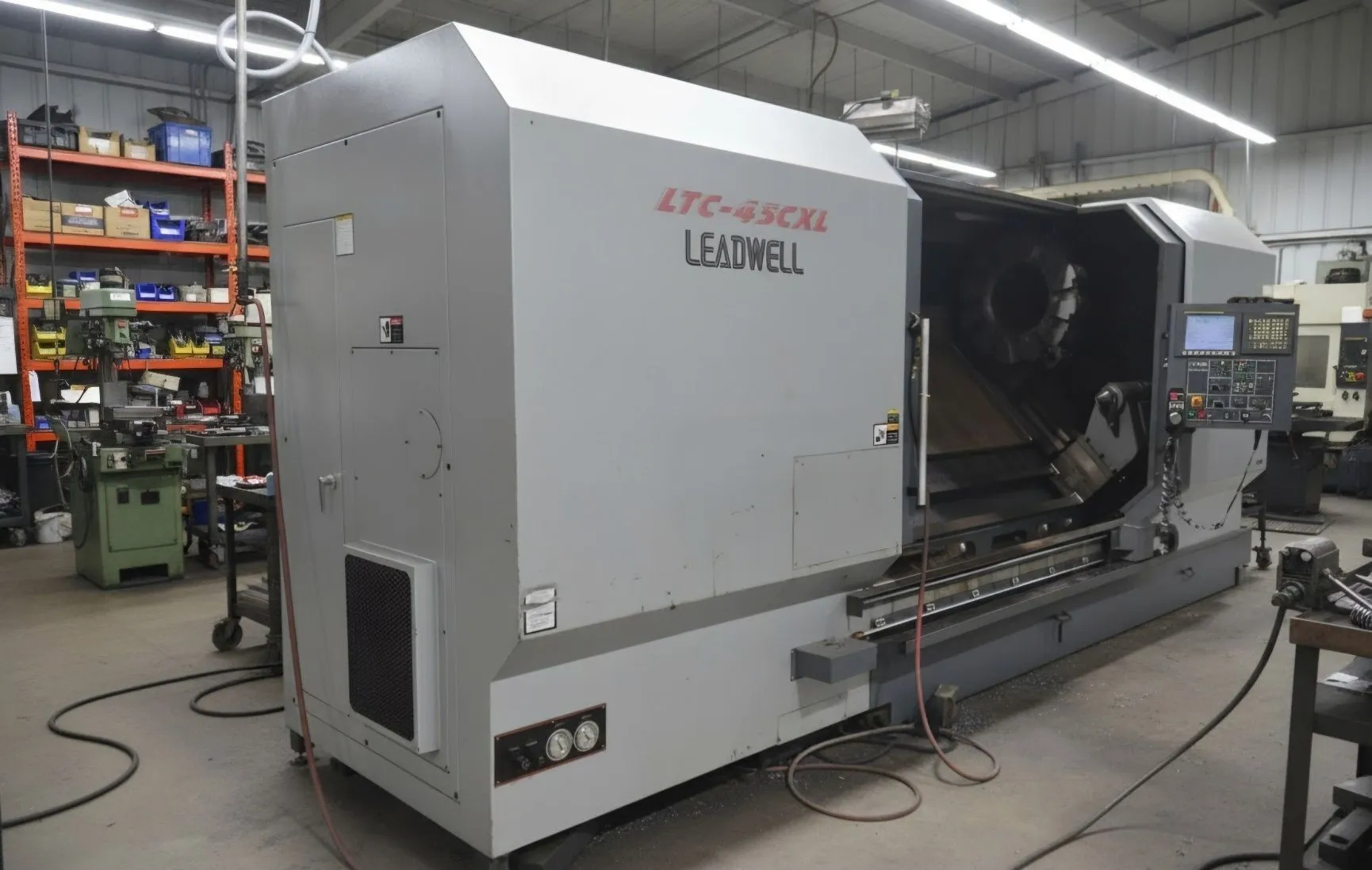

USED LEADWELL LTC-45 CXL

Leadwell Model LTC 45CXL CNC Slant Bed Turning Center
Swing Over Bed: 29.1"
Swing Over Cross Slide: 27.5"
Max Turning Diameter: 25.6"
X-Axis Travel: 12.5"
Z Axis Travel: 83.0"
Max. Turning Length: 79.9"
X-Axis Feedrate: 590 IPM
Z-Axis Feedrate: 787 IPM
Spindle Bore: 5.0"
Bar Capacity: 4.5"
Turret Positions: 12
Spindle Nose: A2-11
Spindle Speeds: 2,000 RPM
Main Motor Drive: 50 HP
Equipped with:
Fanuc 0iTD CNC Control
15" 3-Jaw Power Chuck
45 Degree Slant Bed Construction
Chip Conveyor and Bucket
Programmable Tailstock Body
Flood Coolant Unit
Rigid Box Way Construction
