USED 2015 TSUGAMI G18-II
Overview

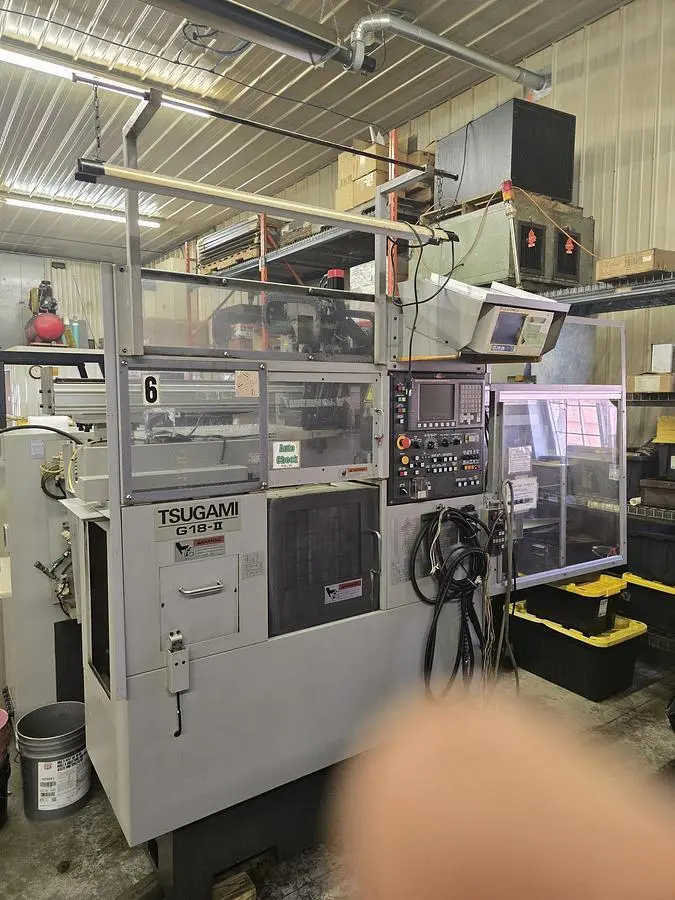

Tsugami G18-II CNC Cylindrical Grinder (2015), 2-axis, high-precision CNC cylindrical grinding machine engineered for tight-tolerance Outer Diameter (OD) production. It features a rigid dynamic bearing spindle and highly stable V-flat slide guideways to ensure accurate, consistent performance in high-volume environments.
Specs
Tsugami G18-II CNC Cylindrical Grinder (2015)
Maximum Swing (Diameter): 7.08 in / 180 mm
Distance Between Centers: 9.84 in / 250 mm
Maximum Grindable Diameter: 1.96 in / 50 mm
Maximum Weight Capacity (Between Centers): 44 lbs / 20 kg
Grinding Wheel & Spindle
Grinding Wheel Dimensions (OD x Width x ID): 14" x 2.75" x 5" / 355 mm x 50 mm x 127 mm
Wheel Surface Speed: 147 FPS / 2,700 m/min
Wheel Spindle Motor: 5 HP / 2.2 kW
Workhead Spindle Speed: 50 to 1,400 RPM
Travel & Feed Rates
Wheelhead Travel Distance: 2.75 in / 70 mm
Tailstock Stroke: 1.18 in / 30 mm
Rapid Traverse Rate (X / Z): 315 / 630 IPM (8 / 16 m/min)
Physical & Control Specs

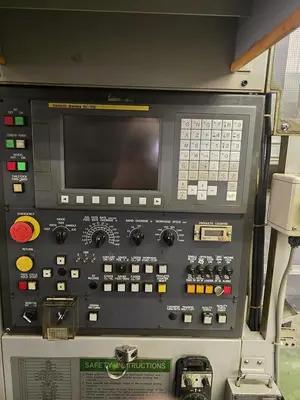

CNC Control Unit: Fanuc Series 0i-TDApproximate
Machine Weight: 4,850 lbs / 2,000 kg
Machine Footprint (W x D): 57.5" x 82.1" / 1,460 mm x 2,085 mm
Current Electrics 220-208 V, 3 Phase
Equipped With
Fanuc series Oi-TD
Tail Stock
Dresser
Accretech in process sizing

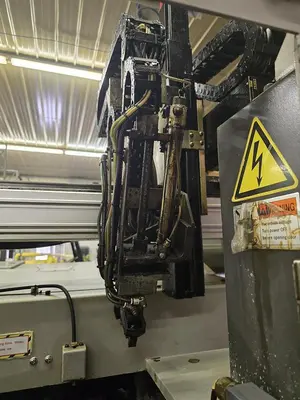

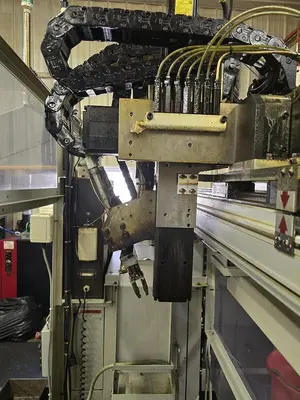

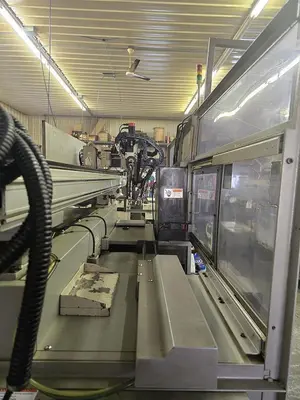

Overhead auto loader gantry
Auto gaging
Coolant Chiller
Coolant Tank & Filter Separator
