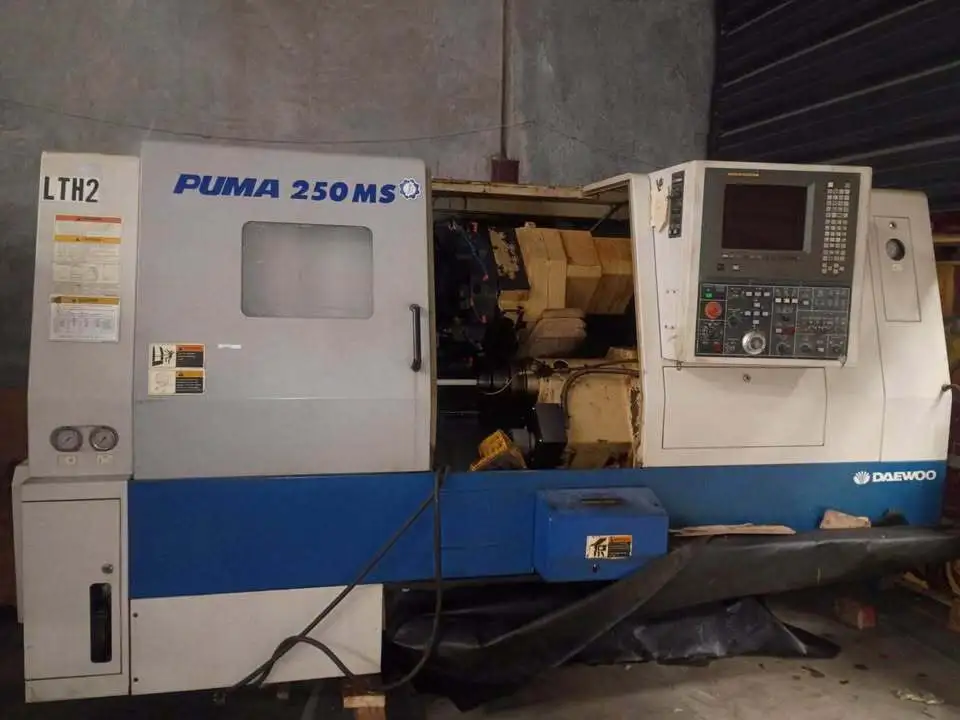

USED 1998 DAEWOO PUMA 250MSB

Specification Daewoo Puma 250MSB
Chuck Size 10 in (254 mm)
Maximum Swing Over Bed 22.4 in (569 mm)
Maximum Turning Diameter 14.0 in (355 mm)
Maximum Turning Length 25.6-26.8 in (650-680 mm)
X-Axis Travel 11.0 in (280 mm)
Z-Axis Travel 26.8 in (680 mm)
Main Spindle Nose A2-8
Main Spindle Bore 3.54 in (90 mm)
Bar Capacity 3.03 in (77 mm)
Main Spindle Speed 3,500 RPM
Main Spindle Motor 30 HP (22 kW)
Sub-Spindle Speed 4,500 RPM
Sub-Spindle Motor 10 HP (7.5 kW)
Live Tool Speed 4,000 RPM
Live Tool Motor 7.5 HP (5.5 kW)
Turret 12-station servo turret
C-Axis Standard
Live Tooling Standard
Rapid Traverse X: 745 IPM, Z: 945 IPM
Machine Weight Approximately 12,800 lb (5,800 kg)
Footprint Approximately 142 × 69 × 71 in (3.6 × 1.75 × 1.8 m)
