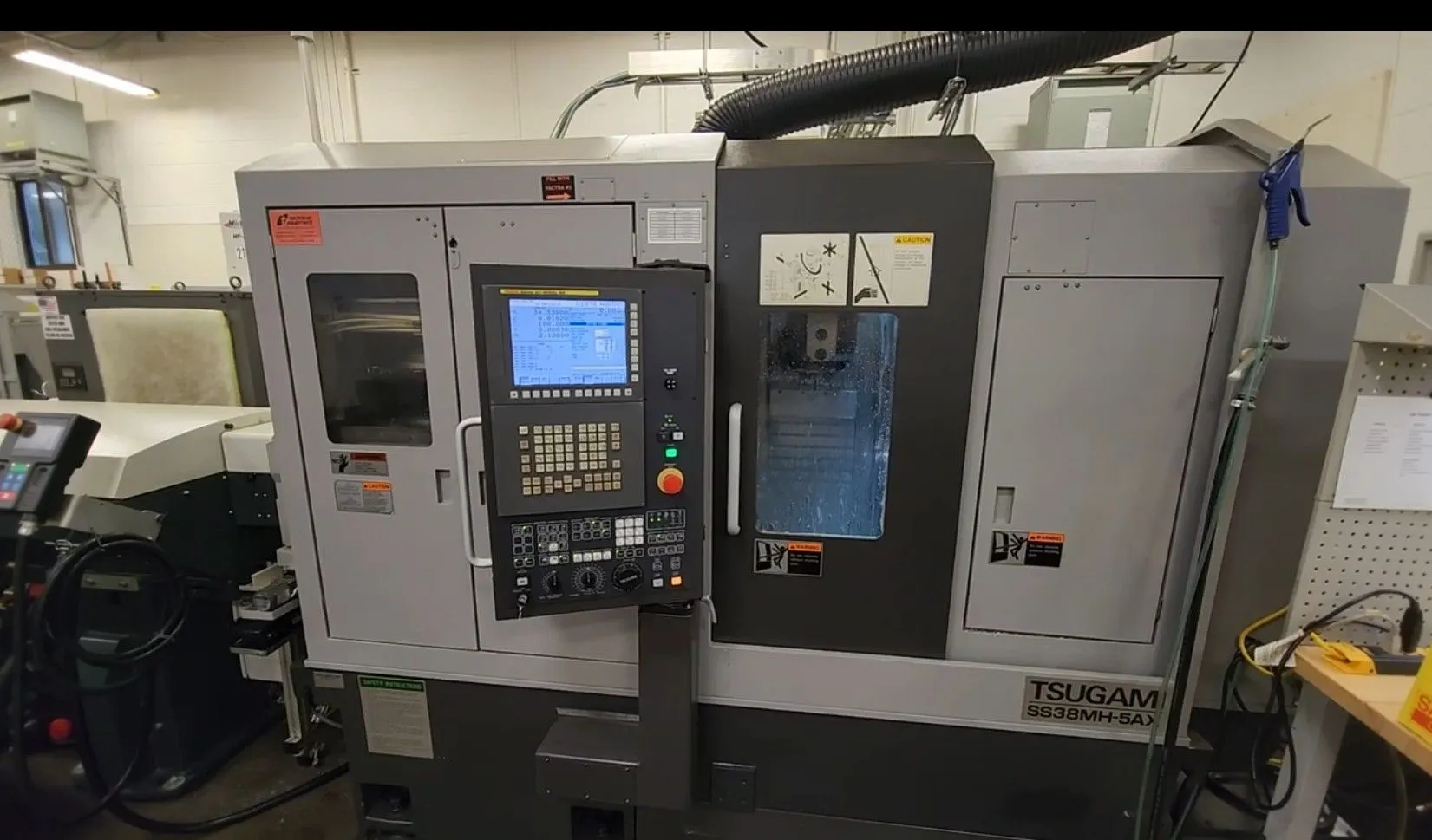

USED 2019 TSUGAMI SS38MH-5AX

TSUGAMI SS38MH-5AX CNC Multifunction Lathe, New in 2019

General Specifications from OEM Brochure:
Number of Axes: 8
Machining diameter: 1.5" / 38 mm
Machining length: 3.9" / 100 mm (Chucker Mode)
-1.5" / 300 mm (Direct-drive guide bushing)
Main spindle drilling diameter: .63" / 16 mm
Back spindle drilling diameter: .5" / 12 mm
Main spindle tapping diameter: M12
Back spindle tapping diameter: M12
Tool spindle drilling diameter: .5" / 12 mm
Tool spindle tapping diameter: M12
Back tool post drilling diameter: .4" / 10 mm
Back tool post tapping diameter: M8
Back tool spindle drilling diameter: .3" / 8 mm
Back tool spindle tapping diameter: M6
Main/Back spindle speed: 200 to 7,000 rpm
Tool spindle speed: 200 to 20,000 rpm
Least increment of B-axis index angle: 0.001 (continuous)
B-axis index angle: -15° to 195°
Main spindle/back spindle index angle: 0.001 (continuous)
Back tool post (modular type live tool) Max speed: 6,000 rpm
Back tool post (fixed tool): 25 mm/5 tools
Tool storage capacity: 40 Tools
Tool interface: CAPTO C4
Rapid traverse rate: 32 m/min
Main/Back spindle motor: 7.5/5 Hp (5.5/3.7 kW)
Tool spindle motor: 15/7.5 Hp (11/5.5 kW)
X1 motor: 3.6 Hp (2.7 kW)
Y1, X2, Z2 motor: 3.5 Hp (2.5 kW)
Z1 motor: 4 Hp (3.0 kW)
Back rotary tool motor: 1.4 Hp (1.0 kW)
Y2 axis, Tool magazine, ATC, Transfer motor: 0.7 Hp (0.5 kW)
A1 motor: 1 Hp (0.75 kW)
Coolant tank capacity: 180 L
Compressed air requirement: 0.4 MPa or above
Air discharge rate: 280 NL/min

Machine Dimensions: 116" x 77" x 85"
Machine Weight: 15,652 lbs

Fanuc 31i-B5 CNC Control
LNS Alpha 538 Magazine Barfeed
Parts Conveyor
Parts Catcher
MP Systems High Pressure Coolant System
All Tooling Shown - Including Cart
