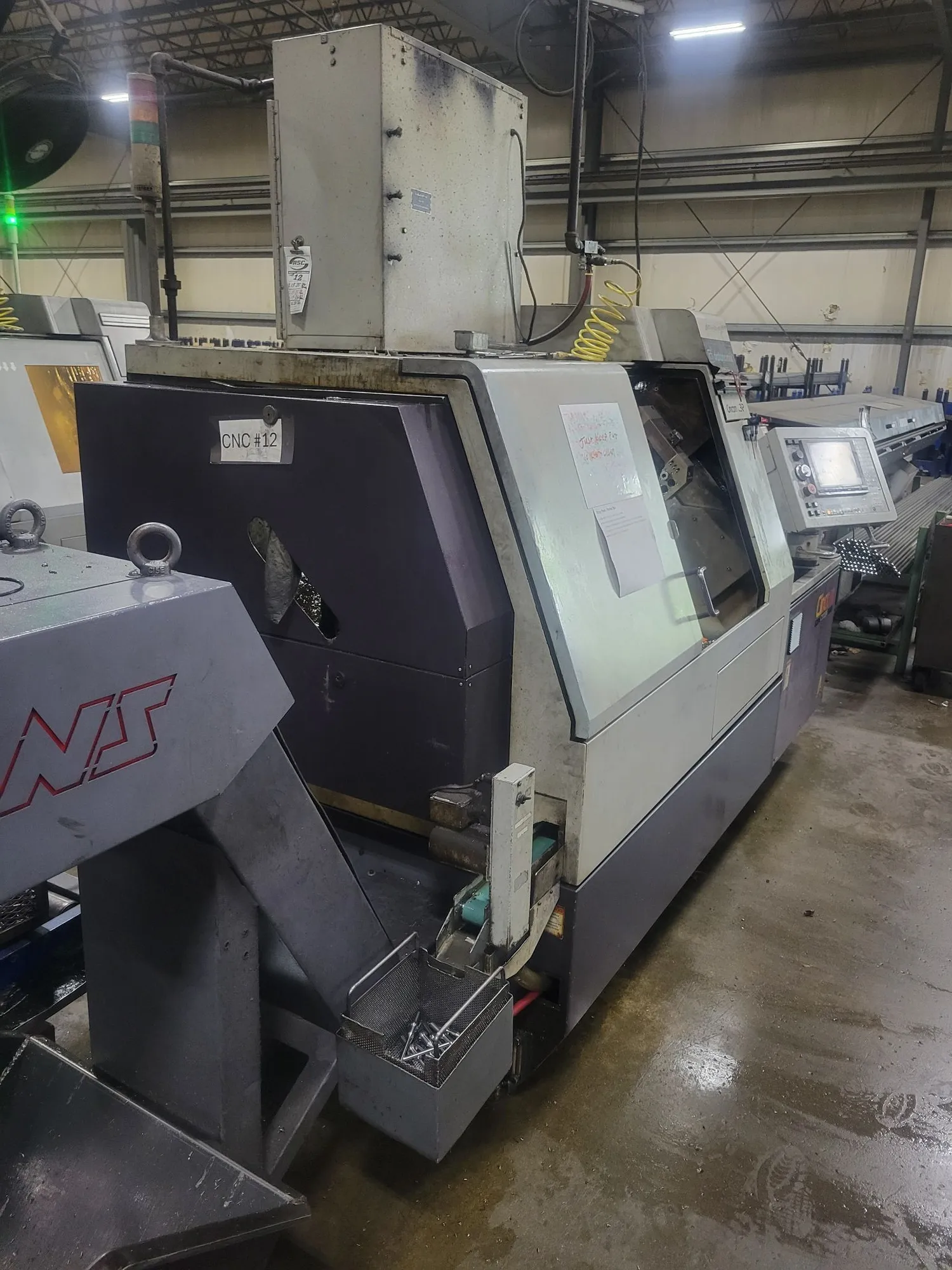

USED 2003 CITIZEN L32VII

General Specifications
Controllable Axes: X1, X2, X3, Y1, Z1, Z3, C1
Machining Diameter: 1.25"
Machining Length: 12.5 Per Chucking
Front Drilling Diameter: .47"
Front Tapping Diameter (w/ Tap & Die): M10
Spindle Through-Hole Diameter: 1.41"
Main Spindle Speed: 8,000 RPM
Rotary Tool Spindle Speed: 4,500 RPM
Chuck Diameter of the Sub-Spindle: 1.25"
Workpiece Length for the Front Side Collection from the Sub-Spindle: 5.9"
Sub-Spindle Speed: 7,000 RPM

Number of Tools: 20
Turning Tools on the Gang: 5
Rotary Tools on the Gang Post: 4
Tools for Front Drilling on the Gang Post: 3
Tools for Back Drilling on the Gang Post: 3
Tools for Back Drilling on Independent Tool Block: 5

Tool Size
Gang Tool Post (Tool): .63" x .63" x 5.11"
Gang Tool Post (Sleeve): 1"
Back Tool Post (Sleeve): 1"

Rapid Feed Rate
X1. Y1, Z1, X3, Z3: 787 IPM

Motors
Main Spindle: 7.3 HP
Sub-Spindle: 2.9 HP
Tool Spindle: 1.34 HP
