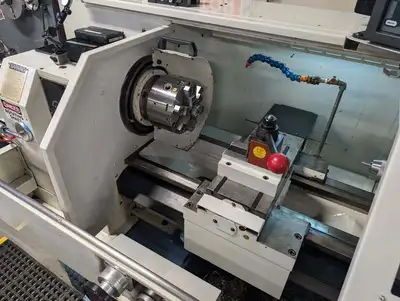

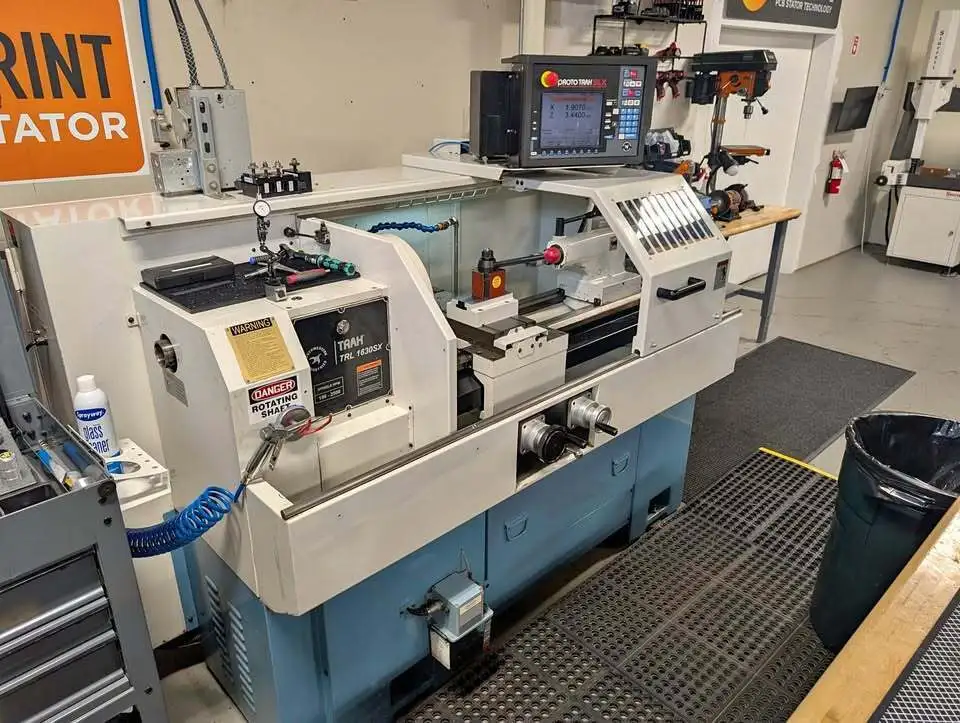

USED 2007 SOUTHWESTERN INDUSTRIES TRAK TRL 1630SX

Southwest Industries Trak TRL 1630SX CNC Lathe (2007)

Swing Over Bed: 16"
Swing Over Saddle Wings: 16"
Swing Over Cross Slide: 8.6"
Distance Between Centers: 30"
Spindle Through Hole (Bore): 2.12"
Spindle Nose: D1-6Spindle Taper: MT#6
Spindle Motor: 7.5 HP
Spindle Speed Range: 150 – 2,500 RPM (fully variable)

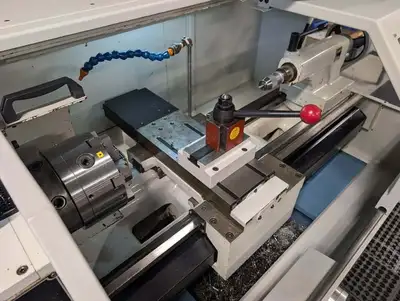

Carriage, Bed, and Tailstock
Cross Slide Travel: 8.5"
Max Tool Section: 3/4"
Bed Width and Height: 12.6" x 12.6"

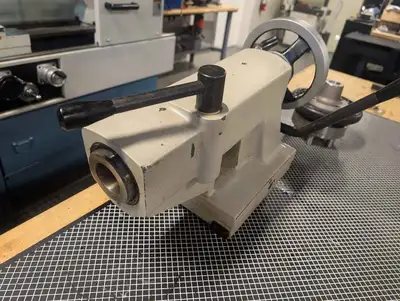

Tailstock Quill Diameter: 2.36"
Tailstock Quill Travel: 5" Tailstock Quill Taper Hole: MT#4
Coolant Tank Capacity: 8 gallons
Dimensions and Power Requirements
Electrical Requirements (Machine): 220V, 3-Phase, 60Hz
Full Load Amperage (FLA): 25 Amps
Electrical Requirements (Control): 110V, 1-Phase, 8 Amps
Approximate Shipping Weight: 3,420 lbs to 3,500 lbs
Approximate Footprint: 87" x 45" x 67"
