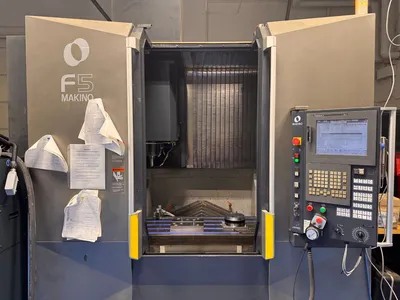

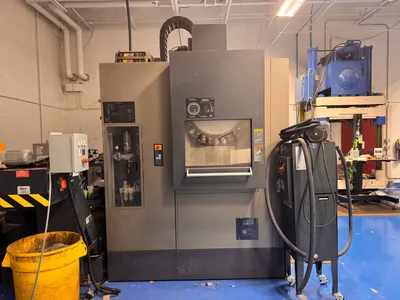

USED 2012 MAKINO F5
Overview

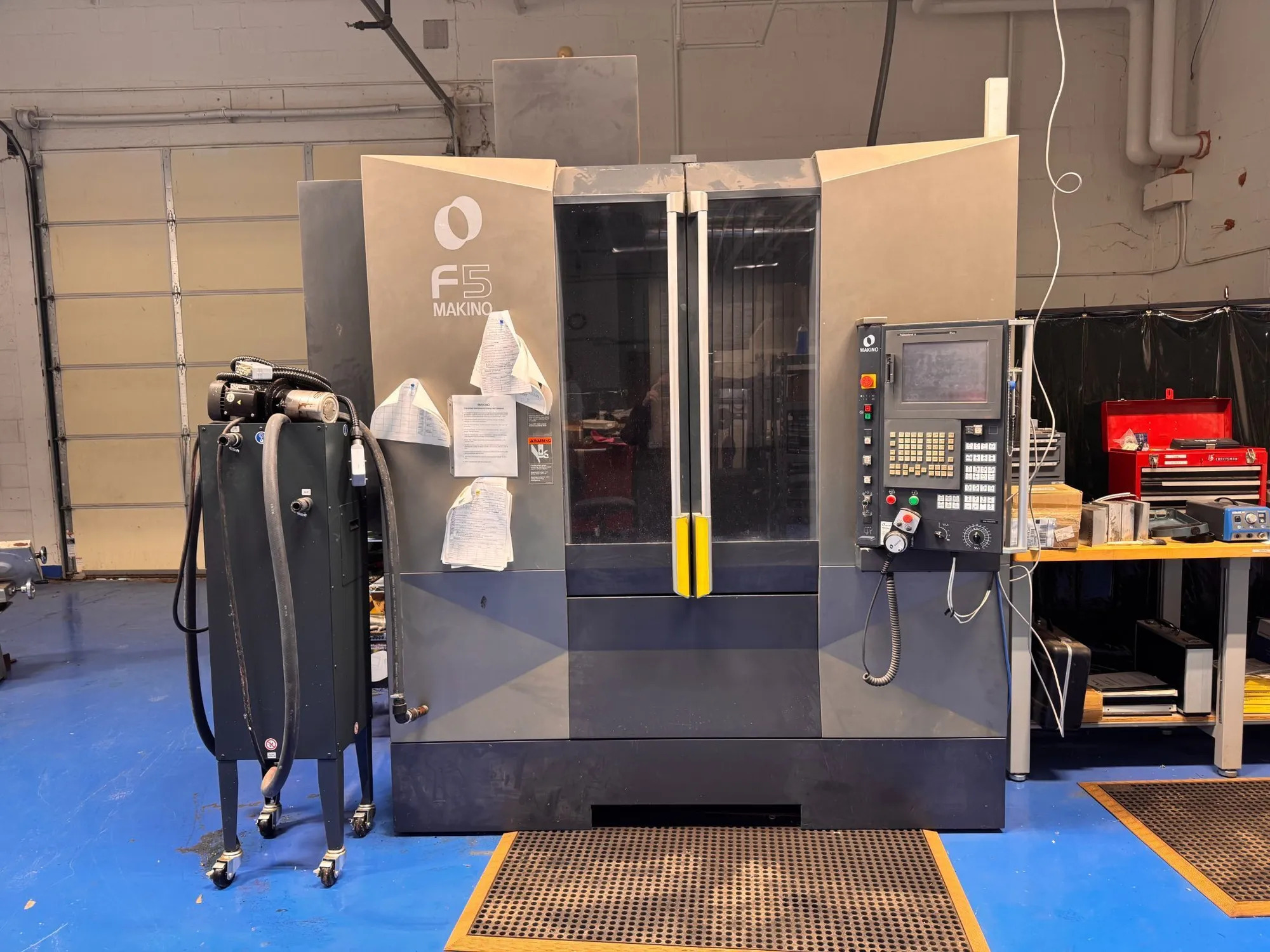

MAKINO F5 Vertical Machining Center, 2012 model, 3-axis, used. Specs: X: 35.4", Y: 19.7", Z: 17.7", RPM: 20000, 30 automatic tool changers, Table: 19.7"x39.4". Ideal for precision manufacturing needs.
Specs
Table Size: 39.37" x 19.69"
Spindle Speed: 20,000 RPM
Spindle Taper: HSK-A63
Spindle Motor: 20.1 HP Duty Rated / 14.8 HP Continuous
Max. Spindle Torque: 23.6 ft-lbs
Tool Capacity: 30 ATC
Tool Offsets: 64 Total
Additional Work Offsets: 48
Electrical: 60 Hz
Energized Time: 2,150 Hours
Operation Time: 652 Hours
Cutting Time: 529 Hours
Spindle Spin Time: 697 Hours
Equipped With

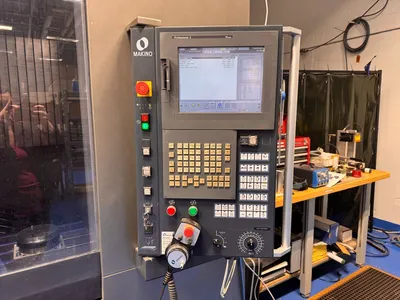

Makino Professional 5 Control

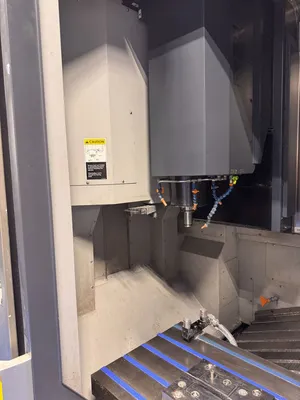

20,000 RPM HSK-A63 Spindle

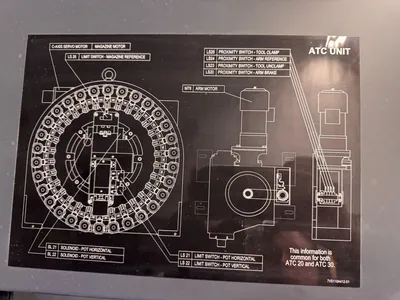

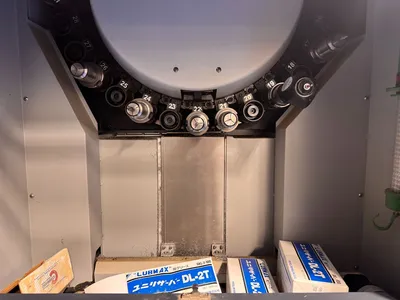

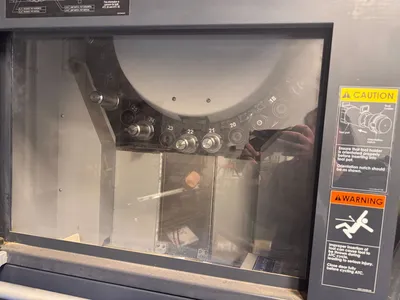

30-Tool ATC
Lift-Up Scraper Chip Conveyor, Left Discharge
Rear Coolant Tank with Chip Augers
Nozzle Coolant
Through Spindle Air
Automatic Air Blow
Scale Feedback for X, Y, and Z Axes
Rigid Tapping
Super GI.4 Control
Die-Mold Package
High Precision Specification
Centralized Auto Grease
Air Dryer
Fully Enclosed Splash Guard
Splashguard / ATC Door Interlock
Portable MPG
Signal Light
Fluorescent Work Light
Transformer

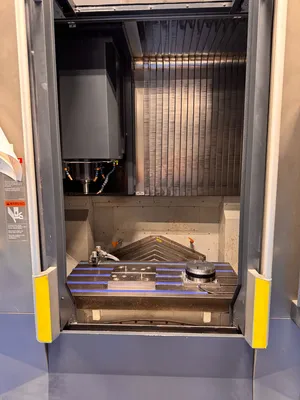

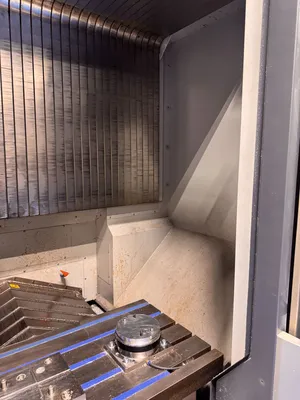

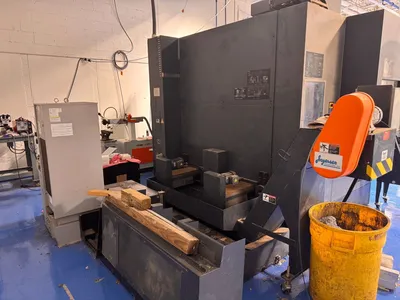

4th Axis Rotary Table / Fixture Shown in Photos
