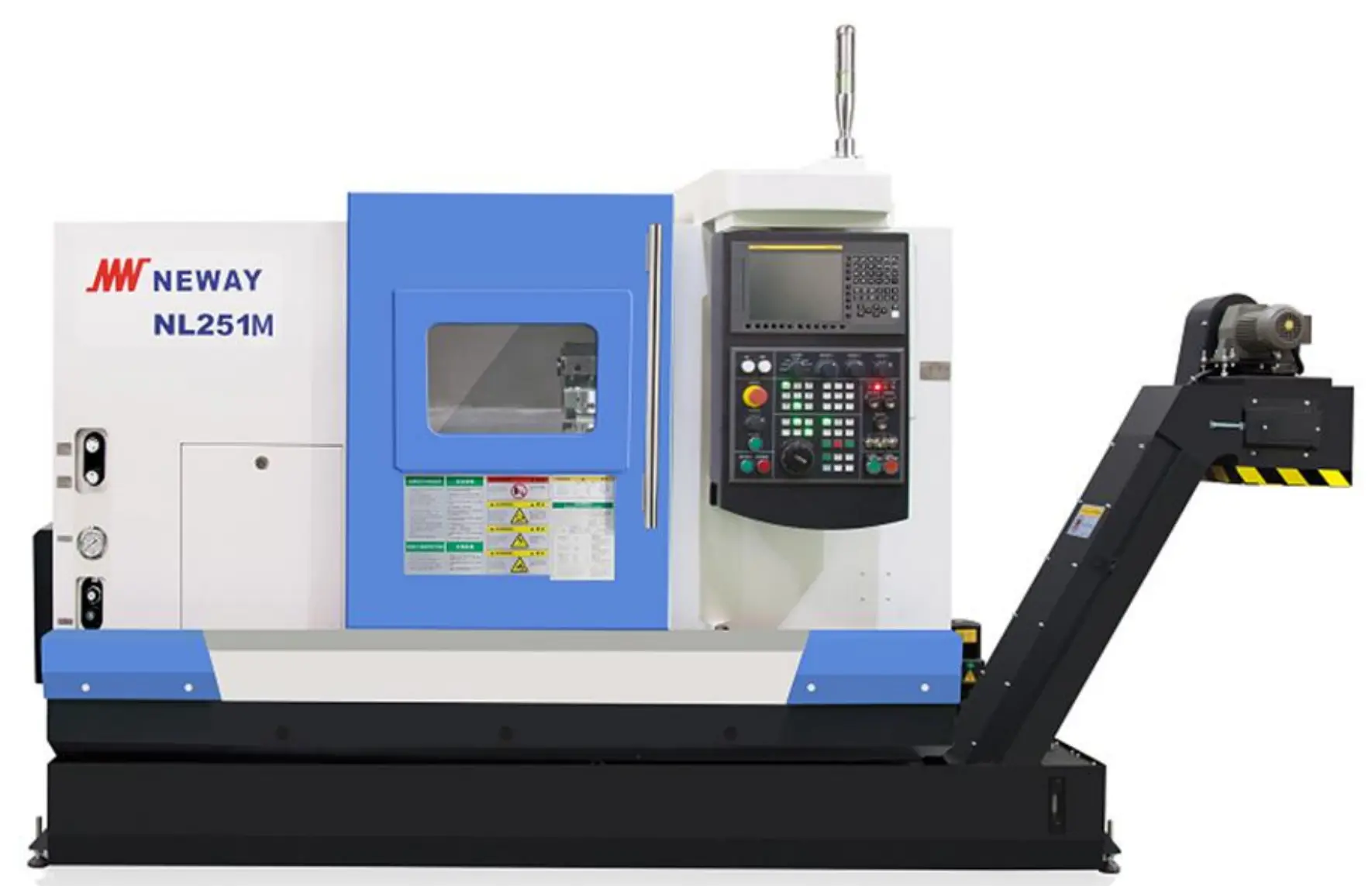

NEW NEWAY NL251M

Capacity
Max. over bed: 22’’ (550 mm)
Swing over saddle: 13’’ (330 mm)
Max. Turning Diameter: 14.2’’ (290 mm)
Max. Turning length: 10’’ (260 mm)
Bar Capacity: 2.6” (66 mm)
TRAVELS
X Axis: 7’’ (180 mm)
Z Axis: 13’’ (330 mm)
SPINDLE
Spindle Nose: A2-6
Chuck diameter: 8” hollow hydraulic chuck
Spindle Motor Power: 15 KW (S3) / 20 HP
Spindle Speed: 4,000 RPM
TURRET
Type: BMT55
Tool Stations – 12 tools
Tool-tool indexing time: 0.5 sec
Tool Size (turning tool): 1”
Tool Size (boring tool):  1.5”
Max. Live Tooling Speed: 6,000 rpm
